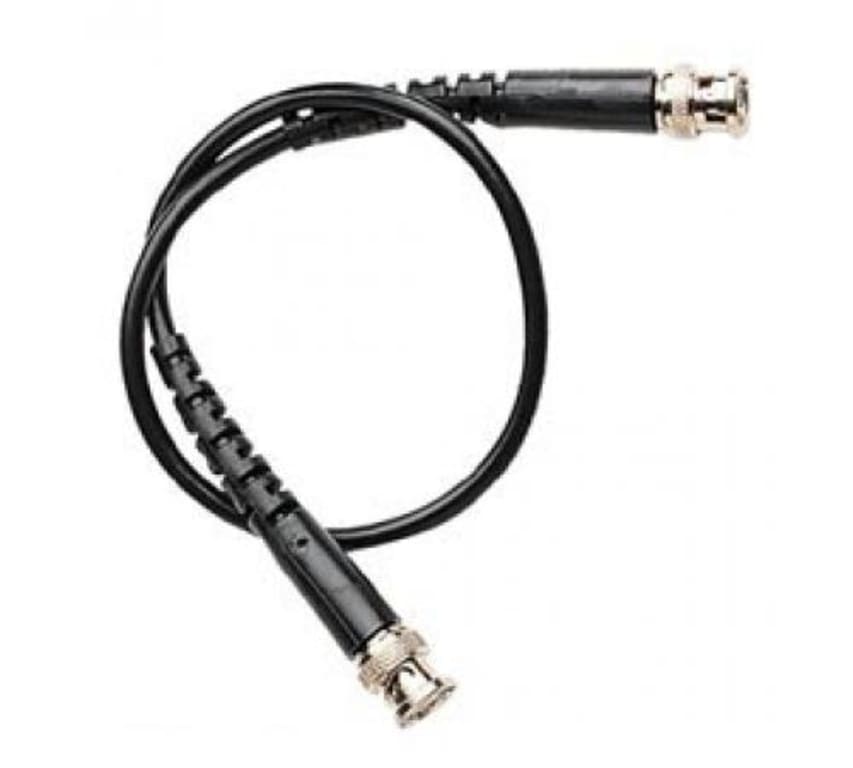

Pomona 4964-SS-36 - BNC (M) On Low Noise Cable With Strain Relief, 36"

Name: Pomona 4964-SS-36 - BNC (M) On Low Noise Cable With Strain Relief, 36"
Brand: Pomona
SKU: Pomona4964-SS-36
Price: 26.17 USD
Availability: InStock

0 reviews | UPC: 095969170215 | Model: Pomona 4964-SS-36

Compare

BNC (M) On Low Noise Cable With Strain Relief, 36"

Uses a special low-triboelectric cable which has noise attenuating layers surrounding the center conductor.
The cable is ideal for low power, low frequency measurements.
Cable length: 36 inches

View Product Details

List Price: $33.99

Your Price: $26.17

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 4964-SS-36

Uses a special low-triboelectric cable that has noise attenuating layers surrounding the center conductor.
The cable is ideal for low power, low-frequency measurements.
Cable length: 36 inches

BNC (M) On Low Noise Cable With Strain Relief, 36"

Pomona 4964-SS-36 is a BNC (M) On Low Noise Cable With Strain Relief that has a length of 36 inches.

Materials
Body	Brass, Tarnish Resistant Plating, Center Contact: Gold Plated Brass
Dielectric	PTFE
Strain Relief	PVC molded directly to cable and connectors
Cable	22 AWG, stranding 7 x 30 t.c., PVC insulated, 4.95 (.195) O.D.
Marking	“Pomona 4964-SS”
Ratings
Voltage
Shield/Earth	30VAC/60VDC Max.
Inner Conductor/Shield	500VRMS Max.
Operating Temperature	+50ºC. (+122ºF.) Max.
Nominal Impedance	50 Ohms
Recommended Frequency Range	DC to 10KHz
