Pomona 4945-K-36 - BNC (M) To .025" Sq. Receptacles On RG174/U, 36"

Name: Pomona 4945-K-36 - BNC (M) To .025" Sq. Receptacles On RG174/U, 36"
Brand: Pomona
SKU: Pomona4945-K-36
Price: 71.98 USD
Availability: InStock

0 reviews | UPC: 095969169936 | Model: Pomona 4945-K-36

Compare

BNC (M) To .025" Sq. Receptacles On RG174/U, 36"-Note:Price is for 2 Units

BNC connector and breakout wires are molded directly to the cable for added pull strength
Alligators clip jaws open up to .187” (4,75mm)
Schematic: Black alligator to BNC shell, red alligator to BNC center contact.
BNC features PTFE dielectric and gold plated center contact for optimum electrical performance.
Length: 36 inches

View Product Details

Your Price: $71.98

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 4945-K-36

BNC connector and breakout wires are molded directly to the cable for added pull strength
Alligators clip jaws open up to .187” (4,75mm)
Schematic: Black alligator to BNC shell, red alligator to BNC center contact.
BNC features PTFE dielectric and gold-plated center contact for optimum electrical performance.
Length: 36 inches

BNC (M) To .025" Sq. Receptacles On RG174/U, 36"

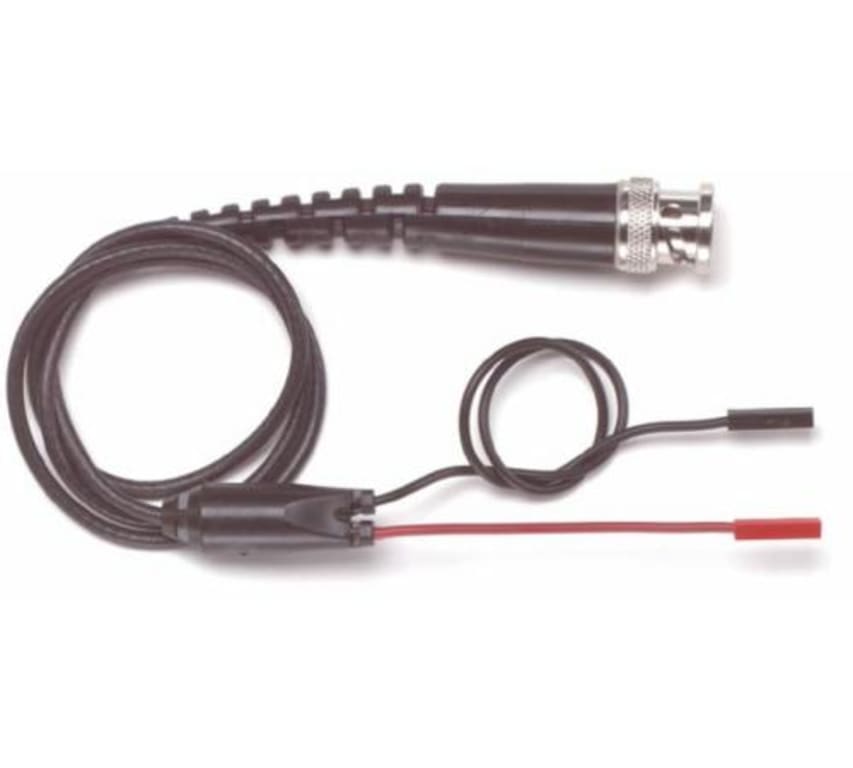

Pomona 4945-K-36 is a BNC (Male) With Molded Strain Relief To .025” (,64mm) Square Pin Receptacles On RG174/U. Cable length - 36 inches.

Materials
BNC	Body: Brass, Nickel Plated, Center Pin: Brass, Gold Plated, Impedance: 50 Ohms
Strain Relief and Molded Breakout	PVC, Color: Black
Receptacle	Body – Phosphor Bronze, Housing: Polypropylene, Color: One Black, One Red
Ratings
Voltage
Hand-held testing	30VAC/60VDC Max.
Hands free testing in controlled voltage environments	500VRMS Max.
Operating Temperature	50°C (+122°F) Max.
