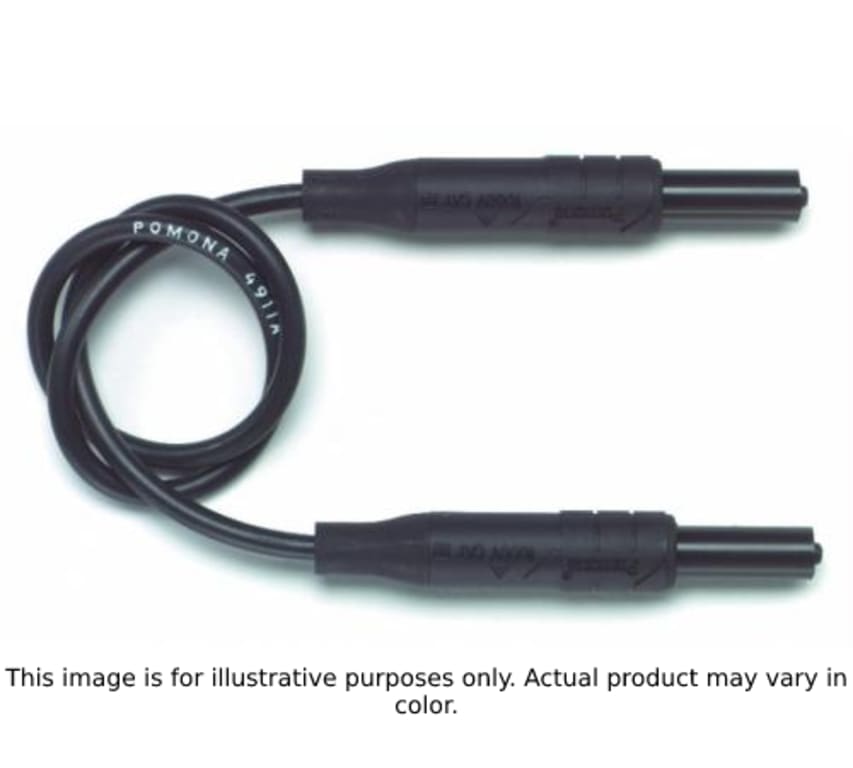

Pomona 4911A-24-2 - Retractable Sheath Banana Plug Patch Cord, 24", Red

Name: Pomona 4911A-24-2 - Retractable Sheath Banana Plug Patch Cord, 24", Red
Brand: Pomona
SKU: Pomona4911A-24-2
Price: 19.41 USD
Availability: InStock

0 reviews | UPC: 095969169363 | Model: Pomona 4911A-24-2

Compare

Retractable Sheath Banana Plug Patch Cord, 24", Red

Retractable sheath end allows interfacing to either standard sheathed or non-sheath style banana 1.66” (4mm) jacks.
Plug and housing are molded directly to the cable in an integral one piece design and the wire is double crimped for a long lasting connection.
Multi-leaf banana spring material is Beryllium Copper, nickel plated for extended insertion life cycle and low contact resistance.
Test leads can mate to a broad assortment of Pomona probes, alligators, spade lugs, etc.
Cable length - 24 inches
Color - Red

View Product Details

List Price: $19.99

Your Price: $19.41

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 4911A-24-2

Retractable sheath end allows interfacing to either standard sheathed or non-sheath style banana 1.66” (4mm) jacks.
Plug and housing are molded directly to the cable in an integral one-piece design, and the wire is double-crimped for a long-lasting connection.
Multi-leaf banana spring material is Beryllium Copper, nickel plated for extended insertion life cycle and low contact resistance.
Cable length - 24 inches
Color - Red

Retractable Sheath Banana Plug Patch Cord, 24", Red

Pomona 4911A-24-2 is a Retractable Sheath Banana Plug Patch Cord with a length of 24 inches and is Red in color.

Materials
Retractable Sheath Banana Plug
Plug Body	Brass, Nickel Plated
Banana Spring	Beryllium Copper, Nickel Plated
Compression Spring	Stainless Steel
Tip	Nylon, Color Matches Color of Wire
Insulation	Nylon Molded to the Plug and Wire. Color Matches Color or Wire.
Wire	18 AWG, Stranding 65 x 36 t.c., PVC Insulated, .144 (3,66mm) O.D.
Marking	"POMONA 4911A-XX-*".
Ratings
Operating Temperature	+55° C (+131° F) Max.
Operating Voltage	1000 Volts AC/DC Max.
Current	10 Amperes
