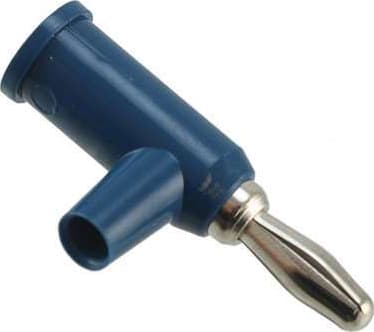

Pomona 4899-6 - Banana Plug, Solderless & High-Temp, 10/Pkg, Blue

Name: Pomona 4899-6 - Banana Plug, Solderless & High-Temp, 10/Pkg, Blue
Brand: Pomona
SKU: Pomona4899-6
Price: 33.99 USD
Availability: InStock

0 reviews | UPC: 095969169233 | Model: Pomona 4899-6

Compare

Banana Plug, Solderless & High-Temp, 10/Pkg, Blue

Designed to fit on the end of any 22 AWG to 18 AWG wire
Cross hole wire entry fits wires up to .12” (3mm) diameter.
Available with tarnish-resistant nickel or gold plating for very low contact resistance.
Model 4899 is rated for temperatures up to +302°F (+150°C).
Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver.
Fits standard panel and binding post banana jacks .161” to .166” (4,0mm to 4,2mm) diameter.
Color: Blue

View Product Details

List Price: $34.99

Your Price: $33.99

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 4899-6 Accessories

Choose a Category

Adapter Kits

for the Pomona 4899-6

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Pomona 4899-6

Designed to fit on the end of any 22 AWG to 18 AWG wire
Cross hole wire entry fits wires up to .12” (3mm) diameter.
Available with tarnish-resistant nickel or gold plating for very low contact resistance.
Model 4899 is rated for temperatures up to +302°F (+150°C).
Color: Blue

Banana Plug, Solderless & High-Temp, 10/Pkg, Blue

Pomona 4899-6 is a Standard Banana Plug, Solderless and Stackable, that can operate in High temperatures up to +302°F (+150°C). Color - Blue.

Materials
Banana Jack	Beryllium Copper, Gold Plated
Banana Plug	Body – Brass, Nickel Plated (Model 4897 Gold Plated)
Spring	Beryllium Copper, Nickel Plated (Model 4897 Gold Plated)
Insulation	ABS (Model 4899 Polyphenylene Sulfide), Marking “POMONA ELECTRONICS” & Part Number
Set Screw (8-32 Single Slot)	Steel, Zinc Plated
Ratings
Operating Voltage
Hand-held Testing	30VAC/60VDC Max.
Hand Free Testing in controlled Voltage Environment	5000 WVDC.
Current	15 Amperes Max.
Operating Temperature	+50°C (+122°F), Model 4899 +150°C (+302°F)
