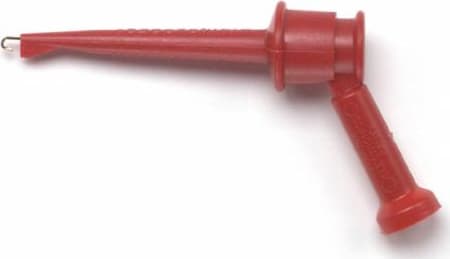

Pomona 4826-2 - Minigrabber® Test Clip With Pin Tip Jack, Red

Name: Pomona 4826-2 - Minigrabber® Test Clip With Pin Tip Jack, Red
Brand: Pomona
SKU: Pomona4826-2
Price: 12.61 USD
Availability: InStock

0 reviews | UPC: 095969208833 | Model: Pomona 4826-2

Compare

Minigrabber? Test Clip With Pin Tip Jack, Red

This Minigrabber® test clip has a pin jack built right into the plunger
Excellent for attaching the Grabber test clip directly to the end of a pin tip patch cord, or it can be used as an adapter for miniature test probes with 2.0 (.080) tips.
Color - Red

View Product Details

List Price: $12.99

Your Price: $12.61

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 4826-2

This Minigrabber® test clip has a pin jack built right into the plunger
Excellent for attaching the Grabber test clip directly to the end of a pin tip patch cord, or it can be used as an adapter for miniature test probes with 2.0 (.080) tips.
Color - Red

Minigrabber® Test Clip With Pin Tip Jack, Red

Pomona 4826-2 is a Minigrabber® Test Clip With Pin Tip Jack. Color - Red.

Materials
Contact	Beryllium Copper per QQ-C-533, Alloy 165.
Spring	Stainless steel, 302
Pin Tip Jack	Brass per QQ-B-626, Alloy 360, ½ Hard.
Pin Tip Jack Spring	Beryllium Copper, Berylco 25 per QQ-C-533, Cond. HT.
Finish
Contact	Gold plated per MIL-G-45204, Class 00
Pin Tip Jack	Gold plated per MIL-G-45204,Type II, Class 00 over electroless nickel per MIL-C-26074, Class 1, 200/300 microinches.
Insulation	Glass filled Nylon
Marking	“POMONA ELECTRONICS, CALIF.” “4826” “MINIGRABBER®”
Ratings
Operating Temperature	+102°C. (+216°F) Max.
Operating Voltage	30VAC/60VDC
Current	5 Amperes
