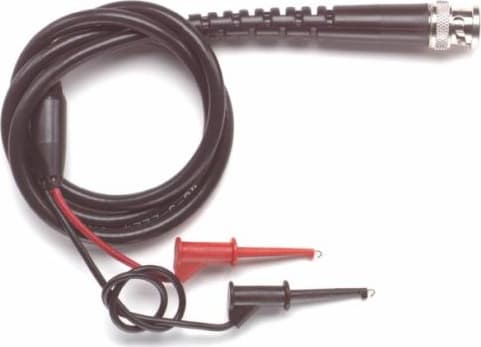

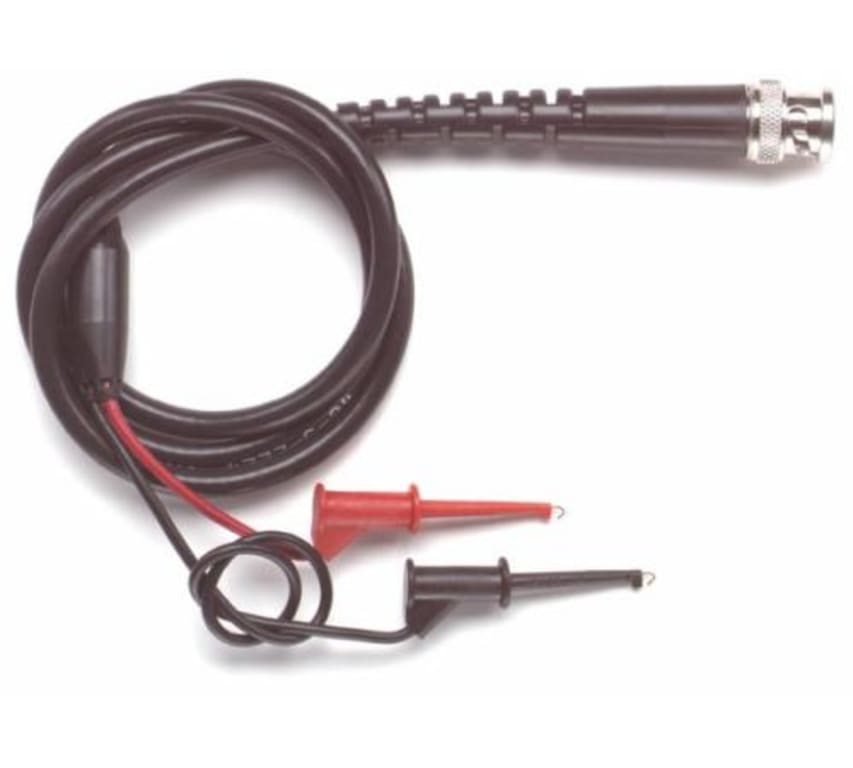

Pomona 4777-K-48 - BNC (M) To Micrograbber® Test Clips On RG174/U, 48"

Name: Pomona 4777-K-48 - BNC (M) To Micrograbber® Test Clips On RG174/U, 48"
Brand: Pomona
SKU: Pomona4777-K-48
Price: 50.50 USD
Availability: InStock

0 reviews | UPC: 095969175791 | Model: Pomona 4777-K-48

Compare

BNC (M) To Micrograbber? Test Clips On RG174/U, 48"

BNC, grabbers, and breakout wires are molded directly to the cable for added pull strength.
Micrograbber® Test Clip hook is gold-plated Beryllium Copper for durability and low contact resistance.
BNC connector features PTFE dielectric and gold-plated center contact for optimal electrical performance, and the BNC body is tarnish resistant.
Cable length - 48 inches

View Product Details

List Price: $51.99

Your Price: $50.50

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 4777-K-48

BNC, grabbers, and breakout wires are molded directly to the cable for added pull strength.
Micrograbber® Test Clip hook is gold-plated Beryllium Copper for durability and low contact resistance.
BNC connector features PTFE dielectric and gold-plated center contact for optimal electrical performance, and the BNC body is tarnish resistant.
Cable length - 48 inches

BNC (M) To Micrograbber® Test Clips On RG174/U, 48"

Pomona 4777-K-48 is a BNC (M) To Micrograbber® Test Clips On RG174/U with a cable length of 48 inches.

Materials
BNC (Male)	Body: Brass, Nickel Plated
Center Pin	Brass, Gold Plated
Dielectric	PTFE
Impedance	50 Ohms
Strain Relief and Molded Breakout	PVC, Color: Black
Breakout Wires	20 AWG Stranding 41 x 36 t. c., PVC Insulated, .087” (2,21 mm) O.D.
Color	One Black, One Red Marking: Pomona 3785-X-xx
Micrograbber	Contact, Beryllium Copper, Gold Plated
Spring	Stainless Steel
Insulation	Nylon 6 (Fire Retardant UL94V-0), Color Matches Wire Color
Ratings
Operating Voltage	150 VRMS/VAC Max
Operating Temperature	50°C (+122°F) Max.
