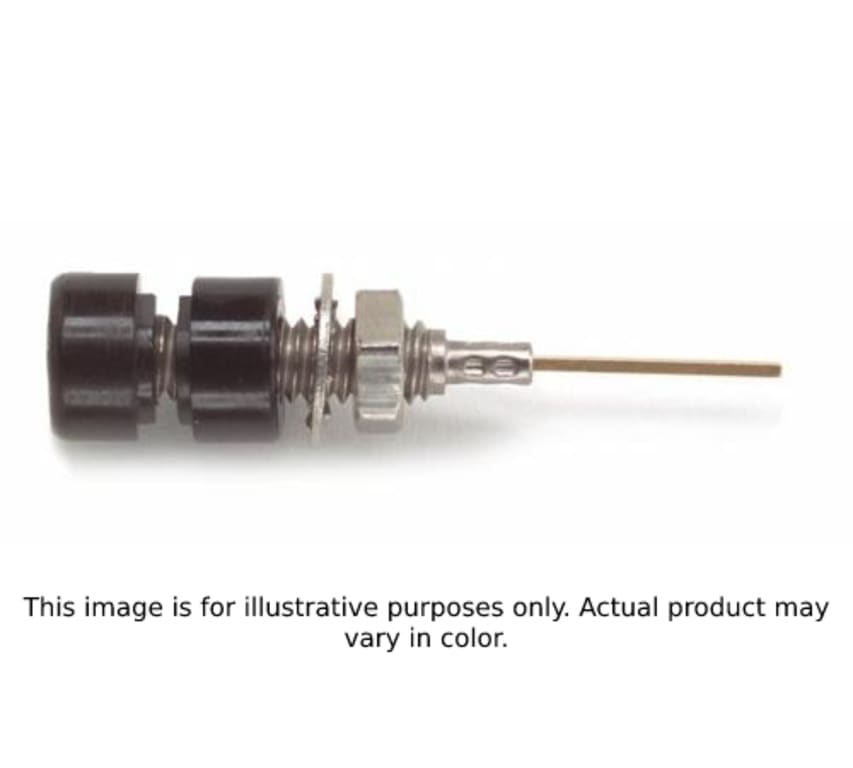

Pomona 4773-2 - Pin Tip Jack, Gold-Plated, Red

Name: Pomona 4773-2 - Pin Tip Jack, Gold-Plated, Red
Brand: Pomona
SKU: Pomona4773-2
Price: 6.11 USD
Availability: InStock

0 reviews | UPC: 095969175661 | Model: Pomona 4773-2

Compare

Pin Tip Jack, Gold-Plated, Red

View Product Details

List Price: $6.29

Your Price: $6.11

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

Materials
Pin Jack Insulation	Polycarbonate molded to Pin Jack Body.
Panel Insulator	Polycarbonate. Color matches color of Pin Jack insulation.
Lockwasher #8 Internal Tooth	Steel. Finish: Nickel plated per QQN-290, latest revision, Class 2, 200/300 microinches
Hex Nut #8-32	Brass. Finish: Nickel plated per QQN-290, latest revision, Class 2, 200/300 microinches.
Pin Jack Body	Nickel Plated Brass latest revision, Alloy 360, ½ Hard.
Spring	Gold Plated Beryllium Copper, Berylco 25 per QQC-533, latest revision, Cond. HT.
Finish	Body – Electroless nickel plated per MIL-C- 26074, latest revision, Class 2, 200/300 microinches.
Spring	Gold plated per MIL-G-45204, latest revision Type II, Class 00 over electroless nickel per MIL-C-26074, latest revision, Class 1, 200/300 microinches.
Wrapped Wire Terminal	Gold Plated Phosphor Bronze
Finish	Gold plated per MIL-G-45204, latest revision, Type II, Class 00 over electroless nickel per MIL-C-26074, latest revision, Class 1, 200/300 microinches.
Ratings
Operating Temperature	+115°C. (+239°F.) Max.
Operating Voltage	1500 VDC
Current	3 Amperes
