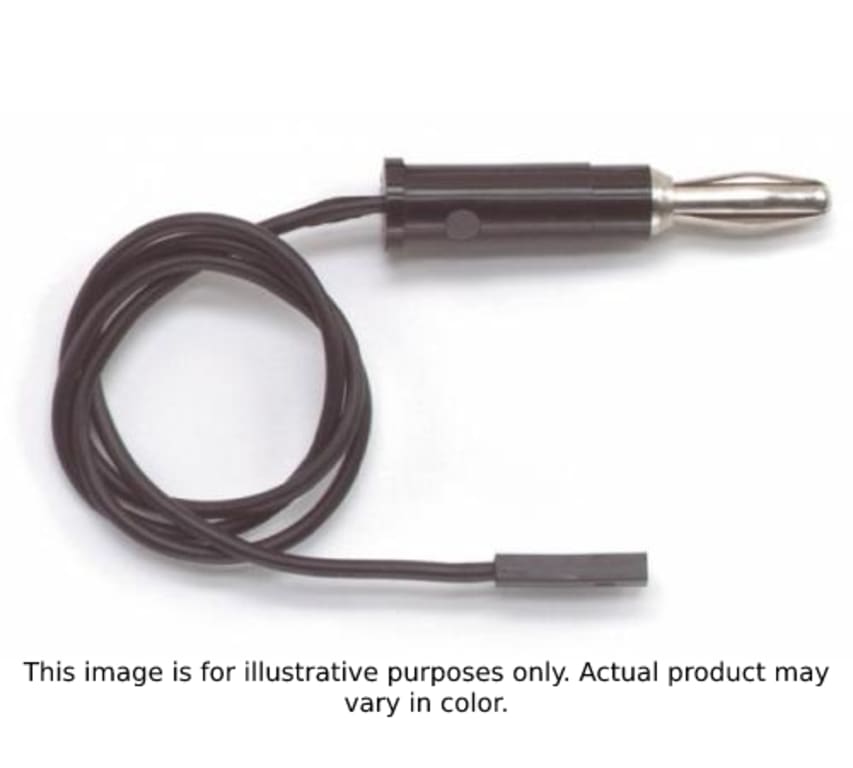

Pomona 4771-24-2 - Banana Plug To .025" Square Receptacle, 24", Red

Name: Pomona 4771-24-2 - Banana Plug To .025" Square Receptacle, 24", Red
Brand: Pomona
SKU: Pomona4771-24-2
Price: 11.64 USD
Availability: InStock

0 reviews | UPC: 095969175524 | Model: Pomona 4771-24-2

Compare

Banana Plug To .025" Square Receptacle, 24", Red

This patch cord is excellent for use as a jumper on circuit cards with 0.6 (.025) sq. pins and equipment with 4.2 (.166) dia. pin jacks.
Mates to Model numbers 5790, 4521, and 5360.
Cable length - 24 inches
Color - Red

View Product Details

List Price: $11.99

Your Price: $11.64

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 4771-24-2

This patch cord is excellent for use as a jumper on circuit cards with 0.6 (.025) sq. pins and equipment with 4.2 (.166) dia. pin jacks.
Mates to Model numbers 5790, 4521, and 5360.
Cable length - 24 inches
Color - Red

Banana Plug To .025" Square Receptacle, 24", Red

Pomona 4771-24-2 is a Banana Plug To a .025" Square Receptacle with a cable length of 24 inches and is Red in color.

Materials
Conn.	In-Line Banana Plug
Material	Spring – Beryllium Copper per QQ-C-533, Alloy 172, Cond. HT. Plug Body – Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish	Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Insulation	Polypropylene molded to plug body and wire.
Color	Matches color of wire
Wire	22 AWG, stranding 26 x 36 T.C., PVC Insulated, 1.63 (.064) O.D.
Color	See Ordering Information
Marking	“POMONA 4771-XX”
Conn	0.64 (.025) Square Pin Receptacle
Material	Phosphor bronze.
Finish	Gold plated.
Housing Insulation	Polypropylene
Color	Matches color of wire.
Ratings
Operating Temperature	+50º C. (+122º F.) Max.
Operating Voltage	1000 VDC
Current	3 Amperes
