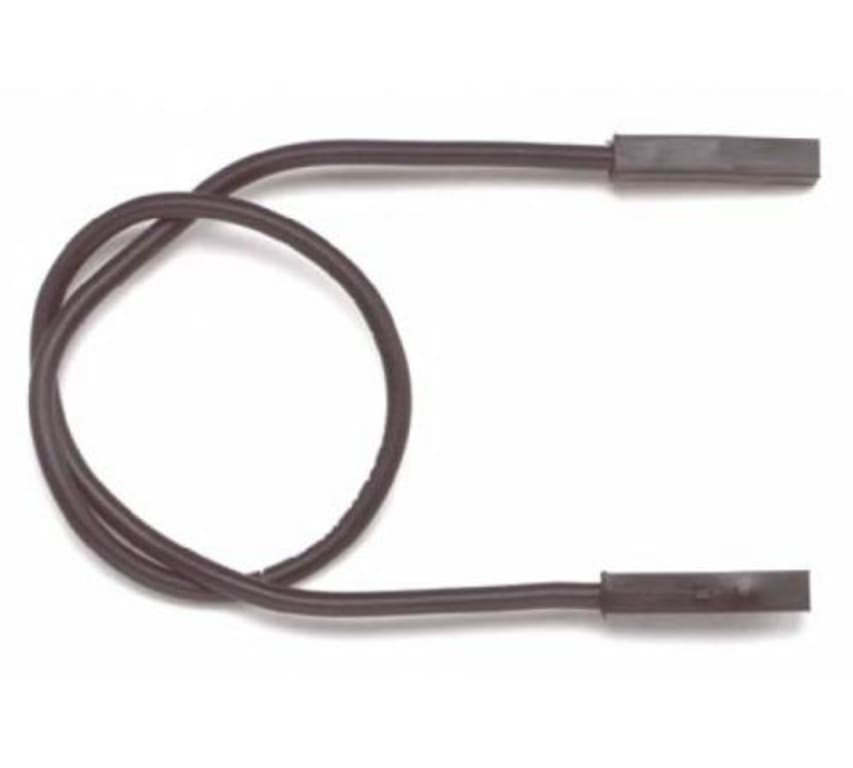

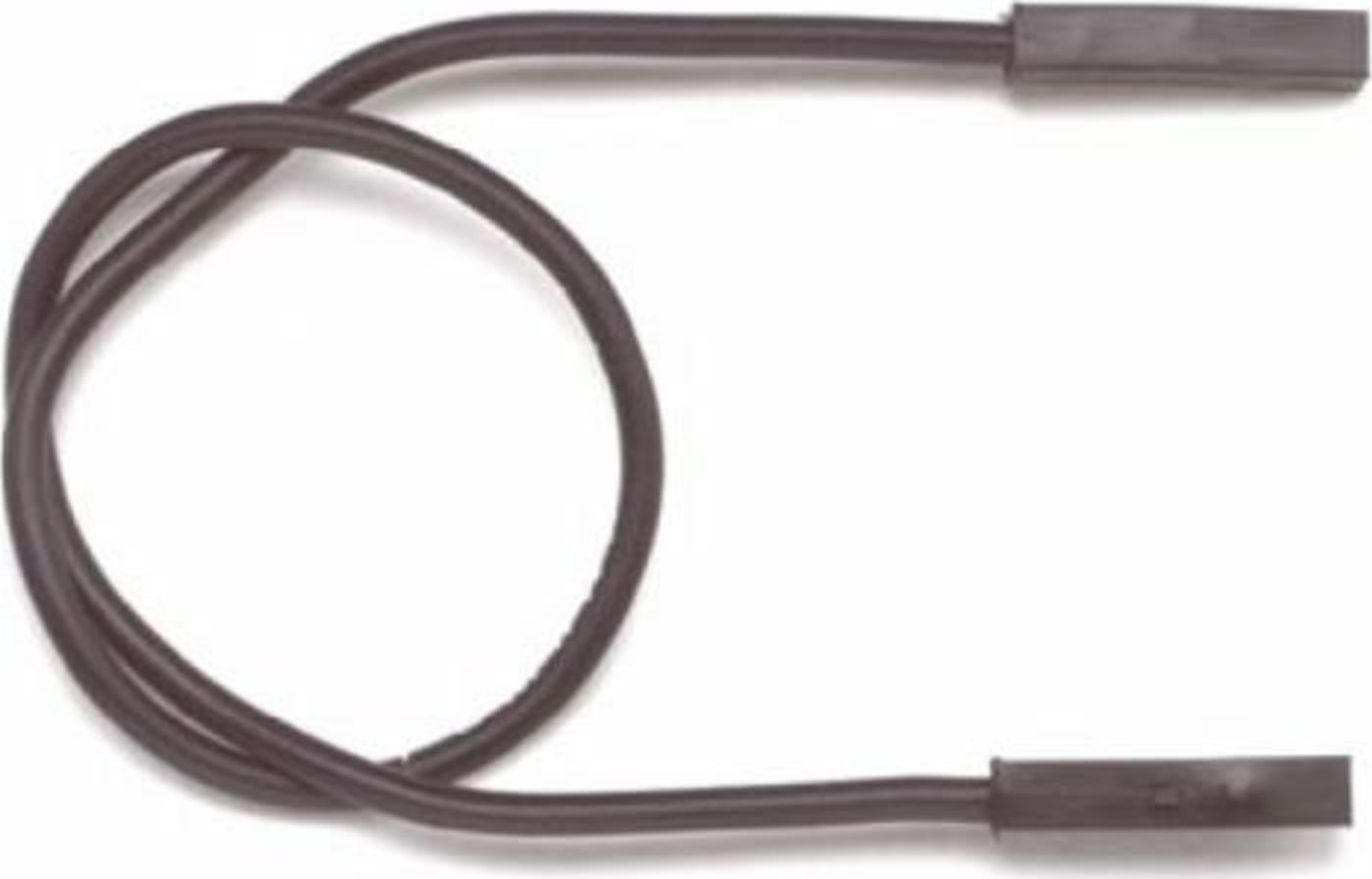

Pomona 4741-24-0 - .025” Square Pin Receptacle Patch Cord, 24", Black

Name: Pomona 4741-24-0 - .025” Square Pin Receptacle Patch Cord, 24", Black
Brand: Pomona
SKU: Pomona4741-24-0
Price: 8.16 USD
Availability: InStock

0 reviews | UPC: 095969174992 | Model: Pomona 4741-24-0

Compare

.025? Square Pin Receptacle Patch Cord, 24", Black

Interfaces to Pomona’s .025” (.64mm) Square Pin Micrograbber (Model 4521), Rotating Micrograbber (Model 5790), SMD Grabber (Model 5360), and Minigator (Model 5363).
Ideal for jumping .025” (.64mm) Square Pins on PC Test Boards.
Receptacle is gold-plated to optimize the electrical connection.
Cable length - 24 inches
Color - Black

View Product Details

List Price: $8.39

Your Price: $8.16

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 4741-24-0

Interfaces to Pomona’s .025” (.64mm) Square Pin Micrograbber (Model 4521), Rotating Micrograbber (Model 5790), SMD Grabber (Model 5360), and Minigator (Model 5363).
Ideal for jumping .025” (.64mm) Square Pins on PC Test Boards.
Receptacle is gold-plated to optimize the electrical connection.
Cable length - 24 inches
Color - Black

.025” Square Pin Receptacle Patch Cord, 24", Black

Pomona 4741-24-0 is a .025” Square Pin Receptacle Patch Cord that is 24 inches in length and Black in color.

Materials
Receptacle Body	Phosphor Bronze, Gold Plated
Housing	Polypropylene, Color Matches Wire
Wire	22 AWG, 26 x 36 t.c., PVC Insulation .064” (1,63mm) O.D. Nom.
Color per part number
Ratings
Operating Temperature	+50°C (+122°F)
Operating Voltage	45 VRMS
Current	3 Amperes Max.
