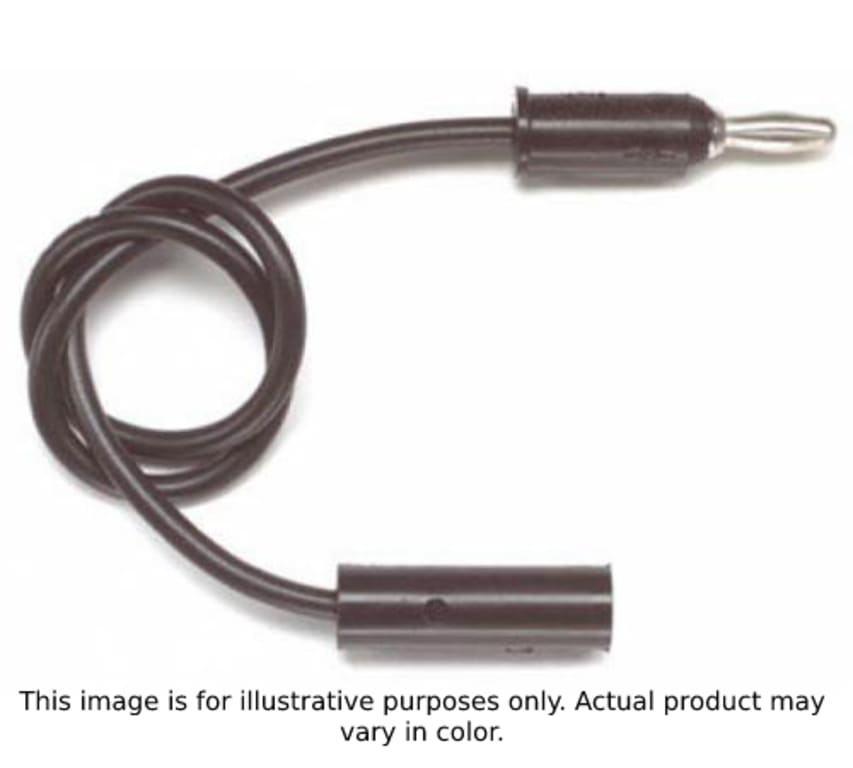

Pomona 4702-48-2 - Banana Plug To In-Line Banana Jack, 48", Red

Name: Pomona 4702-48-2 - Banana Plug To In-Line Banana Jack, 48", Red
Brand: Pomona
SKU: Pomona4702-48-2
Price: 10.67 USD
Availability: InStock

0 reviews | UPC: 095969174626 | Model: Pomona 4702-48-2

Compare

Banana Plug To In-Line Banana Jack, 48", Red

Dual Purpose
Insulates all hot leads when used as an extension cord
Endless extension couplings possible with any banana plug patch cord
Cable length - 48 inches
Color - Red

View Product Details

List Price: $10.99

Your Price: $10.67

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 4702-48-2

Dual Purpose
Insulates all hot leads when used as an extension cord
Endless extension couplings possible with any banana plug patch cord
Cable length - 48 inches
Color - Red

Banana Plug To In-Line Banana Jack, 48", Red

Pomona 4702-48-2 is a Banana Plug To In-Line Banana Jack. Cable length - 48 inches. Color - Red.

Materials
Conn	Banana Plug
Material	Spring, One piece heat treated Beryllium Copper, Berylco 25 per QQ-C-533.
Finish	Nickel plate per QQ-N-290 class 2 (.0002 min.).
Insulation	Polypropylene, molded to plug body and wire. Color matches color of wire.
Operating Temperature	+55º C. (+131º F.) Max.
Marking	“POMONA ELECTRONICS CALIF.”
Wire	18 AWG; stranding 65 x 36 tinned copper, polyvinyl chloride insulated (.050 wall thickness).
Marking	POMONA 4702-“XX”.
Conn	In-Line Banana Jack
Material	Brass, H.H. per QQ-B-626, Alloy 360.
Finish	Nickel plate per QQ-N-290. Class 2 (.0002 min.).
Insulation	Polypropylene, molded to jack body and wire. Color matches color of wire.
Operating Temperature	+55º C. (+131º F.) Max.
Marking	“POMONA ELECTRONICS CALIF.”
Ratings
Operating Temperature	+55º C. (+131º F.) Max.
Operating Voltage	5000 W VDC
Current	15 Amperes Cont.
