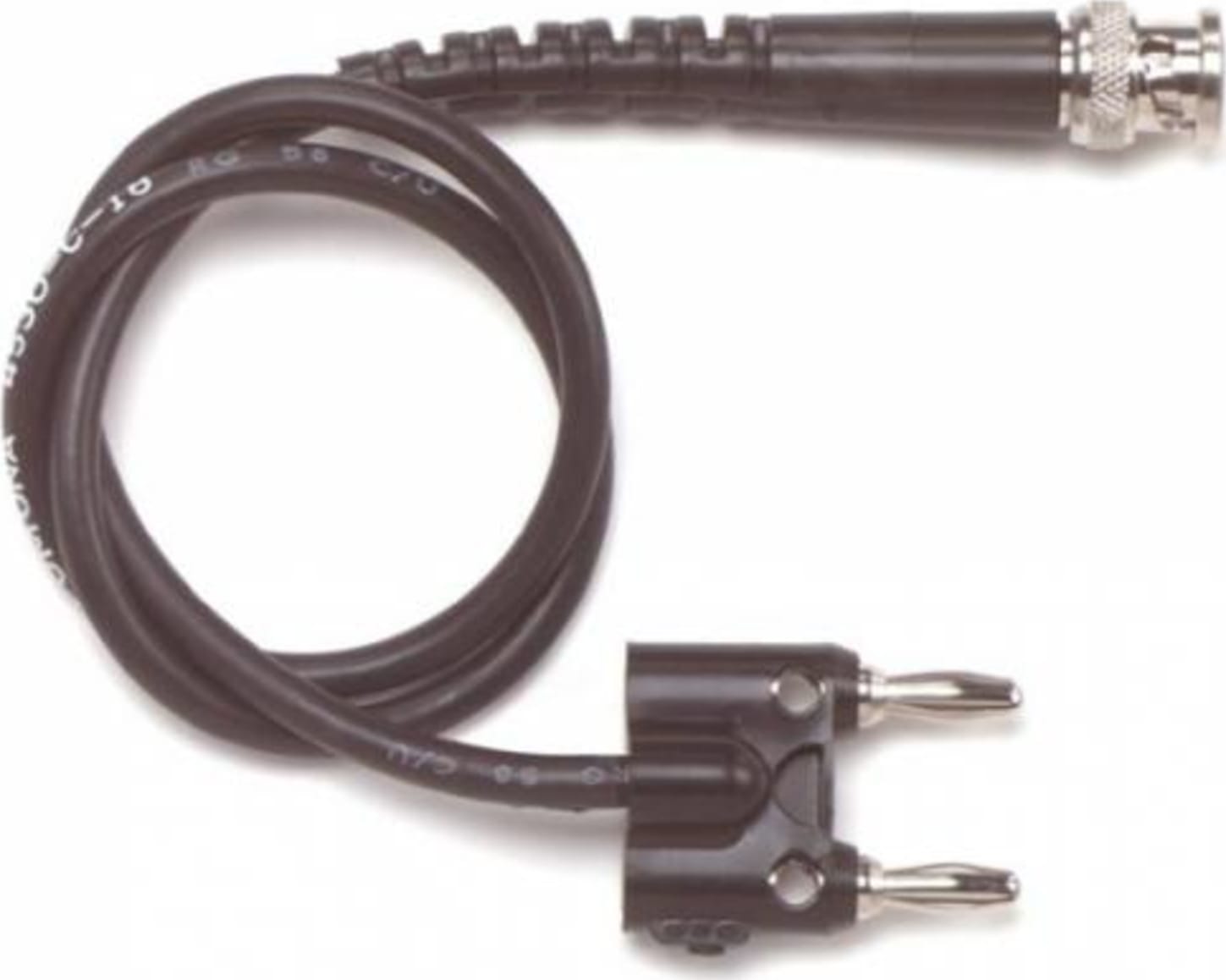

Pomona 4530-C-18 - BNC (M) With Strain Relief To Double Banana Plug, Rg58C/U, 18"

Name: Pomona 4530-C-18 - BNC (M) With Strain Relief To Double Banana Plug, Rg58C/U, 18"
Brand: Pomona
SKU: Pomona4530-C-18
Price: 29.13 USD
Availability: InStock

0 reviews | UPC: 095969173094 | Model: Pomona 4530-C-18

Compare

BNC (M) With Strain Relief To Double Banana Plug, Rg58C/U, 18"

Cable allows interconnection between Banana Plug and BNC based test instruments
BNC Connector and Double Banana Plug are molded directly to the cable for superior cable strength
Double Banana Plug features nickel plated Beryllium Copper springs for tarnish resistance and long insertion life
Double Banana Plugs have vertical and horizontal stacking capabilities
Cable length - 18 inches

View Product Details

List Price: $29.99

Your Price: $29.13

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 4530-C-18

Cable allows interconnection between Banana Plug and BNC-based test instruments
BNC Connector and Double Banana Plug are molded directly to the cable for superior cable strength
Double Banana Plug features nickel plated Beryllium Copper springs for tarnish resistance and long insertion life
Double Banana Plugs have vertical and horizontal stacking capabilities
Cable length - 18 inches

BNC (M) With Strain Relief To Double Banana Plug, Rg58C/U, 18"

Pomona 4530-C-18 is a BNC (M) With Strain Relief To Double Banana Plug. Cable length - 18 inches.

Materials
BNC	Body: Brass, Nickel Plated, Center Pin: Brass, Gold Plated, Impedance: 50 Ohms
Strain Relief and Molded Breakout	PVC, Color: Black
Cable	RG58C/U, Capacitance: 30.8 pF/Ft., O.D.: .195” (5,0 0mm) Nom.
Marking	“POMONA ELECTRONICS 4530-C-XX”
Double Banana Plug	Body – Brass, Nickel Plated
Spring	Beryllium Copper, Nickel Plated
Insulation	Polypropylene, Color: Black
Ratings
Voltage
Hand-held testing	30VAC/60VDC Max.
Hands free testing in controlled voltage environments	500VRMS Max.
Operating Temperature	50°C (+122°F) Max.
