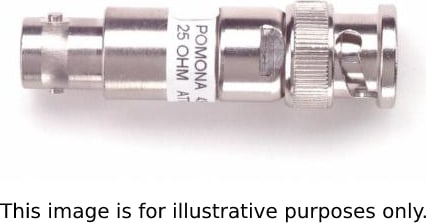

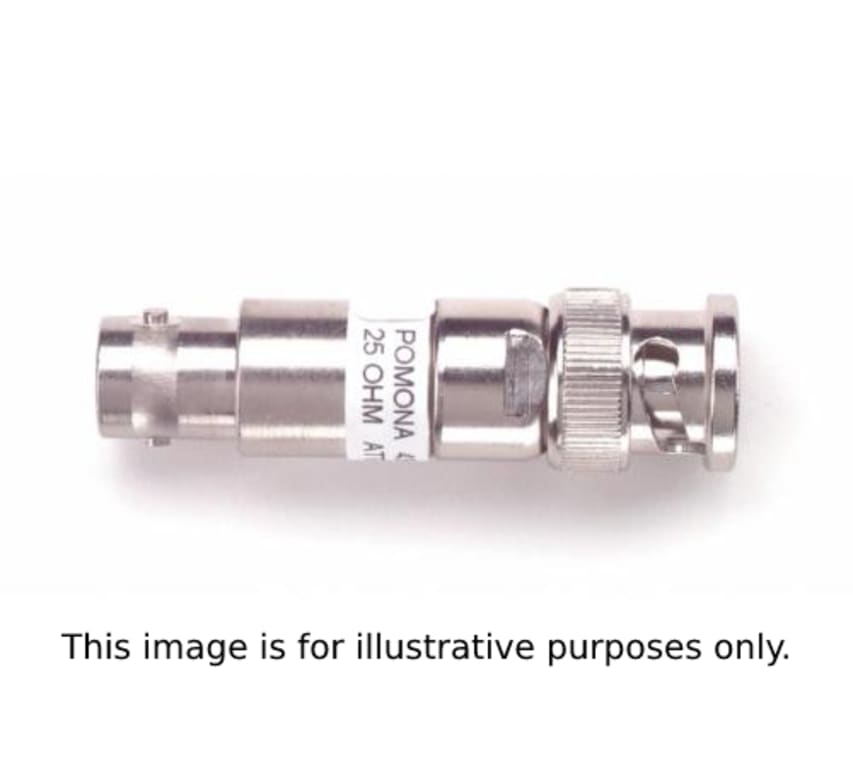

Pomona 4391-50 - BNC (M-F) Resistor Attenuator, 50 Ohm

Name: Pomona 4391-50 - BNC (M-F) Resistor Attenuator, 50 Ohm
Brand: Pomona
SKU: Pomona4391-50
Price: 74.79 USD
Availability: InStock

0 reviews | UPC: 095969208000 | Model: Pomona 4391-50

Compare

BNC (M-F) Resistor Attenuator, 50 Ohm

Use to add series resistance to coaxial lines with BNC connectors.
50 Ohm Attenuator

View Product Details

List Price: $76.99

Your Price: $74.79

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Resistance Value	50Ω
Materials
Body and Fittings	Brass, Alloy 360, ½ Hard
Center Contact
Male	Brass, Alloy 360, ½ Hard
Female	Beryllium Copper per ASTM B196 and B197 Cond. HT
Outer Contact	Beryllium Copper, per ASTM B196 and B197 Cond. HT.
Dielectric	Teflon per ASTM D1457
Gasket/Seals	Silicone rubber per ZZ-R-765, Class 11, Grade 50
Resistor	Non-inductive film resistor
Finish
Body and Fittings	Tarnish resistant
Center Contact
Male	Gold plated
Outer Contact	Tarnish resistant
Marking	“Pomona 4391-50 2W”
“50 Ohm Attenuator”
Ratings
Operating Temperature	+102° C (+216° F) Max.
Frequency Range	DC to 500 MHz
Resistance Tolerance	±1%
Power	2W @ 25° C. Max
