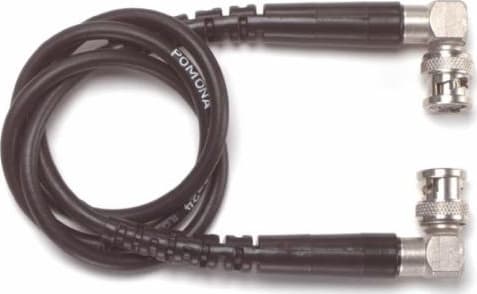

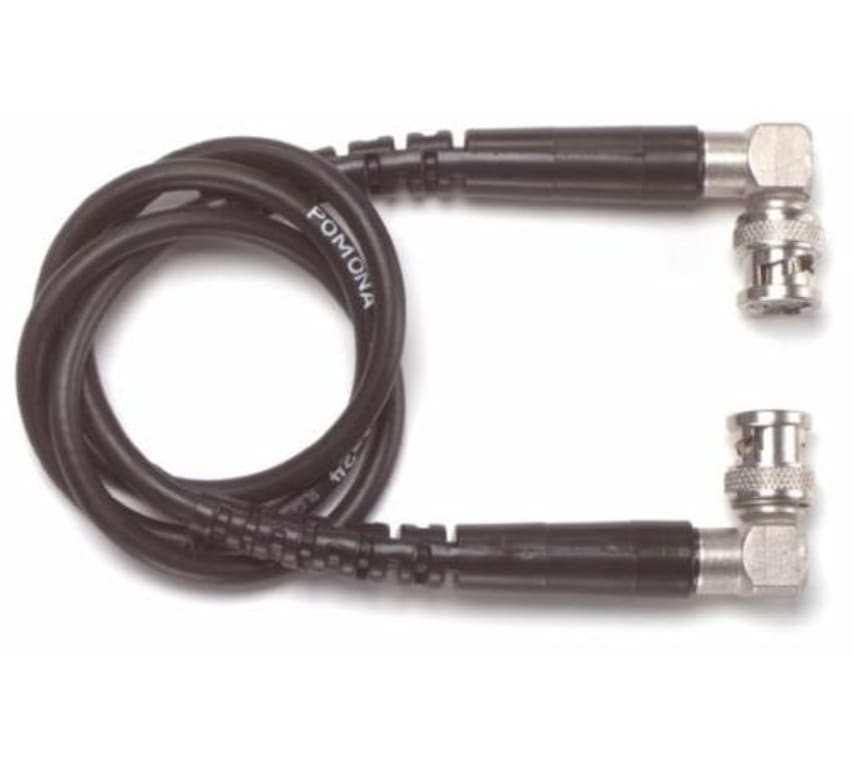

Pomona 4276-C-36 - BNC (M) Right Angle, 50 Ohm Cable With Strain Relief, 36"

Name: Pomona 4276-C-36 - BNC (M) Right Angle, 50 Ohm Cable With Strain Relief, 36"
Brand: Pomona
SKU: Pomona4276-C-36
Price: 62.16 USD
Availability: InStock

0 reviews | UPC: 095969179294 | Model: Pomona 4276-C-36

Compare

BNC (M) Right Angle, 50 Ohm Cable With Strain Relief, 36"

This cable assembly is similar to our model 2249-C except with right-angle connectors.
It is designed to access those BNC connectors in tight locations, such as found in the back of rack-mounted equipment.
It is designed to access those BNC connectors in tight locations, such as found in the back of rack-mounted equipment.
These cables are made of the highest quality materials and assembly procedures.
Cable length - 36 inches

View Product Details

List Price: $63.99

Your Price: $62.16

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 4276-C-36

This cable assembly is similar to our model 2249-C except with right-angle connectors.
It is designed to access those BNC connectors in tight locations, such as found in the back of rack-mounted equipment.
The right-angle connectors are impedance matched to provide the best signal quality.
These cables are made of the highest quality materials and assembly procedures.
Cable length - 36 inches

BNC (M) Right Angle, 50 Ohm Cable With Strain Relief, 36"

Pomona 4276-C-36 is a BNC (M) Right Angle, 50 Ohm Cable With Strain Relief. Cable length - 36 inches.

Materials
BNC	Body: Brass, tarnish resistant plating
Center Contacts	Brass, gold plating
Strain Relief	PVC, molded onto cable and connector
Cable	RG58C/U, 50 Ohm, .195 OD
Ratings
Voltage
Shield/Earth	30VAC/60VDC Max.
Inner Conductor/Shield	500VRMSMax.
Operating Temperature	+50° C (+122° F)
Nominal Impedance	50 Ohms
