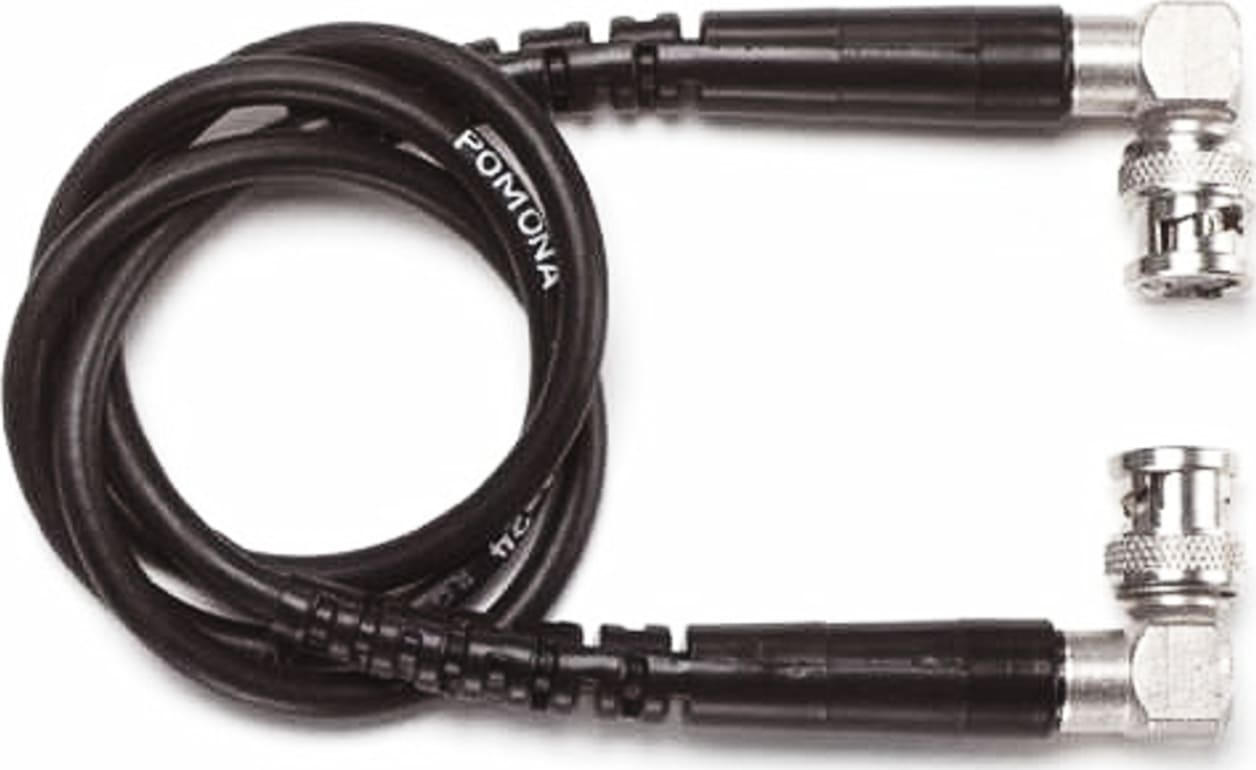

Pomona 4276-C-12 - BNC (M) Right Angle, 50 Ohm Cable With Strain Relief, 500VRMS Max, 12"

Name: Pomona 4276-C-12 - BNC (M) Right Angle, 50 Ohm Cable With Strain Relief, 500VRMS Max, 12"
Brand: Pomona
SKU: Pomona4276-C-12
Price: 62.16 USD
Availability: InStock

0 reviews | UPC: 095969179263 | Model: Pomona 4276-C-12

Compare

BNC (M) Right Angle, 50 Ohm Cable With Strain Relief, 500VRMS Max, 12"

This cable assembly is similar to our model 2249-C except with right angle connectors.
It is designed to access those BNC connectors in tight locations such as found in the back of rack mounted equipment.
The right angle connectors are impedance matched to provide the best signal quality.
These cables are made of the highest quality materials and assembly procedures.
Cable length: 12 inches

View Product Details

List Price: $63.99

Your Price: $62.16

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 4276-C-12 Accessories

Choose a Category

Adapter Kits

for the Pomona 4276-C-12

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Pomona 4276-C-12

This cable assembly is similar to our model 2249-C except with right-angle connectors.
It is designed to access those BNC connectors in tight locations, such as found in the back of rack-mounted equipment.
The right-angle connectors are impedance matched to provide the best signal quality.
These cables are made of the highest quality materials and assembly procedures.
Cable length: 12 inches

BNC (M) Right Angle, 50 Ohm Cable With Strain Relief, 500VRMS Max, 12"

Pomona 4276-C-12 is a BNC (M) Right Angle, 50 Ohm Cable With Strain Relief and a length of 12 inches.

Materials:

BNC: Body: Brass, tarnish resistant plating
Center Contacts: Brass, gold plating
Strain Relief: PVC, molded onto cable and connector
Cable: RG58C/U, 50 Ohm, .195 OD

Ratings:

Voltage:
Shield/Earth: 30VAC/60VDC Max.
Inner Conductor/Shield: 500VRMSMax.
Operating Temperature: +50° C (+122° F)
Nominal Impedance: 50 Ohms

Tech Specs

Accessories/Cables - Misc Template
Cable Type	BNC
Test Equipment General Attributes
Product Length	12 IN
Country of Origin	United States
Shipping Height	0.50 IN
Shipping Length	4.50 IN
Shipping Width	4.00 IN
