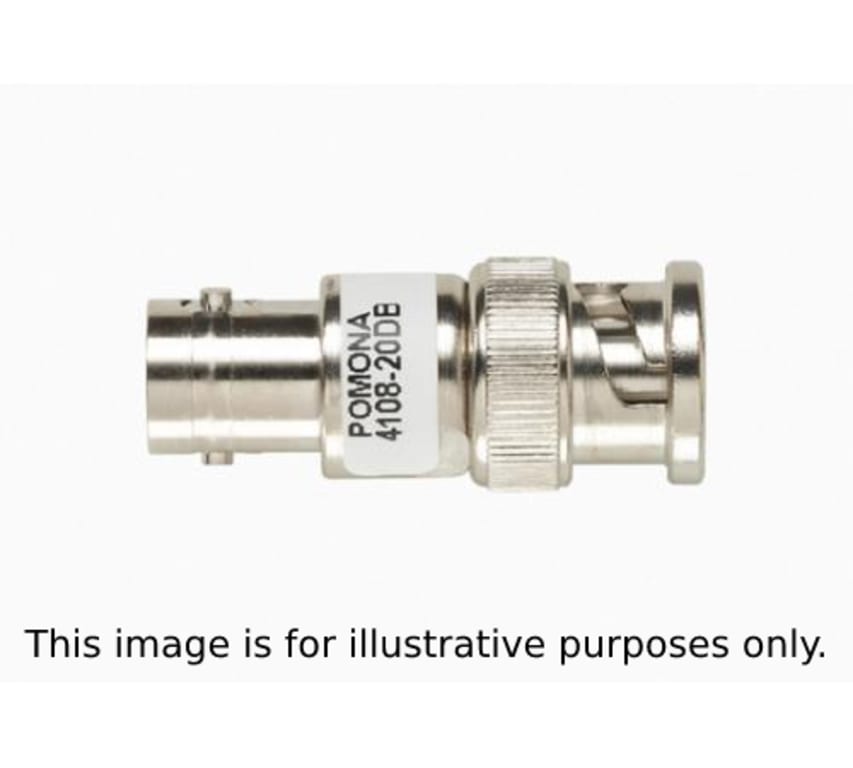

Pomona 4108-20DB - BNC (M-F) Attenuator, 20dB, 50 Ohm

Name: Pomona 4108-20DB - BNC (M-F) Attenuator, 20dB, 50 Ohm
Brand: Pomona
SKU: Pomona4108-20DB
Price: 113.62 USD
Availability: InStock

0 reviews | UPC: 095969194648 | Model: Pomona 4108-20DB

Compare

BNC (M-F) Attenuator, 20dB, 50 Ohm

Used to attenuate signals in coaxial lines
Attenuation - 20dB

View Product Details

List Price: $126.99

Your Price: $113.62

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Attenuation & VSWR Tolerances
VSWR	Attenuation Tolerances
1.1 to 1Ghz	±0.4dB to 1Ghz
1.2 to 2Ghz	±0.45dB to 2Ghz
1.35 to 4Ghz	±0.65dB to 4Ghz
1.45 to 6Ghz	±0.75dB to 6Ghz
1.65 to 8Ghz	±0.9dB to 8Ghz

Model Number	Attenuation
4108-3dB	3dB
4108-6dB	6dB
4108-10dB	10dB
4108-14dB	14dB
4108-20dB	20dB

Materials
Body and Fittings	Brass per QQ-B-626, Alloy 360, ½ Hard
Center Contact
Male	Brass per QQ-B-626, Alloy 360, ½ Hard
Female	Beryllium Copper per QQ-C-530, Cond. HT.
Outer Contact	Beryllium Copper per QQ-C-530, Cond. HT.
Dielectric	Teflon per ASTMD1457
Gaskets	Silicone rubber per ZZ-R-765, Class 11, Grade 50
Resistor	2W, Metal film attenuator
Finish
Body and Fittings	Tarnish Resistant
Center Contact	Gold plated per requirements of MIL-C-39012
Outer Contact	Tarnish Resistant
Marking	Body: “POMONA ELECTRONICS 4108-*”
Ratings
Operating Temperature	-55°C to +102°C
Nominal Impedance	50 Ohm
Power	2 Watt @ 70°C; derated linearly to .6 watts @ 150°C
Resistor Tolerance	1± % @ 25°C
