Pomona 3788 - BNC Female to Minigrabber Test Clip

Name: Pomona 3788 - BNC Female to Minigrabber Test Clip
Brand: Pomona
SKU: Pomona3788
Price: 18.19 USD
Availability: InStock

0 reviews | UPC: 095969207911 | Model: Pomona 3788

Compare

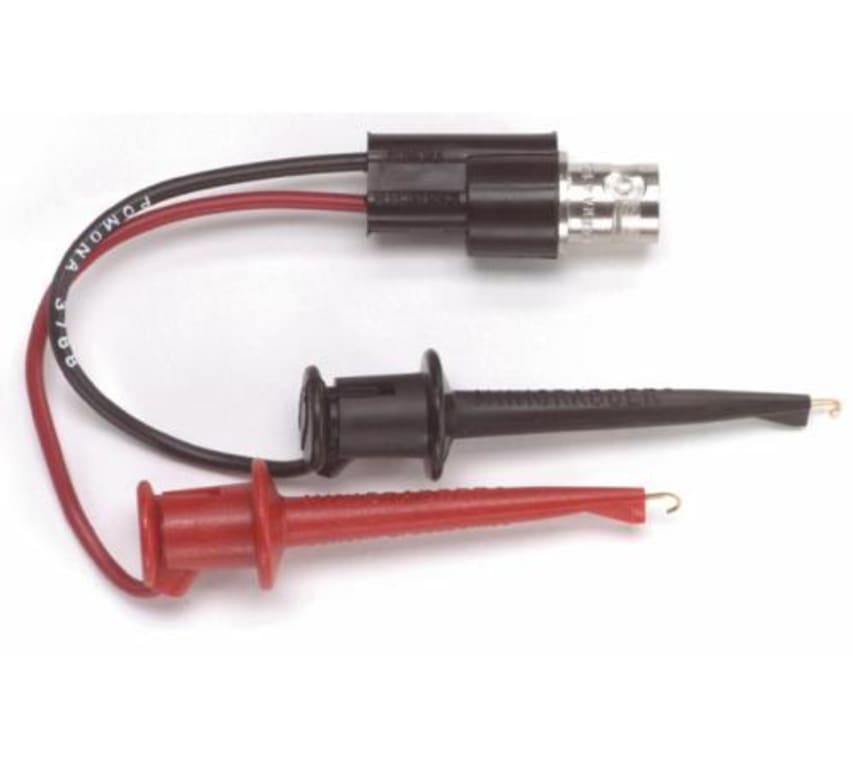

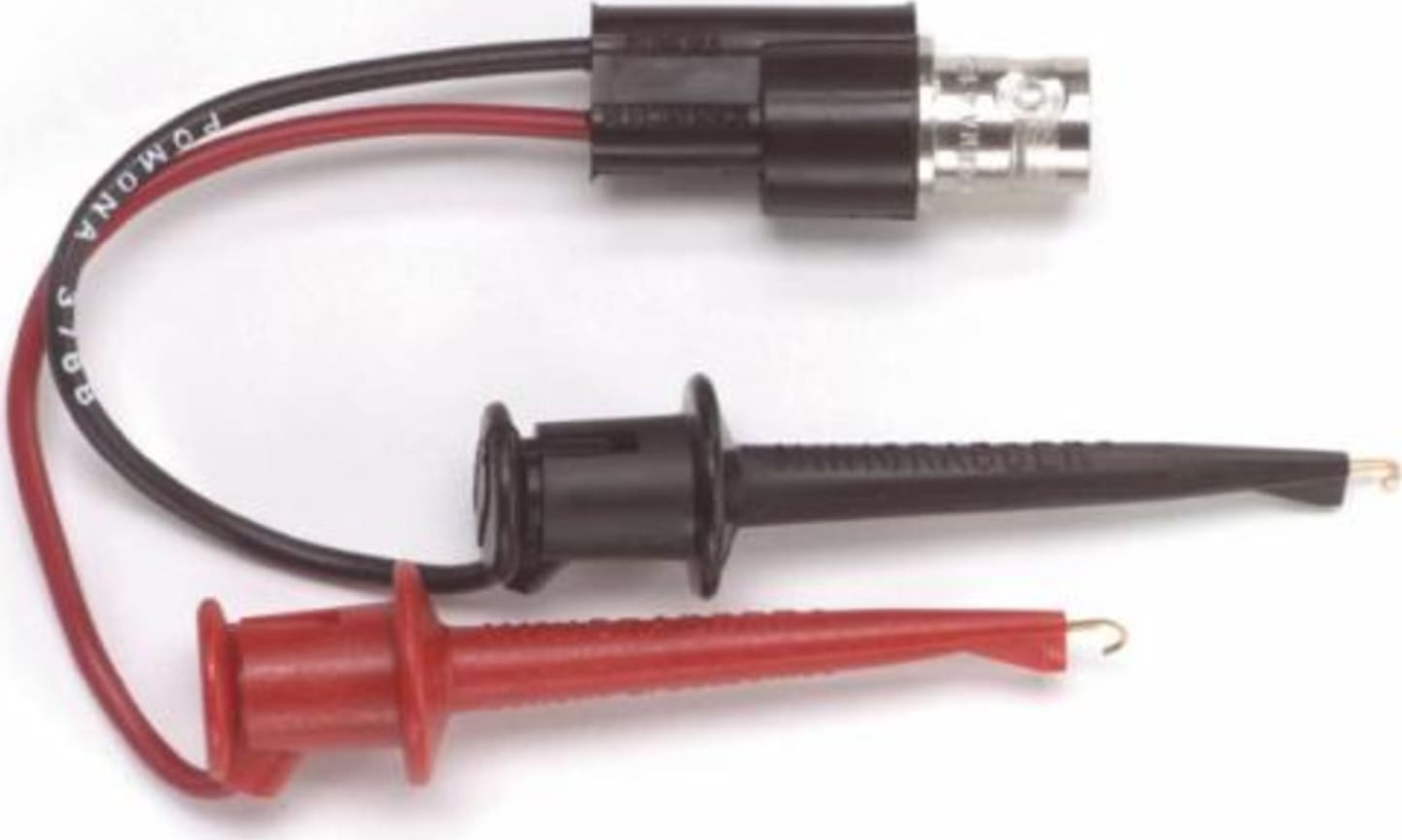

BNC Female to Minigrabber Test Clip

Minigrabber® test clip hooks attach to terminal sizes up to .060” diameter
Converts BNC (Male) cables to Minigrabber test clips for test versatility
BNC connector and Minigrabber test clip caps are molded directly onto the wire for pull strength durability and dust and moisture resistance
Minigrabber test clip hooks and BNC center contact are Beryllium Copper for superior strength.
Gold plating of Minigrabber hooks and BNC center contact offers optimum corrosion resistance and low contact resistance to ensure test signal integrity.
Black Minigrabber test clip to BNC shell, red Minigrabber test clip to BNC center contact.

View Product Details

Your Price: $18.19

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

Minigrabber® test clip hooks attach to terminal sizes up to .060” diameter
Converts BNC (Male) cables to Minigrabber test clips for test versatility
BNC connector and Minigrabber test clip caps are molded directly onto the wire for pull strength durability and dust and moisture resistance
Minigrabber test clip hooks and BNC center contact are Beryllium Copper for superior strength.
Gold plating of Minigrabber hooks and BNC center contact offers optimum corrosion resistance and low contact resistance to ensure test signal integrity.

Pomona 3788 is a BNC Female to Minigrabber Test Clip that attaches to terminal sizes up to .060” in diameter.

Materials
BNC	Nickel plated brass
Center Contact	Gold plated Beryllium Copper
Wire	20 AWG, PVC
Marking	Model 3788
Minigrabber test clips
Contact	Gold plated Beryllium Copper,
Spring	Stainless steel
Insulation	Nylon, color: red and black
Ratings
Voltage
Hand-held testing	30VAC/60VDC Max.
Hands free testing in controlled voltage environments	300VRMS Max.
Operating Temperature	+55°C (+131°F) Max.
