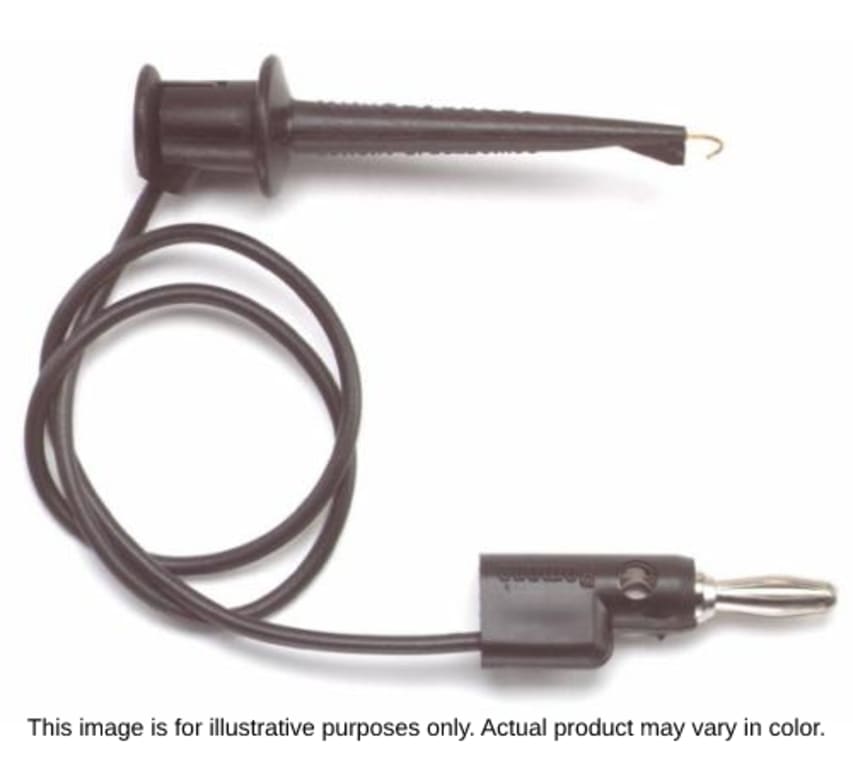

Pomona 3782-12-2 - Minigrabber Test Clip To Stacking Banana Plug, 12", Red

Name: Pomona 3782-12-2 - Minigrabber Test Clip To Stacking Banana Plug, 12", Red
Brand: Pomona
SKU: Pomona3782-12-2
Price: 10.09 USD
Availability: InStock

0 reviews | UPC: 095969177184 | Model: Pomona 3782-12-2

Compare

Minigrabber Test Clip To Stacking Banana Plug, 12", Red

Provides a Minigrabber output from a Banana Jack.
Banana plug is capable of vertical and cross stacking.
Mates to Model 1581 or any standard Banana Jack.
Length: 12 inches
Color: Red

View Product Details

Your Price: $10.09

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 3782-12-2

Provides a Minigrabber output from a Banana Jack.
Banana plug is capable of vertical and cross stacking.
Mates to Model 1581 or any standard Banana Jack.
Length: 12 inches
Color: Red

Minigrabber Test Clip To Stacking Banana Plug, 12", Red

Pomona 3782-12-2 is a Minigrabber Test Clip To Stacking Banana Plug, which is 12 inches in length and is red in color.

Materials:

Conn: 1st End - Minigrabber®
Material: Contact – Beryllium Copper
Spring: Stainless Steel
Finish: Contact – Gold Plated
Insulation: Glass filled nylon. Color matches color of wire.
Marking: “POMONA ELECTRONICS” “MINIGRABBER®”
Wire: 20 AWG , stranding 41 x 36 t.c., PVC insulated 2.21 (.087) O.D.
Color: See Ordering Information Marking: “POMONA 3782-*”
Conn: 2nd End – Stacking Banana Plug
Material: Spring – Beryllium Copper
Plug Body: Brass
Finish: Nickel Plated
Insulation: Polypropylene molded to plug body and wire. Color matches color of wire.

Ratings:

Operating Temperature: +55ºC. (+131ºF.) Max.
Operating Voltage:
Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 300 WVDC
Current: 5 Amperes Cont.
