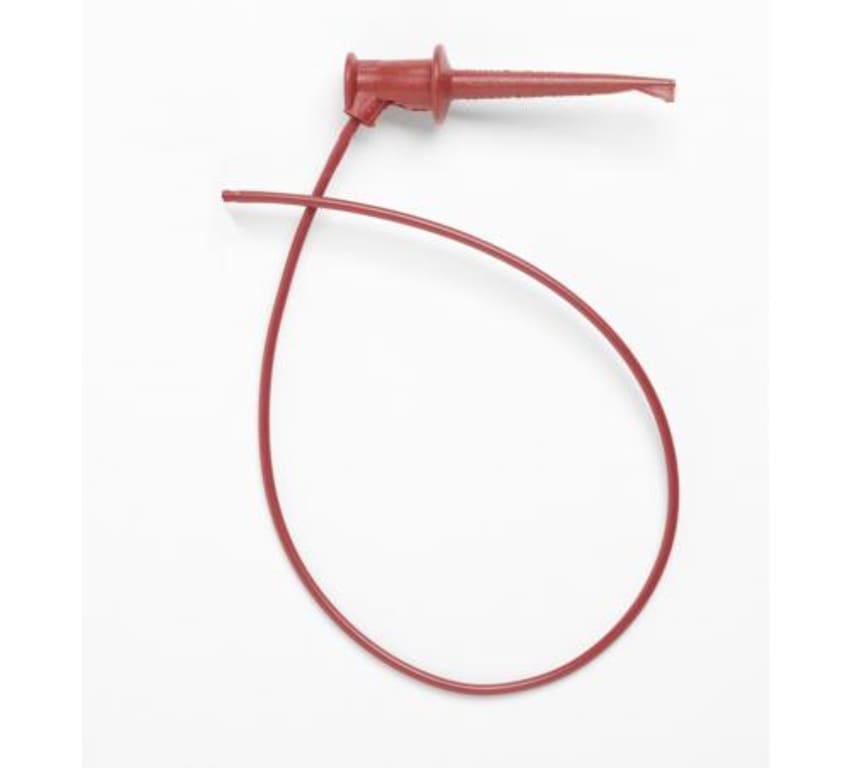

Pomona 3780-60-2 - Minigrabber® Test Clip One End Only, 60", Red

Name: Pomona 3780-60-2 - Minigrabber® Test Clip One End Only, 60", Red
Brand: Pomona
SKU: Pomona3780-60-2
Price: 29.95 USD
Availability: InStock

0 reviews | UPC: 095969176279 | Model: Pomona 3780-60-2

Compare

MinigrabberÃƒÆ’Ã¢â‚¬Å¡Ãƒâ€šÃ‚Â® Test Clip One End Only, 60", Red b>Note: Price is for 5 Units-Note:Price is for 5 Units

Minigrabber® Test Clip (one end only) allows customization of the open end
Grabber attaches to terminals sizes up to .060” (1,5mm).
Hook material is gold plated Beryllium Copper for superb strength and low contact resistance to ensure signal integrity
For added safety, the grabber body material is fire retardant Nylon 6.
Stainless steel grabber compression spring resists corrosion and retains a firm feel throughout the life of the grabber
Flexible 20 gauge multi-stranded wire is molded directly to the grabber actuator cap and pin tip plug for durability.
Cable Length - 60 inches
Color - Red

View Product Details

Your Price: $29.95

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 3780-60-2

Minigrabber® Test Clip (one end only) allows customization of the open end.
Grabber attaches to terminals sizes up to .060” (1,5mm).
For added safety, the grabber body material is fire retardant Nylon 6.
Cable Length - 60 inches
Color - Red

Minigrabber® Test Clip One End Only, 60", Red

Pomona 3780-60-2 is a Minigrabber® Test Clip One End Only. Cable length - 60 inches and Color - Red.

Materials:

Grabber: Contact, Beryllium Copper, Gold Plated
Spring: Stainless Steel
Insulation: Nylon 6 (Fire Retardant UL94V-0), Matches Wire Color
Wire: 20 AWG, Stranding 41 x 36 copper, PVC Insulated, 0.087” (2,21 mm) O.D.
Color per part number
Marking: Pomona 3780-XX-*

Ratings:

Operating Voltage:
Hand-held Testing: 30VAC/60VDC Max.
Hand Free Testing in controlled Voltage Environment: 300
Operating Temperature: +102°C (+216°F) Max.
Current: 5 Amperes Max.
