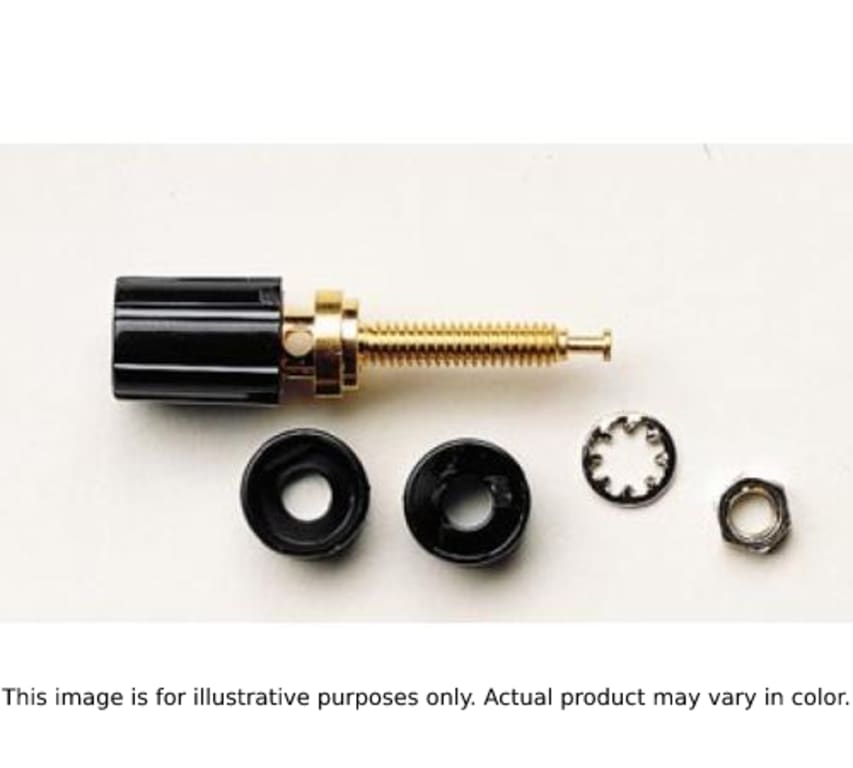

Pomona 3770-2 - Binding Post, Low Thermal Emf. Tellurium-Copper, Gold-Plated, Red

Name: Pomona 3770-2 - Binding Post, Low Thermal Emf. Tellurium-Copper, Gold-Plated, Red
Brand: Pomona
SKU: Pomona3770-2
Price: 14.56 USD
Availability: InStock

0 reviews | UPC: 095969183529 | Model: Pomona 3770-2

Compare

Binding Post, Low Thermal Emf. Tellurium-Copper, Gold-Plated, Red

Accepts standard banana plug, wire, or spade lug.
Mounts in panels from .070 to .250 (1.77mm to 6.35mm) thick.
Color - Red

View Product Details

List Price: $14.99

Your Price: $14.56

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 3770-2

Accepts standard banana plug, wire, or spade lug.
Mounts in panels from .070 to .250 (1.77mm to 6.35mm) thick.
Color - Red

Binding Post, Low Thermal Emf. Tellurium-Copper, Gold-Plated, Red

Pomona 3770-2 is a Binding Post, Low Thermal Emf. Tellurium-Copper, Gold-Plated. Color - Red.

Materials:

Insulated Captive Thumb Nut: Brass
Insulation: Polycarbonate
Mounting Base: Polycarbonate
Insulator: Polycarbonate
Lockwasher: Steel
Hex Nut: Brass
Binding Post:
Finish: Gold plated Tellurium Copper

Ratings:

Operating Voltage:
Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 2500 WVDC Max.
Operating Temperature: +115ºC (+239ºF) Max.
Current: 15 Amperes
