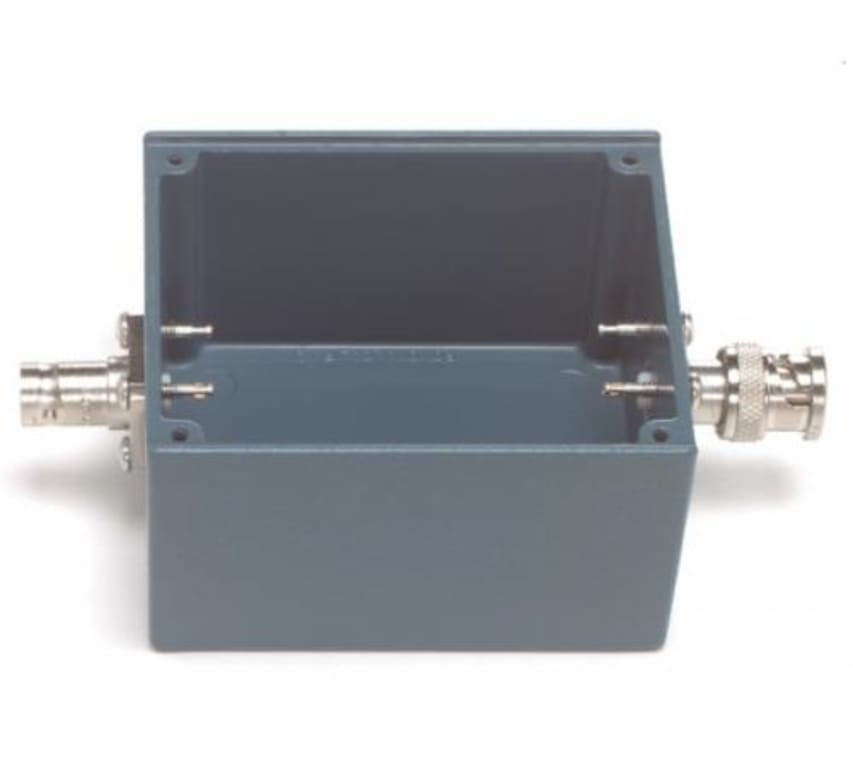

Pomona 3603 - Shielded Box, Size D With BNC (M & F) Blue Enamel, With Cover

Name: Pomona 3603 - Shielded Box, Size D With BNC (M & F) Blue Enamel, With Cover
Brand: Pomona
SKU: Pomona3603
Price: 124.32 USD
Availability: InStock

0 reviews | UPC: 095969183062 | Model: Pomona 3603

Compare

Shielded Box, Size D With BNC (M & F) Blue Enamel, With Cover-Note:Price is for 2 Units

Shielded Box, Size D With BNC (M & F) Blue Enamel
With Cover
Dimensions - 3.0" X 2.63" X 1.65"

View Product Details

List Price: $127.98

Your Price: $124.32

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Materials:

Connector: 2 each BNC Female
Finish:
Body and Fittings: Tarnish resistant
Center Contact: Gold plated
Nominal Impedance: 50 Ohms. Solder Turret
Terminal Screws: 4 each, 4-40 pan head. Material: Steel.
Shielded Housing: Die cast aluminum Alloy A380 or A384.
Finish: Blue baked enamel per Federal Standard 595 #25109 over primer wash per DOD-P-15328.
Cover: 1.60 (.063) thick aluminum 1100-H14
Finish: Clear anodized per MIL-A-8625
Screws: 8 each, #4-40 x 6.35 (1/4) with blue zinc plating.
Connector: BNC Male
Finish:
Body & Fittings: Tarnish Resistant.
Center Contact: Gold plated
Nominal Impedance: 50 Ohms
