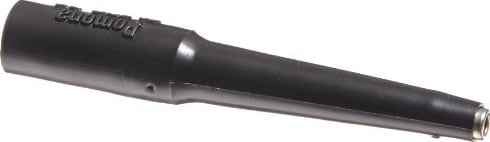

Pomona 3564-0 - Banana Plug Test Adapter With .093 Socket, Black

Name: Pomona 3564-0 - Banana Plug Test Adapter With .093 Socket, Black
Brand: Pomona
SKU: Pomona3564-0
Price: 11.09 USD
Availability: InStock

0 reviews | UPC: 095969207843 | Model: Pomona 3564-0

Compare

Banana Plug Test Adapter With .093 Socket, Black

Ideal test adapters for rapid testing of the hard-to-get to pins of multi-pin connectors.
Flexible tip allows testing of adjacent contacts.
Full insulation protects against shorting or contact damage.
Color: Black

View Product Details

Your Price: $11.09

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 3564-0

Ideal test adapters for rapid testing of the hard-to-get-to pins of multi-pin connectors.
Flexible tip allows testing of adjacent contacts.
Full insulation protects against shorting or contact damage.
Color: Black

Banana Plug Test Adapter With .093 Socket, Black

Pomona 3564-0 is a Banana Plug Test Adapter With a .093 Socket. Color - Black.

General Specifications
Materials	Upper Conn.	Banana Jack Body
	Material	Brass.
	Finish	Bright Tin plated
	Insulation	Polyvinyl chloride (PVC).
	Operating Temperature	+55°C (+122°F.) Max.
	Marking	“POMONA ELECTRONICS CALIF. 3564”
	Lower Conn	“MS” Style Contact, #12 Socket
	Material	Copper Alloy
	Finish	Gold over copper plate
Ratings	Operating Voltage	2500 VDC
	Operating Temperature	50°C. (+122°F.) Max..
	Current	23 Amperes

Test Equipment General Attributes
Safety Approval	CE
Shipping Weight	0.10 LBS
HTS/Schedule B Number	9030.90.8961
ECCN Number	EAR99
Country of Origin	United States
Shipping Height	0.30 IN
Shipping Length	4.00 IN
Shipping Width	3.00 IN
