Materials:

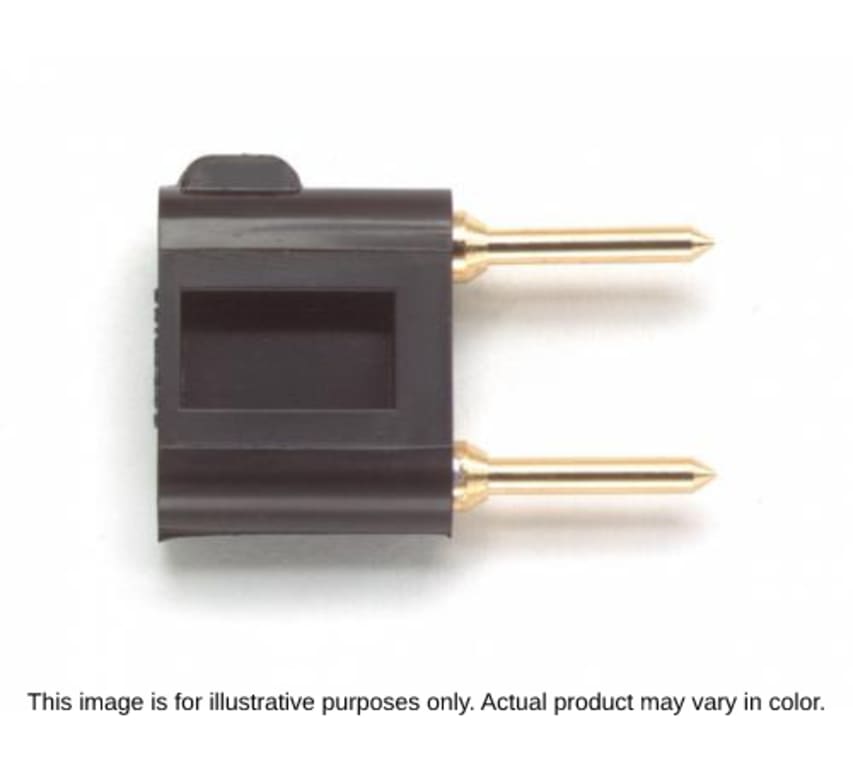

• Upper Conn: Double Pin Tip Jack
  Material: Jack body – Brass per QQ-B-626, Alloy 360, 1/2/ Hard.
  Spring: Beryllium Copper per QQ-C-533, Alloy 172, Cond. H.T.
  Finish: Gold plated per MIL-G-45204, Type II, Class 00 over electroless nickel per MIL-C-26074, Class 1, 200/300 micro-inches.
  Insulation: ABS molded to Pin Jacks and bodies.
  Marking: “POMONA ELECTRONICS, CALIF.” And “SHORTING BAR”.
  Lower Conn: Double Pin Tip Plug
  Material: Body – Brass per QQ-B-626, Alloy 360, ½ Hard
  Finish: Same as jack above

 Ratings:

• Operating Temperature: +50°C. (+122°F.) Max.
  Operating Voltage: 3000 VDC
  Current: 5 Amperes
