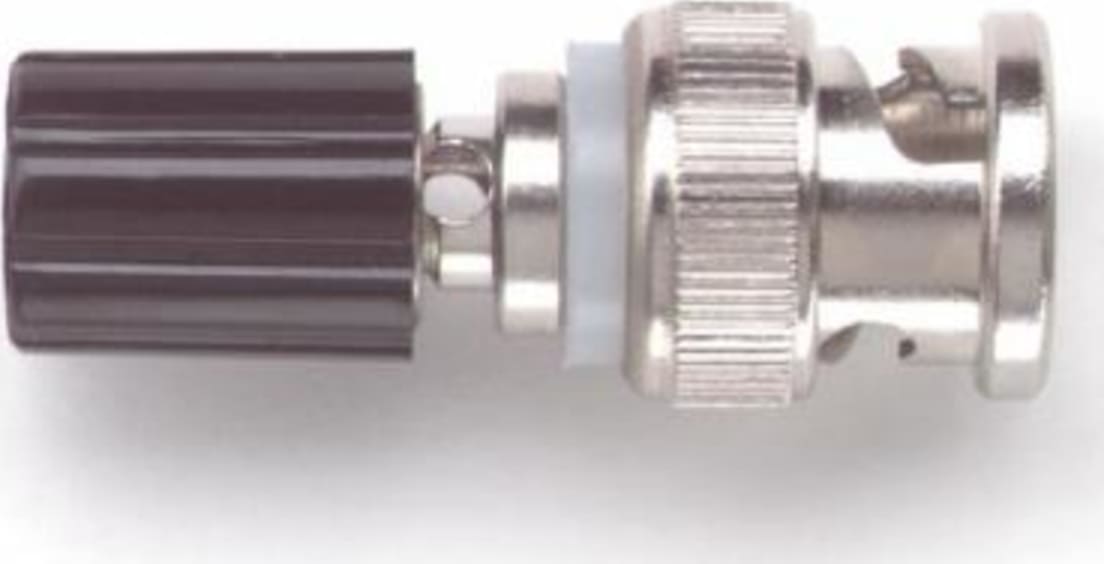

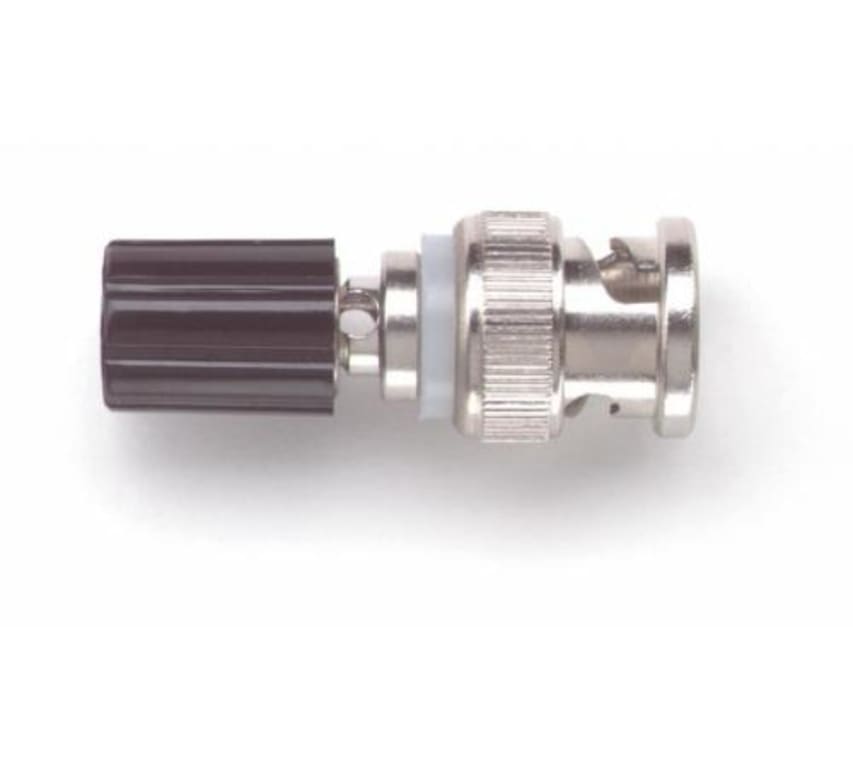

Pomona 3430-0 - BNC (M) To Single Stacking Binding Post, Black

Name: Pomona 3430-0 - BNC (M) To Single Stacking Binding Post, Black
Brand: Pomona
SKU: Pomona3430-0
Price: 66.45 USD
Availability: InStock

0 reviews | UPC: 095969182508 | Model: Pomona 3430-0

Compare

BNC (M) To Single Stacking Binding Post, Black-Note:Price is for 5 Units

Permits single banana plug to be used with equipment having a BNC female.
Color - Black

View Product Details

Your Price: $66.45

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Materials:

Upper Conn: Insulated Binding Post
Material: Binding Post Body – Brass per QQ-B-626, Allow 360, ½ Hard.
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Insulation: Polycarbonate.
Color: See Ordering Information.
Lower Conn.: BNC Male
Finish: Body and fittings – Tarnish Resistant.
Nominal Impedance: 50 Ohms.

Ratings:

Operating Temp.: +115º C. (+239º F.) Max.
Operating Voltage: Hand-held Testing: 30VAC/60VDC Max.
Hands free Testing in Controlled Voltage Environments: 500 VRMS Max.
