Pomona 3269 - BNC (F) To Double Miniature Banana Plugs

Name: Pomona 3269 - BNC (F) To Double Miniature Banana Plugs
Brand: Pomona
SKU: Pomona3269
Price: 136.95 USD
Availability: InStock

0 reviews | UPC: 095969182133 | Model: Pomona 3269

Compare

BNC (F) To Double Miniature Banana Plugs-Note:Price is for 5 Units

Allows a BNC male connection to be used with equipment having 0.5” (12.7mm) spaced miniature 0.104” (2.4mm) diameter banana jacks
Excellent for adapting test equipment to BNC coaxial cables

View Product Details

Your Price: $136.95

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 3269 Accessories

Choose a Category

Adapter Kits

for the Pomona 3269

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(8)

In Stock!

Add to Cart

Pomona 3269

Allows a BNC male connection to be used with equipment having 0.5” (12.7mm) spaced miniature 0.104” (2.4mm) diameter banana jacks
Excellent for adapting test equipment to BNC coaxial cables

BNC (F) To Double Miniature Banana Plugs

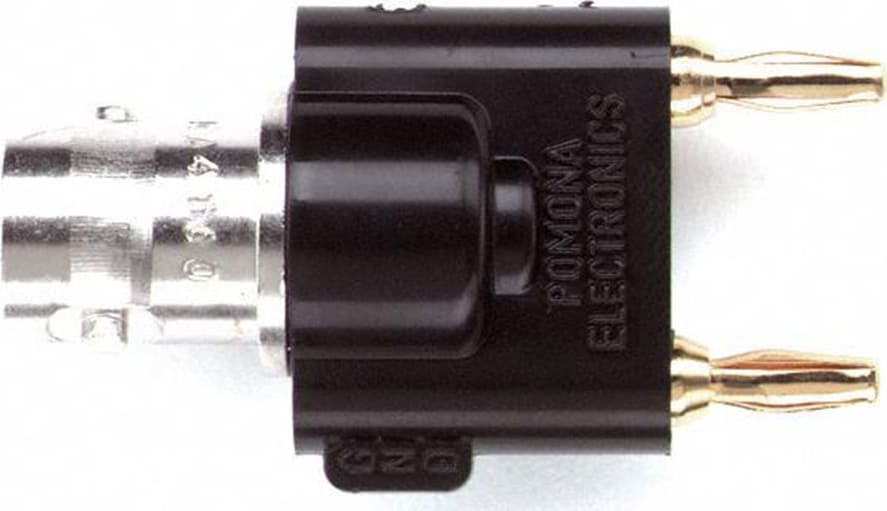

Pomona 3269 is an Adapter, BNC Female to Miniature Double Banana Plug.

Materials:

Upper Conn: BNC Female.
Finish: Tarnish Resistant
Center Contact: Gold plated
Insulation: ABS molded to BNC male and Banana Plug
Color: Black
Marking: “POMONA ELECTRONICS CALIF. 3269”
Lower Conn: Miniature Double Banana Plug
Material: Spring, Beryllium Copper
Plug Body: Brass
Finish: Gold plated

Ratings:

Operating Temperature: +50º C. (+122º F.) Max.
Operating Voltage:
Hand-Held Testing: 30VAC/60VDC Max.
Hands Free Testing in controlled voltage environments: 500 VRMS Max.
