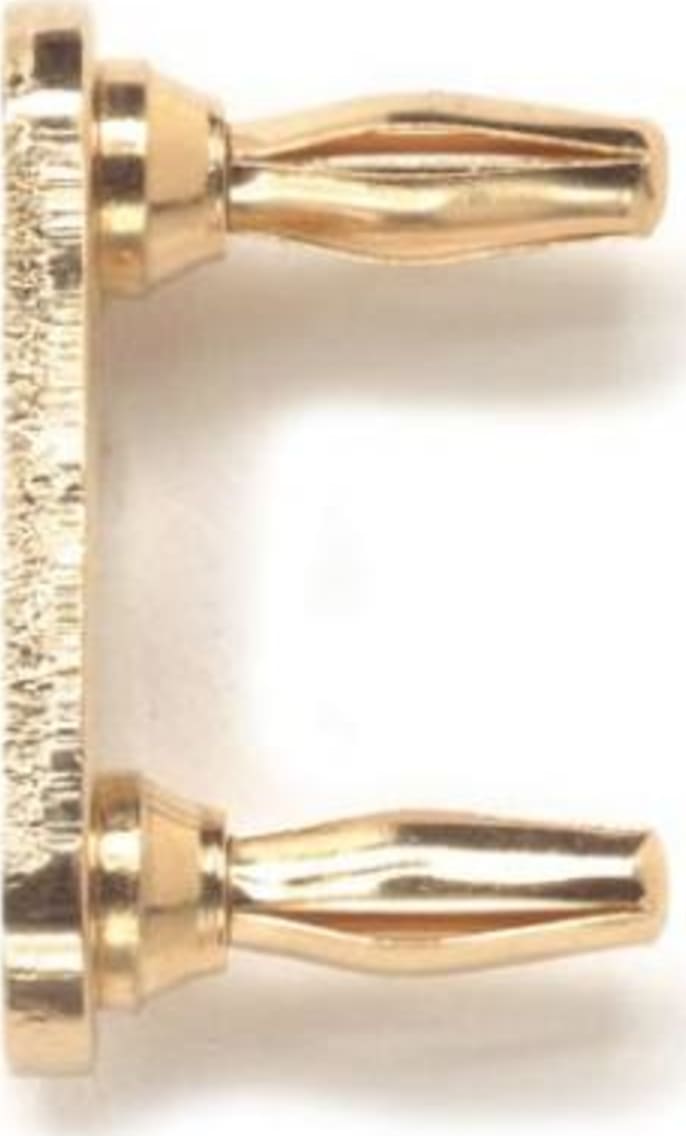

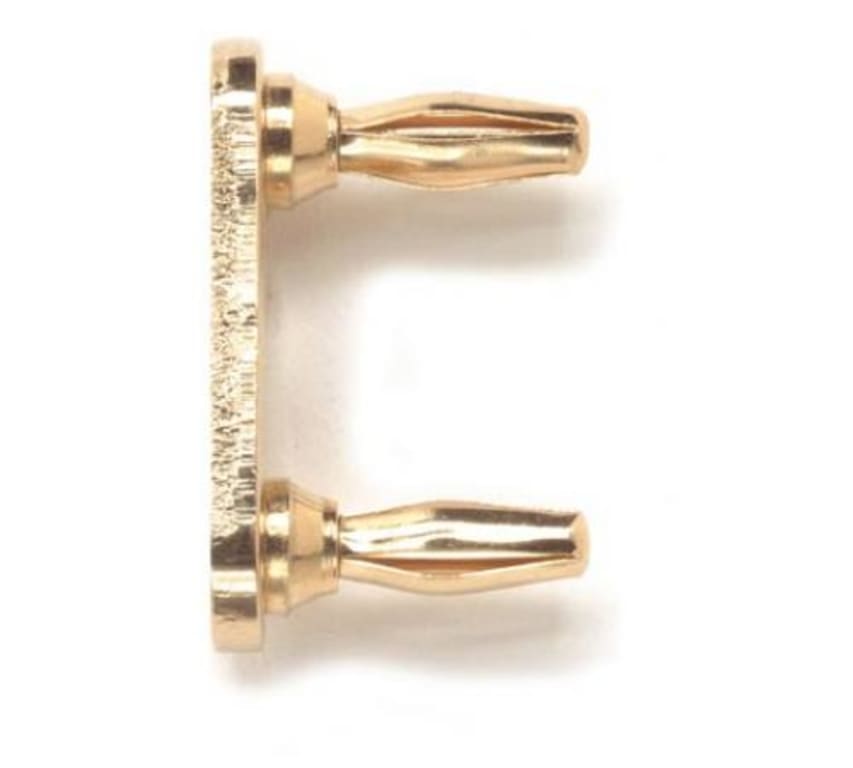

Pomona 3030 - Double Miniature Banana Plug Shorting Bar

Name: Pomona 3030 - Double Miniature Banana Plug Shorting Bar
Brand: Pomona
SKU: Pomona3030
Price: 13.59 USD
Availability: InStock

0 reviews | UPC: 095969181662 | Model: Pomona 3030

Compare

Double Miniature Banana Plug Shorting Bar

Low profile 1.6 (.062) thick brass shorting bar
Center hole accepts #4-40 screw, for easy removal.
Mates to Model # 2143 or any miniature double banana jack

View Product Details

List Price: $13.99

Your Price: $13.59

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Materials:

Shorting Bar:
Material: Brass per QQ-B-613, composition 2, ½ Hard.
Finish: Gold plated per MIL-G-45204, Type II, Class 00 over electroless nickel per MIL-C-26074, 200/300 microinches.
Miniature Double Banana Plug:
Spring:
Material: Beryllium Copper per QQ-C-533, Alloy C172, Cond. HT.
Finish: Gold plated per MIL-G-45204, Type II, Class 00 over electroless nickel per MIL-C-26074, 200/300 microinches.
