Materials:

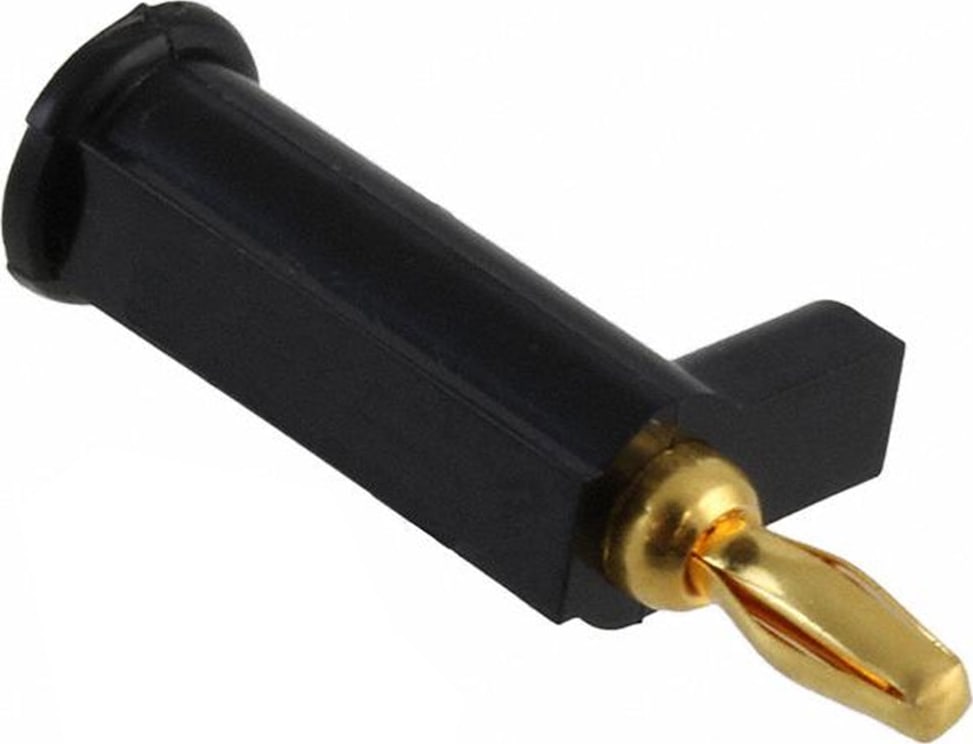

• Upper Conn.: Miniature Banana Jack
  Material: Brass per QQ-B-626, Alloy 360, ½ Hard.
  Finish: Gold plate per MIL-G-45204, Type II, Class 00 over electroless nickel per MIL-C-26074, Class 1, (.0002/.0003).
  Insulation: ABS molded to Banana Jack and Banana Plug Body.
  Marking: “POMONA ELECTRONICS, 2945”.
  Lower Conn.: Miniature Banana Plug
  Material: Plug Body – Same as above.
  Spring: Beryllium Copper per QQ-C-533, Alloy 172, Cond. H.T.
  Finish: Same as above.
  Cross Hole: 2.09 (.082) dia. with #3-56 slotted set screw to secure lead wires.









•
•
•
•
•
•

   Ratings:

• Operating Temperature: +50°C. (+122°F.)Max.
  Operating Voltage: 2500 VDC
  Current: 5 Amperes Cont.
