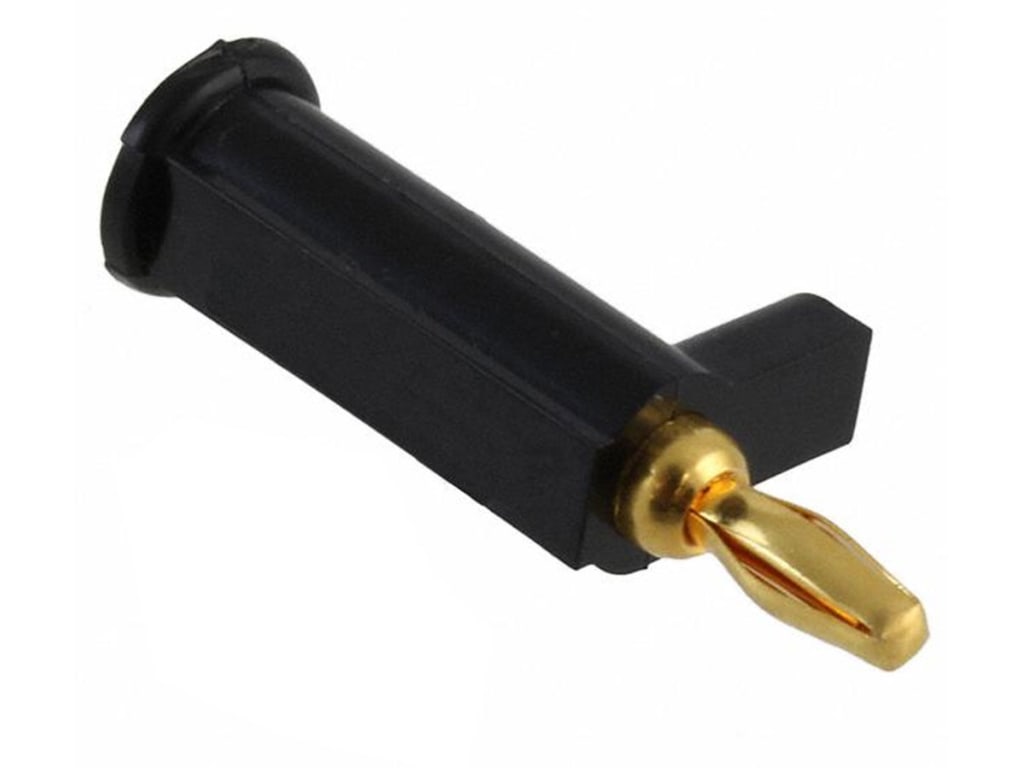

Pomona 2945-0 - Miniature Banana Plug With Safety Sleeve, Solderless, Black

Name: Pomona 2945-0 - Miniature Banana Plug With Safety Sleeve, Solderless, Black
Brand: Pomona
SKU: Pomona2945-0
Price: 6.79 USD
Availability: InStock

0 reviews | UPC: 095969180405 | Model: Pomona 2945-0

Compare

Miniature Banana Plug With Safety Sleeve, Solderless, Black

Wire firmly held in place with internal set screw
The integral collar insulates leads and acts as a strain relief by preventing the flexing of lead at set screw
Color: Black

View Product Details

List Price: $6.99

Your Price: $6.79

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 2945-0 Accessories

Choose a Category

Adapter Kits

for the Pomona 2945-0

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Pomona 2945-0

Wire firmly held in place with internal set screw.
The integral collar insulates leads and acts as a strain relief by preventing the flexing of lead at the set screw.
Color: Black

Miniature Banana Plug With Safety Sleeve, Solderless, Black

Pomona 2945-0 is a Miniature Banana Plug With Safety Sleeve. The wire is firmly held in place with an internal set screw. The integral collar insulates leads and acts as a strain relief by preventing the flexing of lead at the set screw. Color: Black

Materials:

Upper Conn.: Miniature Banana Jack
Material: Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish: Gold plate per MIL-G-45204, Type II, Class 00 over electroless nickel per MIL-C-26074, Class 1, (.0002/.0003).
Insulation: ABS molded to Banana Jack and Banana Plug Body.
Marking: “POMONA ELECTRONICS, 2945”.
Lower Conn.: Miniature Banana Plug
Material: Plug Body – Same as above.
Spring: Beryllium Copper per QQ-C-533, Alloy 172, Cond. H.T.
Finish: Same as above.
Cross Hole: 2.09 (.082) dia. with #3-56 slotted set screw to secure lead wires.

Ratings:

Operating Temperature: +50°C. (+122°F.)Max.
Operating Voltage: 2500 VDC
Current: 5 Amperes Cont.

Tech Specs

Test Equipment General Attributes
Safety Approval	CE
Product Height	1.11 IN
Product Length	0.310 IN
Product Width	0.310 IN
Country of Origin	United States
Shipping Height	0.50 IN
Shipping Length	4.50 IN
Shipping Width	4.00 IN
