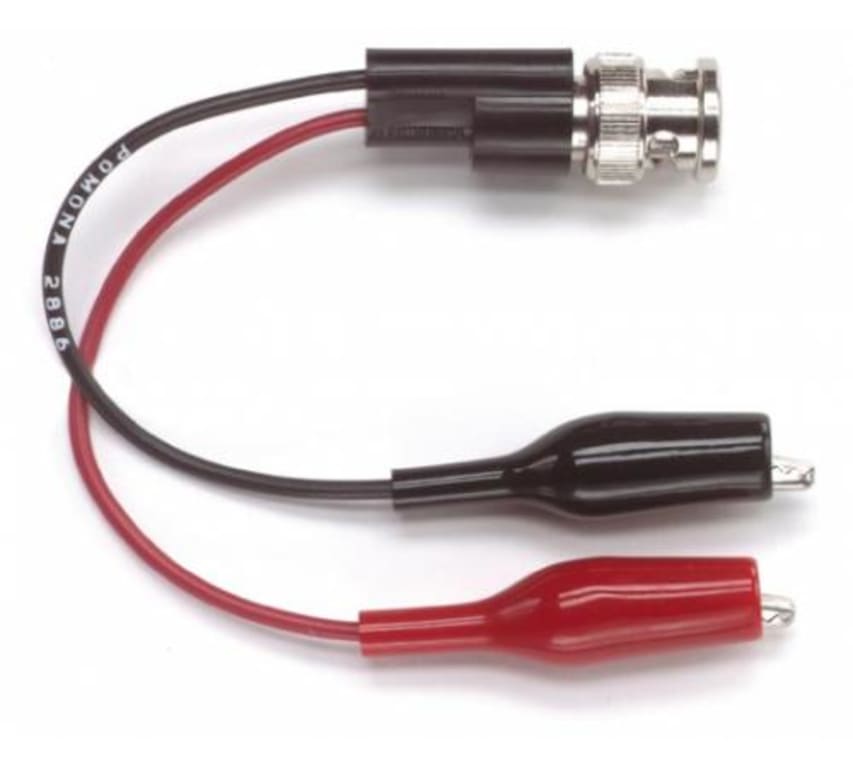

Pomona 2886 - BNC (M) To Minigator Test Clips

Name: Pomona 2886 - BNC (M) To Minigator Test Clips
Brand: Pomona
SKU: Pomona2886
Price: 139.95 USD
Availability: InStock

0 reviews | UPC: 095969180221 | Model: Pomona 2886

Compare

BNC (M) To Minigator Test Clips-Note:Price is for 5 Units

Converts BNC (female) cables / connectors to minigator test clips for test versatility.
BNC connector is molded directly to the wire for pull strength durability and dust and moisture resistance
BNC center contact is gold plated brass for corrosion resistance, low contact resistance and long insertion life.
Minigator clips attach to terminals up to .187” (4.75mm) diameter.
Black wire is connected to BNC shell, red wire to BNC center contact.

View Product Details

Your Price: $139.95

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

Converts BNC (female) cables/connectors to minigator test clips for test versatility.
BNC connector is molded directly to the wire for pull strength durability and dust and moisture resistance
BNC center contact is gold plated brass for corrosion resistance, low contact resistance and long insertion life.
Minigator clips attach to terminals up to .187” (4.75mm) diameter.
Black wire is connected to BNC shell, red wire to BNC center contact.

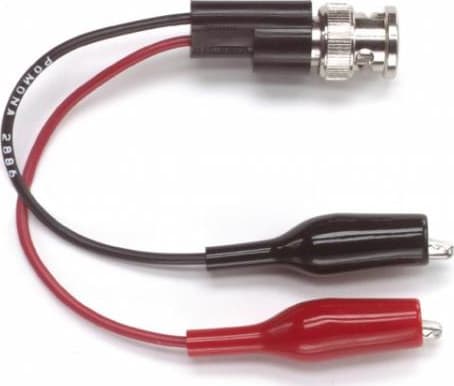

Pomona 2886 is a BNC (M) To Minigator Test Clips.

Materials:

BNC: Body - Brass, Nickel Plated
Center Contact: Beryllium Copper, Gold Plated.
Dielectric: PTFE
Wire: 20 AWG, Stranding 41 x 36 T.C., PVC Insulated, .087” (2.21 mm) O.D., Color matches alligator boots.
Marking: “POMONA 2886”
Minigators: Body – Steel, Nickel Plated
Spring: Stainless Steel
Flex Boot: Vinyl

Ratings:

Operating Voltage:
Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 150 VRMS Max.
Operating Temperature: +50°C (+122°F) Max.
