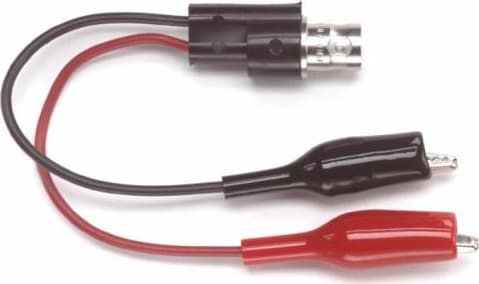

Pomona 2631 - BNC (F) To Minigator Test Clips

Name: Pomona 2631 - BNC (F) To Minigator Test Clips
Brand: Pomona
SKU: Pomona2631
Price: 89.95 USD
Availability: InStock

0 reviews | UPC: 095969207713 | Model: Pomona 2631

Compare

BNC (F) To Minigator Test Clips-Note:Price is for 5 Units

Converts BNC (male) cables / connectors to minigator test clips for test versatility
BNC connector is molded directly to the wire for pull strength durability and dust and moisture resistance.
BNC center contact is gold plated Beryllium Copper for corrosion resistance, low contact resistance and long insertion life.
Minigator clips attach to terminals up to .187” (4.75mm) diameter.
Black wire is connected to BNC shell, red wire to BNC center contact.

View Product Details

Your Price: $89.95

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

Converts BNC (male) cables/connectors to mini gator test clips for test versatility
BNC connector is molded directly to the wire for pull strength, durability, and dust and moisture resistance.
BNC center contact is gold-plated Beryllium Copper for corrosion resistance, low contact resistance, and long insertion life.
Minigator clips attach to terminals up to .187” (4.75mm) diameter.
Black wire is connected to the BNC shell and red wire to the BNC center contact.

Pomona 2631 is a BNC (F) To Minigator Test Clips.

Materials:

BNC: Nickel plated Brass
Center Contact: Gold plated Beryllium Copper
Wire: 20 AWG, PVC Insulated
Marking: “POMONA 2631”
Minigators: Nickel plated steel,
Spring: stainless steel
Flex Boot: Vinyl

Ratings:

Operating Voltage:
Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 150VRMS Max.
Operating Temperature: +50°C (+122°F) Max.
