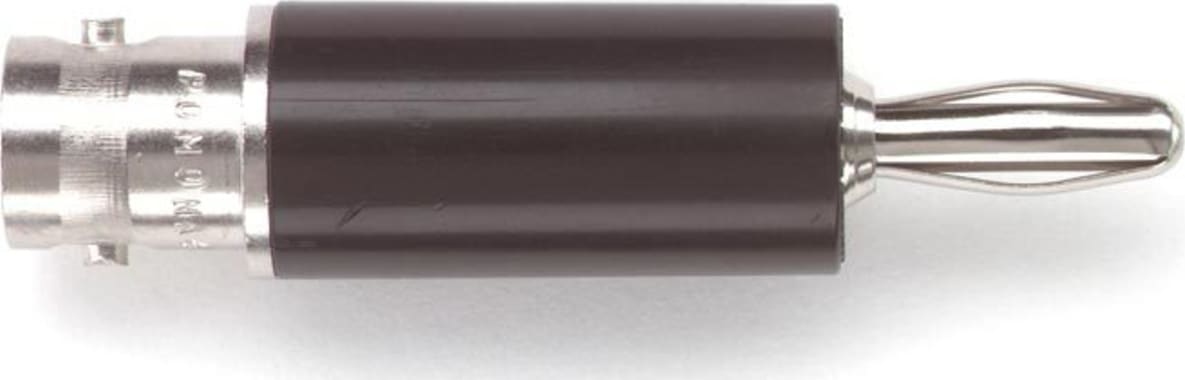

Pomona 1894 - BNC (Female) to Single Banana Plug Adapter

Name: Pomona 1894 - BNC (Female) to Single Banana Plug Adapter
Brand: Pomona
SKU: Pomona1894
Price: 15.53 USD
Availability: InStock

0 reviews | UPC: 095969207652 | Model: Pomona 1894

Compare

BNC (Female) to Single Banana Plug Adapter

Adapts banana jack test instruments for BNC Cable Assemblies.
Banana plug spring is nickel-plated Beryllium Copper and BNC spring is gold plated Beryllium Copper for low contact resistance and long insertion life.
Schematic: BNC center contact to Banana Plug, BNC shell is a no connect.

View Product Details

List Price: $15.99

Your Price: $15.53

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 1894

Adapts banana jack test instruments for BNC Cable Assemblies.
Banana plug spring is nickel-plated Beryllium Copper, and the BNC spring is gold-plated Beryllium Copper for low contact resistance and long insertion life.
Schematic: BNC center contact to Banana Plug, BNC shell is a no connect.

BNC (Female) to Single Banana Plug Adapter

Pomona 1894 is a BNC (Female) to Single Banana Plug Adapter.

MATERIALS
BNC Female	Body - Brass, Nickel Plated, Female Spring - Beryllium Copper, Gold Plated.
Insulation	ABS, Color - Black, Marking: "1894 Pomona Electronics, Calif."
Banana Plug	Body - Brass, Nickel Plated, Spring - Beryllium Copper, Nickel Plated
RATINGS
Operating Temperature	+50°C (+122°F)
Operating Voltage
	Hand-held testing	30VAC/60VDC Max.
	Hands free testing in controlled voltage environments	500 VRMS Max.
