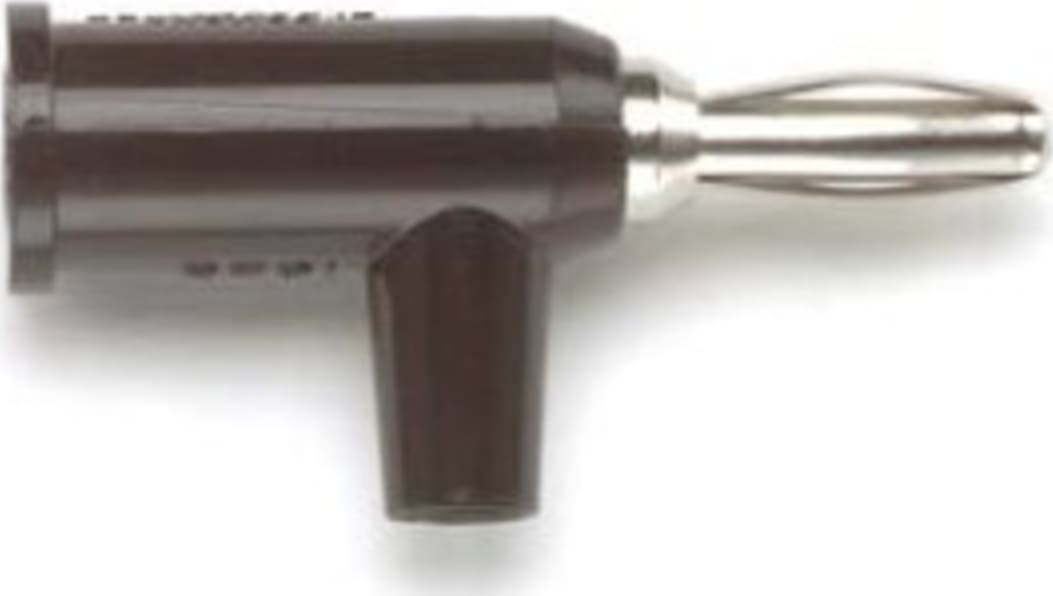

Pomona 1825-02 - Standard Banana Plug, Solderless and Stackable, W/Set Screw (Set)

Name: Pomona 1825-02 - Standard Banana Plug, Solderless and Stackable, W/Set Screw (Set)
Brand: Pomona
SKU: Pomona1825-02
Price: 6.79 USD
Availability: InStock

0 reviews | UPC: 095969187503 | Model: Pomona 1825-02

Compare

Standard Banana Plug, Solderless, and Stackable, W/Set Screw (Set)

Designed to fit on the end of any 22 AWG to 18 AWG wire.
Cross hole wire entry fits wires up to .12” (3mm) diameter.
Available with tarnish resistant nickel or gold plating for very low contact resistance.
Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver.
Fits standard panel and binding post banana jacks .161” to .166” (4,0mm to 4,2mm) diameter.

View Product Details

List Price: $6.99

Your Price: $6.79

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 1825-02 Accessories

Choose a Category

Adapter Kits

for the Pomona 1825-02

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Pomona 1825-02

Designed to fit on the end of any 22 AWG to 18 AWG wire.
Cross hole wire entry fits wires up to .12” (3mm) diameter.
Available with tarnish-resistant nickel or gold plating for very low contact resistance.
Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver.
Fits standard panel and binding post banana jacks .161” to .166” (4,0mm to 4,2mm) diameter.

Standard Banana Plug, Solderless, and Stackable, W/Set Screw (Set)

Pomona 1825-02 Banana Plug With Safety Collar is designed to fit on the end of any 22 AWG to 18 AWG wire. It is nickel-plated with Polypropylene insulation.

MATERIALS
Banana Jack	Beryllium Copper, Gold Plated
Banana Plug	Body: Brass, Nickel Plated
Spring	Beryllium Copper, Nickel Plated
Insulation	ABS, Marking "POMONA ELECTRONICS" & Part Number
Set Screw (8-32 Single Slot)	Steel, Zinc Plated
RATINGS
Operating Voltage
	Hand-held Testing	30VAC/60VDC Max.
	Hand Free Testing in controlled Voltage Environment	5000 WVDC.
Current	15 Amperes Max.
Operating Temperature	+50°C (+122°F), Model 4899 +150°C (+302°F)

Tech Specs

Test Equipment General Attributes
Safety Approval	CE
Country of Origin	United States
Shipping Height	0.50 IN
Shipping Length	4.00 IN
Shipping Width	4.00 IN
