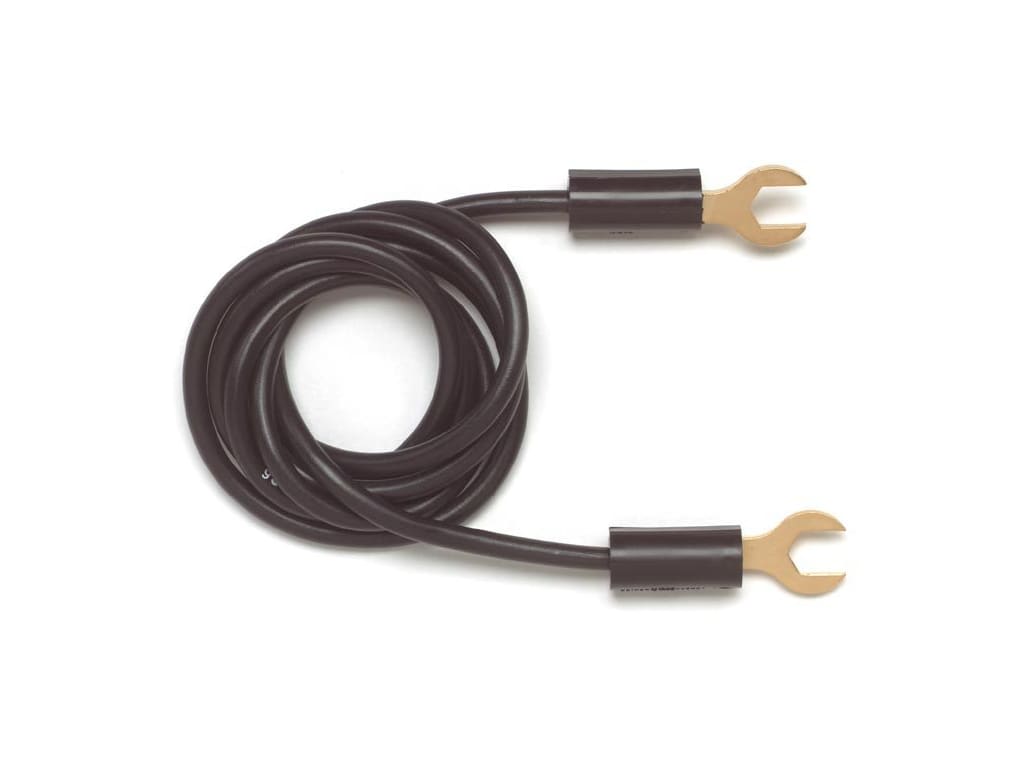

Pomona 1693-60-0 - Spade Lug Patch Cord For Low Thermal EMF Measurements, 60", Black

Name: Pomona 1693-60-0 - Spade Lug Patch Cord For Low Thermal EMF Measurements, 60", Black
Brand: Pomona
SKU: Pomona1693-60-0
Price: 164.95 USD
Availability: InStock

0 reviews | UPC: 095969189255 | Model: Pomona 1693-60-0

Compare

Spade Lug Patch Cord For Low Thermal EMF Measurements, 60", Black-Note:Price is for 5 Units

The Model 1693 is part of a family of test accessories ideal for low voltage precision measurements.
Spade lugs of high conductivity gold plated ETP copper alloy 110, are attached to low resistance multi-stranded 12 gauge wire.
Spade lugs of high conductivity gold plated ETP copper alloy 110, are attached to low resistance multi-stranded 12 gauge wire.
Thermal EMF is generated at the junction of dissimilar metals at different temperatures and is a common source of error in low micro and nano volt measurements.
Cable length: 60 inches
Color: Black

View Product Details

Your Price: $164.95

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 1693-60-0

The Model 1693 is part of a family of test accessories ideal for low voltage precision measurements.
Spade lugs of high conductivity gold plated ETP copper alloy 110 are attached to low resistance multi-stranded 12 gauge wire.
Therma1 EMF is generated at the junction of dissimilar metals at different temperatures and is a common source of error in low micro and nano-volt measurements.
Cable length: 60 inches
Color: Black

Spade Lug Patch Cord For Low Thermal EMF Measurements, 60", Black

Pomona 1693-60-0 is a Spade Lug Patch Cord For Low Thermal EMF Measurements that is 60 inches and is Black in color.

MATERIALS
Spade Lugs	ETP (Electrolytic Tough Pitch) 110 Copper Alloy, 1/2 Hard, Gold Plated
Insulation	Polypropylene, molded to spade lug body and wire. Color matches wire.
Marking	POMONA ELECTRONICS CALIF.
Wire	12 AWG; Stranding 7 x 38/36 Bare Copper, PVC Insulated, .144" (3,66 mm) O.D.
Marking	Model 1693-*
RATINGS
Operating Voltage	2000 VRMS/DC
Operating Temperature	+55°C. (+131°F) Max.
Current	20 Amperes Continuous
