• Designed to fit on the end of any 22 AWG to 18 AWG wire.
• Cross hole wire entry fits wires up to .12” (3mm) diameter
• Set screw clamps wire firmly with a flat blade screwdriver
• Available with tarnish-resistant nickel or gold plating for very low contact resistance
• Set screw simplifies assembly of test leads and jumpers

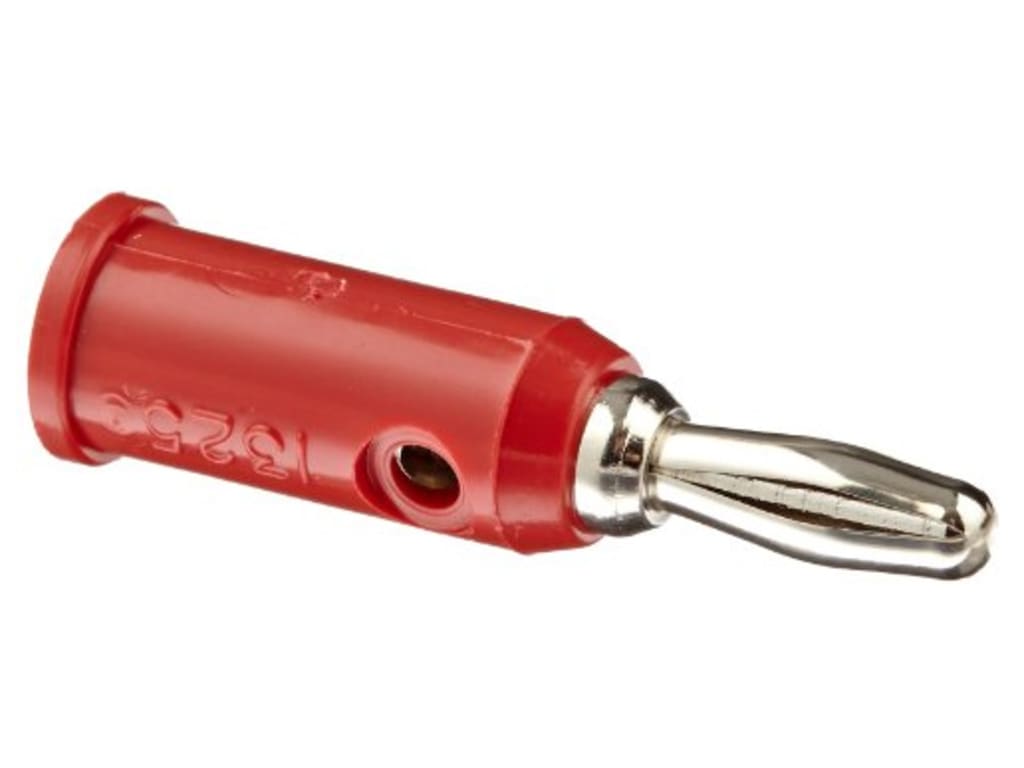

Pomona 1325-2 Do-It-Yourself Solderless Stackup Banana Plug is designed to fit on the end of any 22 AWG to 18 AWG wire.

Ratings

Voltage:

For CE compliance and for personal safety, do not hold in hand when voltages exceed 33 Vrms/70 Vdc.

Maximum voltage for hands-free use in controlled testing environments: 5000 Vrms Max.

Do not use it on circuits where transient stresses can exceed the rated voltage.

Current: 15 Amps

Maximum Operating Temperature: +122ºF (+50ºC) max. (Model 5230: +302ºF (+150ºC) max.)
