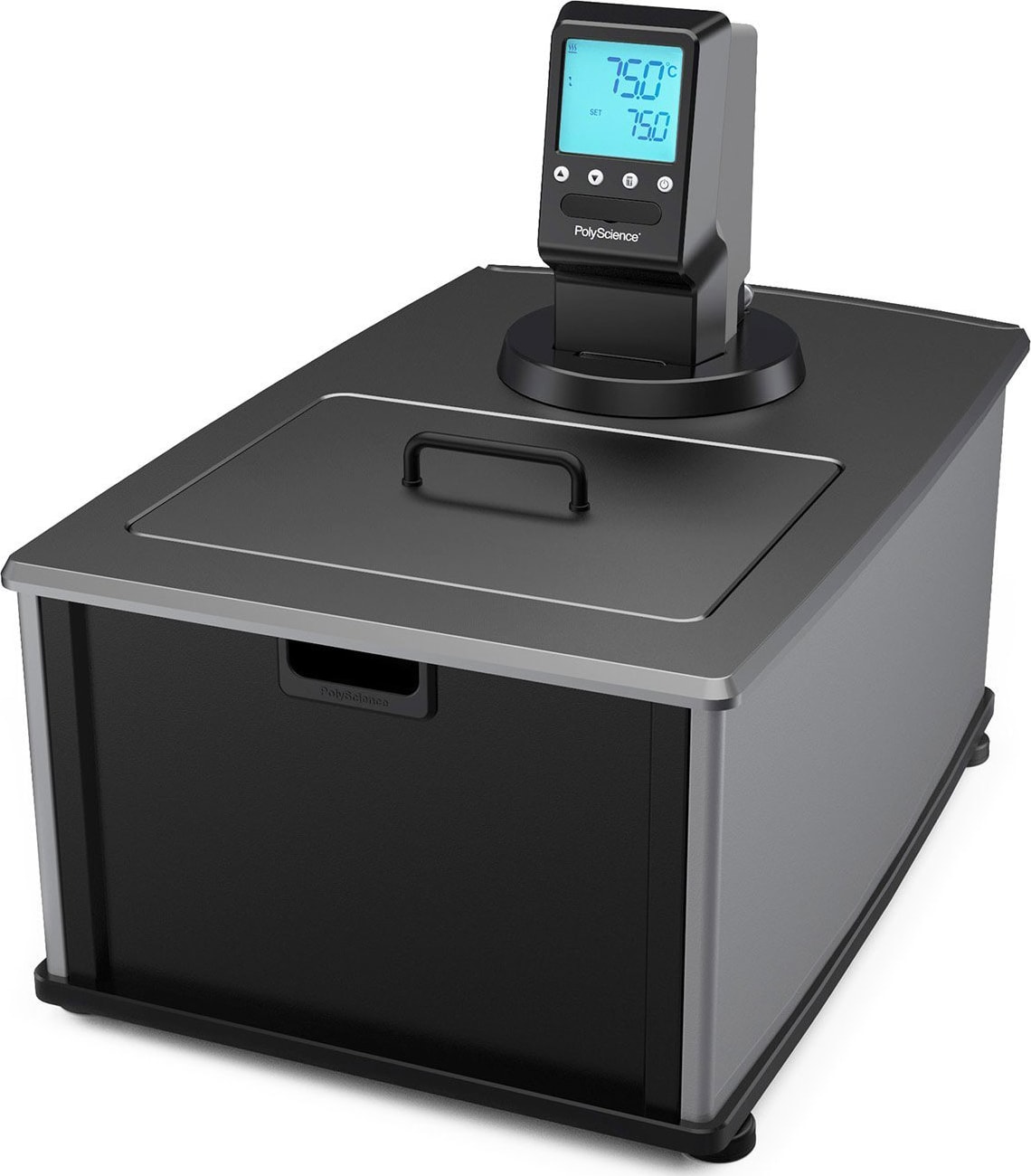

PolyScience MX15H135-A12E 15L Heated Circulator, MX (Ambient +10 to 135 deg C), 240V, 50Hz

Name: PolyScience MX15H135-A12E 15L Heated Circulator, MX (Ambient +10 to 135 deg C), 240V, 50Hz
Brand: PolyScience
SKU: PolyscienceMX15H135-A12E
Price: 2620.00 USD
Availability: InStock

0 reviews | Model: PolyScience MX15H135-A12E

PolyScience MX15H135 15L Integrated Heated Circulating Baths with MX Temperature Controller

Compare

15L Heated Circulator, MX (Ambient +10 Degrees to 135 Degrees C), 240V, 50Hz

Large, universal icon and English display
On-screen prompts
Single-point calibration capability

View Product Details

Your Price: $2,620.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	PolyScience MX15H135-A12E 15L Heated Circulator, MX (Ambient +10 Degrees to 135 Degrees C) ...	PolyScience AP15H200-A11B 15L Heated Circulator, Advanced Programmable (Ambient +10 Degree ...	PolyScience AD15H200-A11B 15L Heated Circulator, Advanced Digital (Ambient +10 Degrees to ...	PolyScience AP15H200-A12E 15L Heated Circulator, Advanced Programmable (Ambient +10 Degree ...	PolyScience AD15H200-A12E 15L Heated Circulator, Advanced Digital (Ambient +10 Degrees to ...	PolyScience MX15H135-A11B 15L Heated Circulator, MX (Ambient +10 Degrees to 135 Degrees C) ...	PolyScience SD15H170-A12E 15L Heated Circulator, Standard Digital (Ambient +10 Degrees to ...	PolyScience SD15H170-A11B 15L Heated Circulator, Standard Digital (Ambient +10 Degrees to ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

PolyScience MX15H135-A12E Accessories

Choose a Category

General Accessories

for the PolyScience MX15H135-A12E

PolyScience 004-300040 polyclean CLARIFIER - 8 oz

Catalog: 004-300040

(1)

In Stock!

Add to Cart

PolyScience 060305-2 Fitting, 1/4 male NPT x 5/16 (8 mm) hose barb, straight, brass, 2...

Catalog: 060305-2

(0)

In Stock!

Add to Cart

PolyScience 300-047 Fitting, 1/4 male NPT x 3/8 (9.5 mm) hose barb, nylon

Catalog: 300-047

(0)

In Stock!

Add to Cart

PolyScience 300-048 Fitting, 1/4 male NPT x 1/4 (6 mm) hose barb, nylon

Catalog: 300-048

(0)

In Stock!

Add to Cart

PolyScience 300-049 Fitting, 1/4 male NPT x 3/16 (5 mm) hose barb, nylon

Catalog: 300-049

(0)

In Stock!

Add to Cart

PolyScience 300-096 Fitting, 1/2 male NPT x 1/2 (13 mm) hose barb, nylon, straight...

Catalog: 300-096

(0)

In Stock!

Add to Cart

PolyScience 510-495 Bypass Kit, for higher temperature, Viton tubing, 1/2 x 6 with...

Catalog: 510-495

(0)

In Stock!

Add to Cart

PolyScience 510-666 Flow adapter, two (2) port manifold w/shut offs, brass 1/4 male...

Catalog: 510-666

(0)

In Stock!

Add to Cart

PolyScience 510-713 Bypass Kit, silicone tubing, 1/2 ID x 6, MX Controllers only

Catalog: 510-713

(0)

In Stock!

Add to Cart

PolyScience 60306 Fitting, 1/4 male NPT x 1/8 (3 mm) hose barb, brass

Catalog: 060306

(0)

In Stock!

Add to Cart

PolyScience 60307 Buna N Tubing (synthetic rubber), 1/4 (6 mm) ID, -40 Degrees to 120...

Catalog: 060307

(0)

In Stock!

Add to Cart

PolyScience 60310 Teflon -lined Tubing, 1/4 (6 mm) stainless steel overbraid with 1/4...

Catalog: 060310

(0)

In Stock!

Add to Cart

PolyScience 60326 polytherm S150 (Temperature Range: 50 Degrees to 150 Degrees C), 1...

Catalog: 060326

(0)

In Stock!

Add to Cart

PolyScience 60327 polytherm S200 (Temperature Range: 100 Degrees to 200 Degrees C), 1...

Catalog: 060327

(0)

In Stock!

Add to Cart

PolyScience 60328 polytherm S250 (Temperature Range: 150 Degrees to 250 Degrees C), 1...

Catalog: 060328

(0)

In Stock!

Add to Cart

PolyScience 775-290 Fitting, 1/4 male NPT x M16x1, stainless steel

Catalog: 775-290

(0)

In Stock!

Add to Cart

PolyScience MX15H135-A12E - 15 Liters Heated Circulator, MX (Ambient +10 to 135C), 240V, 50Hz

Large, universal icon and English display
On-screen prompts
Single-point calibration capability

PolyScience Circulating Bath with MX Temperature Controller. It is intended for the precise temperature control of suitable liquids in a reservoir. Extremely easy to use and maintain, it combines design innovation with highly intuitive operation to deliver convenient and versatile liquid temperature control for a wide range of applications.

Controls & Components: MX Temperature Controller

Controls & Components: Refrigerating/Heating Baths

Controls & Components: Heating Only Baths

	7 Liter Refrigerated Circulator, -20°C	7 Liter Low Profile Refrigerated Circulator, -20°C	15 Liter Refrigerated Circulator, -30°C	20 Liter Refrigerated Circulator, -30°C
Working Temperature Range	-20° to 135° C	-20° to 135° C	-30° to 135° C	-30° to 135° C
Nominal Cooling Capacity @ +20C (W)	200	200	915	915
Heater Wattage	1100 W (60Hz) 1100 W (50Hz)	1100 W (60Hz) 1100 W (50Hz)	1100 W (60Hz) 1100 W (50Hz)	1100 W (60Hz) 1100 W (50Hz)
60Hz Part Number	MX07R-20-A11B	MX7LR-20-A11B	MX15R-30-A11B	MX20R-30-A11B
50Hz Part Number	MX07R-20-A12E	MX7LR-20-A12E	MX15R-30-A12E	MX20R-30-A12E

Dependable & Intuitive Operation

An economical choice for routine laboratory applications, the MX Temperature Controller delivers powerful circulation along with ±0.07°C temperature stability.

Three control buttons and plain-text on-screen prompts make the setup and operation of the MX Temperature Controller easy and straightforward.

Safe

User-settable high-temperature safety provides over-temperature and low liquid level protection. Patented, integrated design protects pump and heater while simplifying cleaning and maintenance.

Key Specifications
Description	135, 15 L Htg. Circulator
Controller Type	MX
Display	3.25" LCD
Languages Supported	English
Working Temperature Range °C	Ambient +10° to 135°
Temperature Stability °C	±0.07°
Temperature Calibration Capability	1-point
Working Access (L x W x D) (cm)	21.2 x 27.6 x 14 cm
Pump Type	Pressure
Flammability Class (DIN 12876-1)	I (NFL)

Common Specifications
Working Temperature Range °F	Ambient + 20° to 275°
Working Temperature Range °C	Ambient +10° to 135°
Reservoir Capacity (gallons)	3.96
Reservoir Capacity (liters)	15
Reservoir/Tank Material	Stainless Steel
Reservoir Cover	Included
DuraTop	Yes
LidDock	Yes
Working Access (L x W x D) (inches)	8.35 x 10.88 x 5.5 in
Working Access (L x W x D) (cm)	21.2 x 27.6 x 14 cm
Temperature Stability °F	±0.13°
Temperature Stability °C	±0.07°
Display	3.25" LCD
Display Resolution (Set)	0.1
Display Resolution (Read)	0.1
Pump Type	Pressure
Pump Speed	One
Process Connections	1/2" O.D. Barbed Tubes
Flammability Class (DIN 12876-1)	I (NFL)
Over-Temperature Protection / Failsafe Heater Control	Yes
Low Liquid Level Protection	Yes
Reservoir Drain	Yes
Cooling Coil	Yes
Maximum Ambient Temperature °F	95°
Maximum Ambient Temperature °C	35°
Overall Dimensions (L x W x H) (inches)	22.4 x 14.5 x 17.8 in
Overall Dimensions (L x W x H) (cm)	56.9 x 36.8 x 45.2 cm
Environmental Compliance	RoHS, WEEE
Shipping Weight (pounds)	56.0
Shipping Weight (kilograms)	25.4

60 Hz Only
Part Number	MX15H135-A11B
Maximum Pressure (psi)	2.3
Maximum Pressure (bar)	0.16
Maximum Pressure Flow Rate (gpm)	3.60
Maximum Pressure Flow Rate (l/min)	13.5
Included Hardware	Fitting Kit for External Applications
Heater Wattage	1100
Electrical Requirements (VAC/Hz/Ph/A)	120/60/1/10
Regulatory Approvals	ETL

50 Hz Only
Part Number	MX15H135-A12E
Maximum Pressure (psi)	1.8
Maximum Pressure (bar)	0.12
Maximum Pressure Flow Rate (gpm)	3.10
Maximum Pressure Flow Rate (l/min)	11.9
Included Hardware	Fitting Kit for External Applications
Heater Wattage	1100
Electrical Requirements (VAC/Hz/Ph/A)	240/50/1/6
Regulatory Approvals	CE

Tech Specs

Test Equipment General Attributes
Product Height	23.00 IN
Product Length	20.00 IN
Product Width	29.00 IN
HTS/Schedule B Number	8419.89.9540
Country of Origin	United States
Shipping Height	23.00 IN
Shipping Length	20.00 IN
Shipping Width	29.00 IN
