Common Specifications |
Working Temperature Range °F |
-4° to 212° |
Working Temperature Range °C |
-20° to 100° |
Nominal Cooling Capacity @ +20C (W) |
1400 |
Reservoir Capacity (gallons) |
19.81 |
Reservoir Capacity (liters) |
75 |
Reservoir/Tank Material |
Stainless Steel |

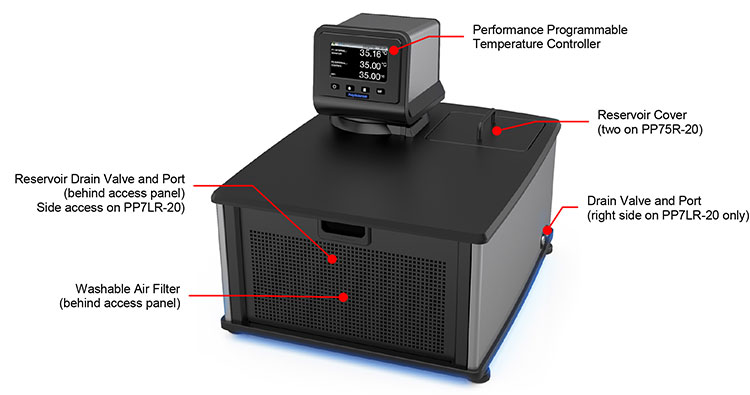

Reservoir Cover |
Included |
DuraTop |
Yes |
Cleanable Air Filter |
Yes |
Working Access (L x W x D) (inches) |
21.6 x 15.7 x 9.4 in |
Working Access (L x W x D) (cm) |
54.9 x 39.8 x 23.9 cm |
Temperature Stability °F |
±0.01° |
Temperature Stability °C |
±0.005° |

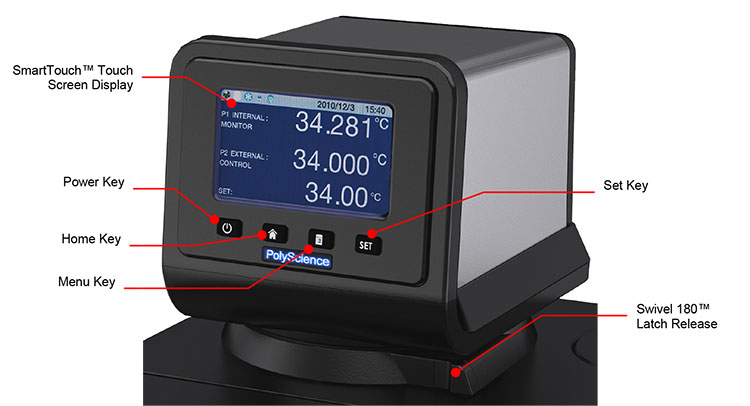

Display |
4.3" SmartTouch Touchscreen |
Display Resolution (Set) |
0.01 |
Display Resolution (Read) |
0.001 |
Pump Type |
Pressure/Suction |
Pump Speed |
Variable |
Process Connections |
1/4" (F) NPT |
Flammability Class (DIN 12876-1) |
III (FL) |
Over-Temperature Protection / Failsafe Heater Control |
Yes |
Low Liquid Level Protection |
Yes |
WhisperCool Environmental Control Technology |
Yes |
Cool Command Refrigeration Technology |
Yes |
Reservoir Drain |
Yes |
Included Software |
PolyTemp Viewer, TDMS file viewer, USB driver, PolyScience LabVIEW Virtual Instrument & Functions, Time/Temperature Program Generator, PolyTemp Remote iPhone application |
Maximum Ambient Temperature °F |
95° |
Maximum Ambient Temperature °C |
35° |
Overall Dimensions (L x W x H) (inches) |
35.8 x 22.4 x 42.1 in |
Overall Dimensions (L x W x H) (cm) |
90.9 x 56.9 x 107 cm |
Environmental Compliance |
RoHS, WEEE |
Shipping Weight (pounds) |
200.0 |
Shipping Weight (kilograms) |
90.6 |
Catalog Page Number |
74 |
60 Hz Only |
Part Number |
AP75R-20-A13D |
Maximum Pressure (psi) |
4.3 |
Maximum Pressure (bar) |
0.30 |
Maximum Pressure Flow Rate (gpm) |
5.30 |
Maximum Pressure Flow Rate (l/min) |
20.1 |
Maximum Suction Flow Rate (gpm) |
3.9 |
Maximum Suction Flow Rate (l/min) |
14.7 |
Cooling Capacity @ -20°C (W) |
250 |
Cooling Capacity @ 0°C (W) |
800 |
Cooling Capacity @ +20°C (W) |
1400 |
Cooling Capacity @ +100°C (W) |
1400 |
Included Hardware |
PT100 temperature probe, USB drive, stainless steel hose adapters for 3/8", 1/4", and 3/16" |
Electrical Requirements (VAC/Hz/Ph/A) |
208-240/50/60/1/13 |
Regulatory Approvals |
ETL |
50 Hz Only |
Part Number |
AP75R-20-A12E |
Maximum Pressure (psi) |
3.6 |
Maximum Pressure (bar) |
0.25 |
Maximum Pressure Flow Rate (gpm) |
4.40 |
Maximum Pressure Flow Rate (l/min) |
16.7 |
Maximum Suction Flow Rate (gpm) |
3.2 |
Maximum Suction Flow Rate (l/min) |
12.2 |
Cooling Capacity @ -20°C (W) |
250 |
Cooling Capacity @ 0°C (W) |
800 |
Cooling Capacity @ +20°C (W) |
1400 |
Cooling Capacity @ +100°C (W) |
1400 |
Included Hardware |
PT100 temperature probe, USB drive, stainless steel hose adapters for 3/8", 1/4", and 3/16", and 1/4" NPT to M16 adapter |
Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/13 |
Regulatory Approvals |
CE |
