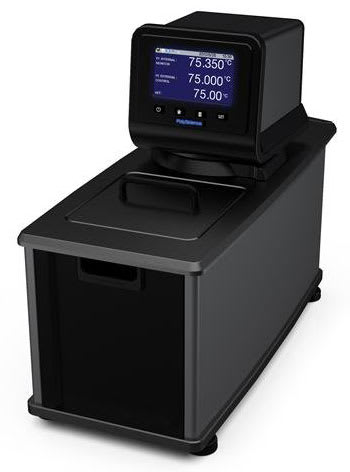

PolyScience AP07H200-A11B 7L Heated Circulator, Advanced Programmable (Ambient +10 Degree to 200 Degree C), 120V, 60Hz

Name: PolyScience AP07H200-A11B 7L Heated Circulator, Advanced Programmable (Ambient +10 Degree to 200 Degree C), 120V, 60Hz
Brand: PolyScience
SKU: PolyscienceAP07H200-A11B
Price: 4253.00 USD
Availability: InStock

0 reviews | Model: PolyScience AP07H200-A11B

PolyScience AP07H200 Integrated Heated Circulating Baths with Advanced Programmable Temperature Controller

Compare

7L Heated Circulator, Advanced Programmable (Ambient +10 Degrees to 200 Degrees C), 120V, 60Hz

OpenMode time/temperature programming (no restrictions on number of programs or steps)
Intuitive 4.3” (10.9 cm) SmartTouch display
11 languages: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English
Variable speed pump with open- and closed-loop external circulation capability
Swivel 180™ Rotating Controller
On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485, remote on/off and external temperature probe
Event scheduling (time & date) with real-time clock
Review temperature trends for up to 10 days
Multiple selectable “home” screens
On-screen help
Automatic and/or user-adjustable performance optimization
10-point calibration capability
Includes Enhanced Performance Hardware & Software Package (Pt100 temperature probe, USB flash drive for data logging, stainless steel fittings and tubing adapters, PolyScience LabVIEW Virtual Instrument, iPhone application download)

View Product Details

Your Price: $4,253.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	PolyScience AP07H200-A11B 7L Heated Circulator, Advanced Programmable (Ambient +10 Degrees ...	PolyScience AP07H200-A12E 7L Heated Circulator, Advanced Programmable (Ambient +10 Degrees ...	PolyScience AD07H200-A11B 7L Heated Circulator, Advanced Digital (Ambient +10 Degrees to 2 ...	PolyScience SD07H170-A11B 7L Heated Circulator, Standard Digital (Ambient +10 Degrees to 1 ...	PolyScience MX07H135-A11B 7L Heated Circulator, MX (Ambient +10 Degrees to 135 Degrees C), ...	PolyScience AD07H200-A12E 7L Heated Circulator, Advanced Digital (Ambient 10 Degrees to 2 ...	PolyScience SD07H170-A12E 7L Heated Circulator, Standard Digital (Ambient +10 Degrees to 1 ...	PolyScience MX07H135-A12E 7L Heated Circulator, MX (Ambient +10 Degrees to 135 Degrees C), ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

PolyScience AP07H200-A11B Accessories

Choose a Category

for the PolyScience AP07H200-A11B

PolyScience 225-173 RS232 Cable, 9.8 (3 m)

Catalog: 225-173

(0)

In Stock!

Add to Cart

PolyScience 225-669 USB-A to Mini-B, 6 (1.8 m)

Catalog: 225-669

(0)

In Stock!

Add to Cart

PolyScience 225-670 Ethernet Cable, 7 (2.1 m)

Catalog: 225-670

(0)

In Stock!

Add to Cart

PolyScience 004-300040 polyclean CLARIFIER - 8 oz

Catalog: 004-300040

(1)

In Stock!

Add to Cart

PolyScience 060305-2 Fitting, 1/4 male NPT x 5/16 (8 mm) hose barb, straight, brass, 2...

Catalog: 060305-2

(0)

In Stock!

Add to Cart

PolyScience 300-047 Fitting, 1/4 male NPT x 3/8 (9.5 mm) hose barb, nylon

Catalog: 300-047

(0)

In Stock!

Add to Cart

PolyScience 300-049 Fitting, 1/4 male NPT x 3/16 (5 mm) hose barb, nylon

Catalog: 300-049

(0)

In Stock!

Add to Cart

PolyScience 510-495 Bypass Kit, for higher temperature, Viton tubing, 1/2 x 6 with...

Catalog: 510-495

(0)

In Stock!

Add to Cart

PolyScience 510-666 Flow adapter, two (2) port manifold w/shut offs, brass 1/4 male...

Catalog: 510-666

(0)

In Stock!

Add to Cart

PolyScience 510-670 In-line Pt100 Temperature Sensor, brass, 10 (3 m) cable

Catalog: 510-670

(0)

In Stock!

Add to Cart

PolyScience 60306 Fitting, 1/4 male NPT x 1/8 (3 mm) hose barb, brass

Catalog: 060306

(0)

In Stock!

Add to Cart

PolyScience 60307 Buna N Tubing (synthetic rubber), 1/4 (6 mm) ID, -40 Degrees to 120...

Catalog: 060307

(0)

In Stock!

Add to Cart

PolyScience 60310 Teflon -lined Tubing, 1/4 (6 mm) stainless steel overbraid with 1/4...

Catalog: 060310

(0)

In Stock!

Add to Cart

PolyScience 60326 polytherm S150 (Temperature Range: 50 Degrees to 150 Degrees C), 1...

Catalog: 060326

(0)

In Stock!

Add to Cart

PolyScience 60327 polytherm S200 (Temperature Range: 100 Degrees to 200 Degrees C), 1...

Catalog: 060327

(0)

In Stock!

Add to Cart

PolyScience 60328 polytherm S250 (Temperature Range: 150 Degrees to 250 Degrees C), 1...

Catalog: 060328

(0)

In Stock!

Add to Cart

PolyScience 775-290 Fitting, 1/4 male NPT x M16x1, stainless steel

Catalog: 775-290

(0)

In Stock!

Add to Cart

PolyScience 525-876 External Pt100 Probe, Cable length: 2 (0.6 m)

Catalog: 525-876

(0)

In Stock!

Add to Cart

Polyscience AP07H200-A11B 7L Heated Circulator, Advanced Programmable

Intuitive 4.3" (10.9 cm) SmartTouch display
Swivel 180-degree Rotating Controller
Event scheduling (time & date) with real-time clock
On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485, remote on/off and external temperature probe

It is intended for the precise temperature control of suitable liquids in a reservoir. Extremely easy to use and maintain, it combines design innovation with highly intuitive operation to deliver convenient and versatile liquid temperature control for a wide range of applications.

Key Specifications
Description	200, 7 L Htg. Circulator
Controller Type	Advanced Programmable
Display	4.3" SmartTouch Touchscreen
Connectivity	Ethernet, USB A & B, RS232/addressable RS485, External Temperature Probe
Languages Supported	6: French, German, Spanish, Chinese, Arabic, English
Time/Temperature Programs & Steps	Ten 100-step programs
Swivel 180 Rotating Controller	Yes
Working Temperature Range °C	Ambient +10° to 200°
Temperature Stability °C	±0.01°
Fluid Optimization/Specific Heat Tuning	Automatic and/or user-adjustable
Temperature Calibration Capability	5-point
Working Access (L x W x D) (cm)	15.7 x 14.2 x 12.7 cm
Pump Type	Pressure/Suction
External Temperature Control Capability	Yes
Flammability Class (DIN 12876-1)	III (FL)

Common Specifications
Working Temperature Range °F	Ambient + 20° to 392°
Working Temperature Range °C	Ambient +10° to 200°
Reservoir Capacity (gallons)	1.85
Reservoir Capacity (liters)	7
Reservoir/Tank Material	Stainless Steel
Reservoir Cover	Included
DuraTop	Yes
LidDock	Yes
Working Access (L x W x D) (inches)	6.18 x 5.59 x 5 in
Working Access (L x W x D) (cm)	15.7 x 14.2 x 12.7 cm
Temperature Stability °F	±0.02°
Temperature Stability °C	±0.01°
Display	4.3" SmartTouch Touchscreen
Display Resolution (Set)	0.01
Display Resolution (Read)	0.001
Pump Type	Pressure/Suction
Pump Speed	Variable
Process Connections	1/4" (F) NPT
External Temperature Control Capability	Yes
Flammability Class (DIN 12876-1)	III (FL)
Over-Temperature Protection / Failsafe Heater Control	Yes
Low Liquid Level Protection	Yes
Reservoir Drain	Yes
Cooling Coil	Yes
Included Software	PolyTemp Viewer, TDMS file viewer, USB driver, Time/Temperature Program Generator, PolyTemp Remote iPhone application
Maximum Ambient Temperature °F	95°
Maximum Ambient Temperature °C	35°
Overall Dimensions (L x W x H) (inches)	19.6 x 8.7 x 16.1 in
Overall Dimensions (L x W x H) (cm)	49.9 x 22.1 x 40.9 cm
Environmental Compliance	RoHS, WEEE
Shipping Weight (pounds)	42.0
Shipping Weight (kilograms)	19.0

60 Hz Only
Part Number	AP07H200-A11B
Maximum Pressure (psi)	4.3
Maximum Pressure (bar)	0.30
Maximum Pressure Flow Rate (gpm)	5.30
Maximum Pressure Flow Rate (l/min)	20.1
Maximum Suction Flow Rate (gpm)	3.9
Maximum Suction Flow Rate (l/min)	14.7
Included Hardware	Nylon hose adapters for 3/8", 1/4", and 3/16"
Heater Wattage	1100
Electrical Requirements (VAC/Hz/Ph/A)	120/60/1/10
Regulatory Approvals	ETL

50 Hz Only
Part Number	AP07H200-A12E
Maximum Pressure (psi)	3.6
Maximum Pressure (bar)	0.25
Maximum Pressure Flow Rate (gpm)	4.40
Maximum Pressure Flow Rate (l/min)	16.7
Maximum Suction Flow Rate (gpm)	3.2
Maximum Suction Flow Rate (l/min)	12.2
Included Hardware	Nylon hose adapters for 3/8", 1/4", and 3/16", and 1/4" NPT to M16 adapter
Heater Wattage	2200
Electrical Requirements (VAC/Hz/Ph/A)	240/50/1/10
Regulatory Approvals	CE

Tech Specs

Test Equipment General Attributes
Product Height	23.00 IN
Product Length	15.00 IN
Product Width	28.00 IN
HTS/Schedule B Number	8419.89.9540
Country of Origin	United States
Shipping Height	23.00 IN
Shipping Length	15.00 IN
Shipping Width	28.00 IN
