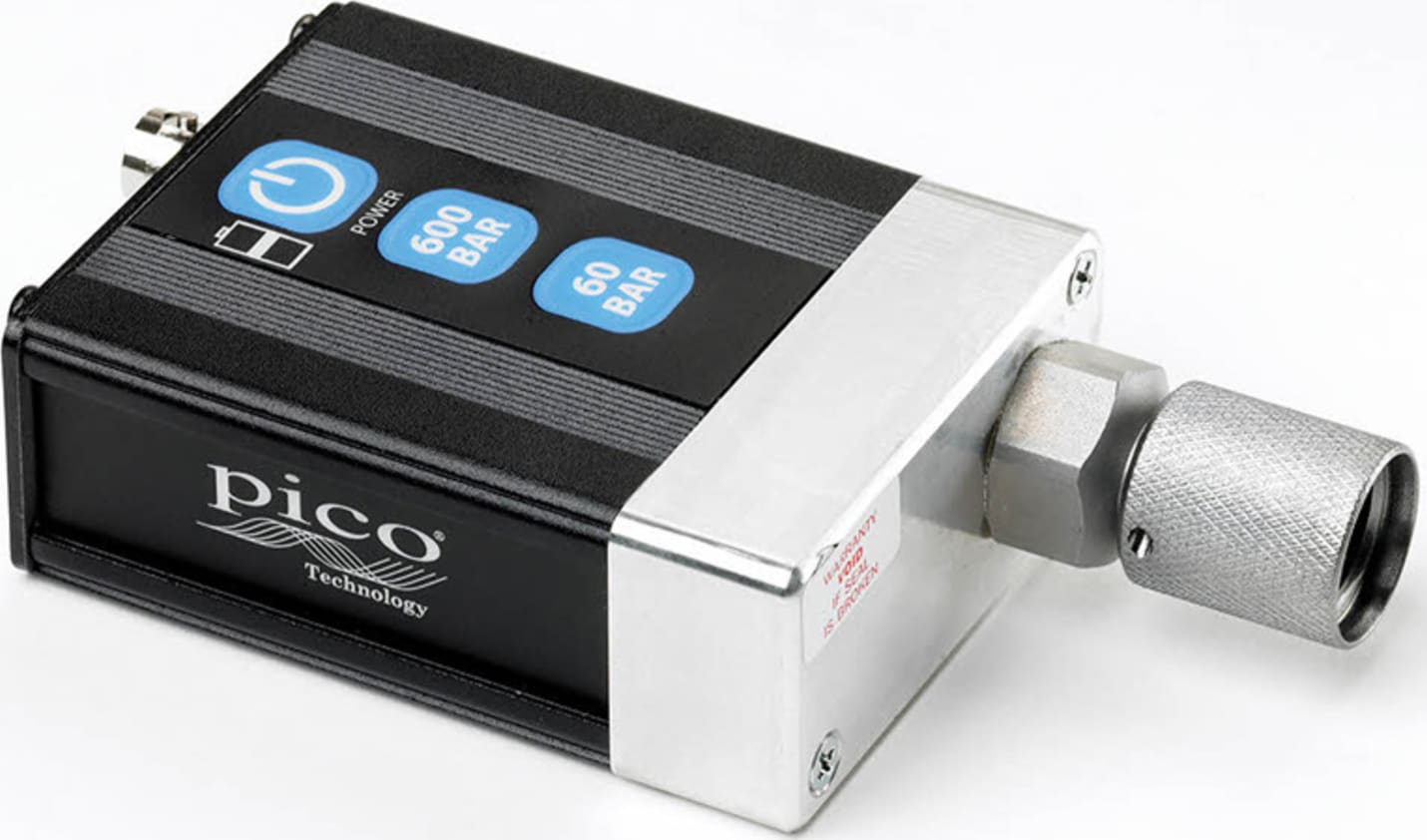

Pico WPS600 Pressure Transducer Kit.

• Accurately measure up to 600 bar (8700 psi)
• Ultra-fast 100 microsecond response time (0% to 90% of full scale)
• Internal rechargeable LiPo battery
• Industry Standard M16 x 2 Test point connector
• Auto zeroing

With high accuracy and a wide measuring range, the WPS600 Hydraulic Pressure Transducer connects to your PicoScope for convenient analysis and diagnosis of pressurised systems.

The WPS600 diagnostic pressure transducer allows quick and accurate pressure analysis of hydraulic systems.
It offers these features:

• high resolution and accuracy
• zero adjustment
• two pressure ranges:
  • 600 bar / 60 MPa / 8700 psi
  • 60 bar / 6 MPa / 870 psi

Compatible fluid types
The WPS600 is designed for use with hydraulic fluids. Do not use with any other type of liquid or gas.

Pressure ranges

Two pressure ranges for increased versatility
The two pressure ranges of the WPS600 allow accurate measurement and diagnosis of permanent and non-permanent automotive and industrial hydraulic systems.

Range 1
The first range, 0 to 600 bar (approximately 8700 psi) gives you high resolution and accuracy for high-pressure tests in hydraulic systems.

Range 2
The second range measures from 0 to 60 bar (approximately 870 psi). This range is ideal for low-pressure hydraulic systems and oil pumps.

The parts of your WPS600 pressure transducer

Front-panel controls
