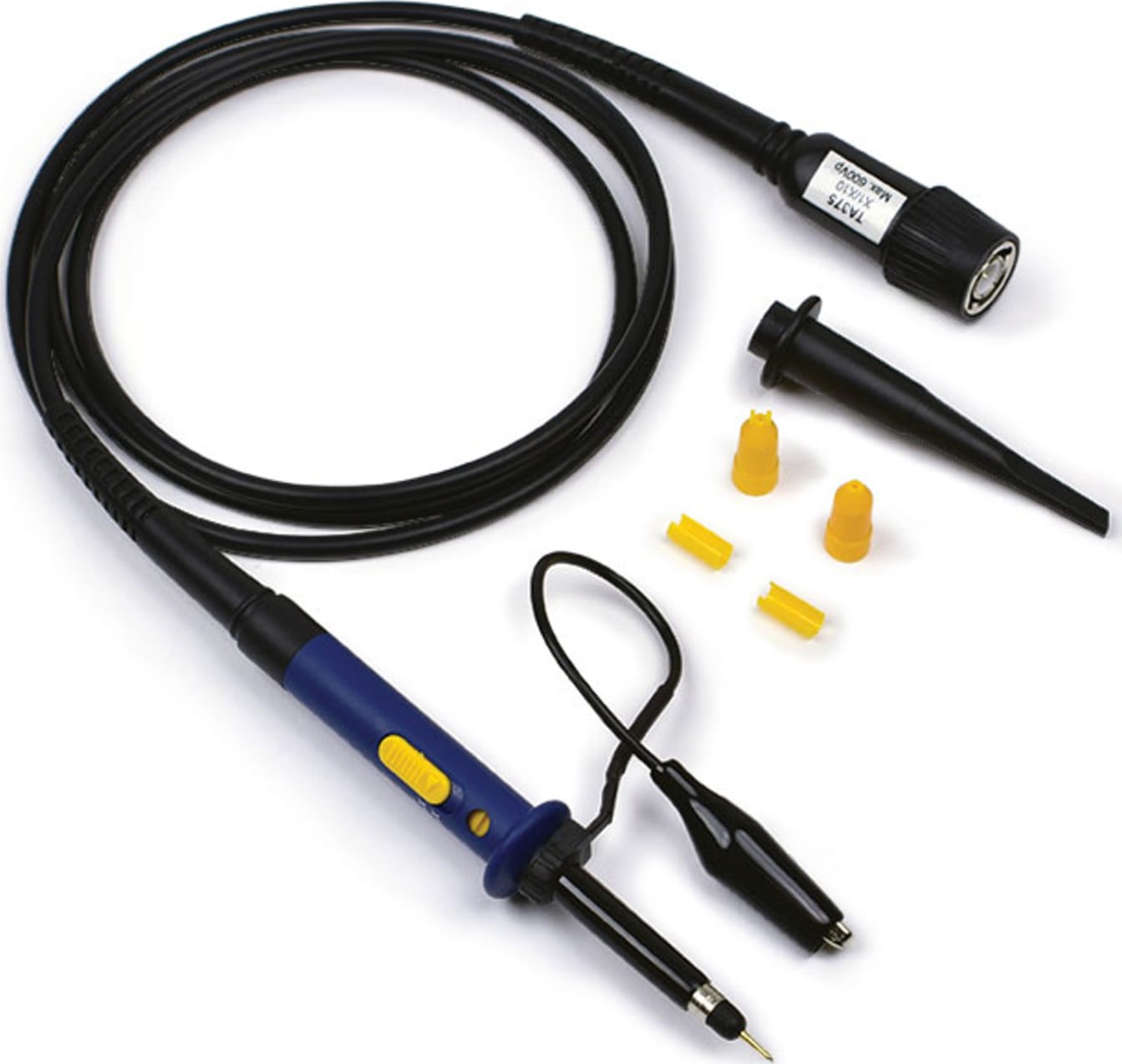

Pico TA375 - 100 MHz Switchable Passive Oscilloscope Probe, BNC

Name: Pico TA375 - 100 MHz Switchable Passive Oscilloscope Probe, BNC
Brand: Pico
SKU: PicoTA375
Price: 30.00 USD
Availability: InStock
Rating: 4.00 (2 reviews)

4 (2 Reviews) | Catalog: TA375 | Model: Pico TA375

Compare

100 MHz Switchable Passive Oscilloscope Probe, BNC

Redesigned probe tip allows removal and refitting of replacement tips
Replacement TA385 spring tips and TA384 rigid tips are available separately
Redesigned probe hook accessory fitting
Upgraded high durability probe cable

View Product Details

Your Price: $30.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pico TA375 Accessories

Choose a Category

Oscilloscope Probe Accessories

for the Pico TA375

Pico TA384 Replacement rigid probe tips for TA375 and TA386, Qty 5

Catalog: TA384

(0)

In Stock!

Add to Cart

Pico TA385 Replacement spring probe tips for TA375 and TA386, Qty 5

Catalog: TA385

(0)

In Stock!

Add to Cart

Pico TA375

Redesigned probe tip allows removal and refitting of replacement tips
Replacement TA385 spring tips and TA384 rigid tips are available separately
Redesigned probe hook accessory fitting
Upgraded high-durability probe cable

100 MHz Switchable Passive Oscilloscope Probe, BNC

Pico's ergonomically designed passive oscilloscope probes are suitable for use with all major brands of oscilloscopes as well as the PicoScope range of USB Oscilloscopes. Passive probes don't require a power supply or batteries so are lightweight and easily portable.

The TA375 is a passive switchable oscilloscope probe, with a bandwidth of 100 MHz. This probe is an upgraded version of TA132 which includes many improvements to enhance durability, ease of use, and performance.

Voltage v Frequency Rating Curve

Frequency compensation

Before taking any measurements using the probe, first, check its compensation and adjust it to match the channel inputs.

Connect the probe to a 2 V pk-pk, 1 kHz square wave source. Most PicoScope oscilloscopes have a signal generator output marked GEN or AWG, which you can configure to generate such a signal. Set the switch on the probe to the X10 position. Adjust the trimmer until you see a flat-top square wave on the display.

TA375 Specifications
Slide switch position	X1	X10
Attenuation ratio	1:1	10:1
Bandwidth	10 MHz	100 MHz
Rise time (calculated)	35 ns	3.5 ns
Input resistance	1 MΩ*	10 MΩ ± 2%
Input capacitance	57 pF + CS**	15 pF
Max. working voltage	42.4 V pk	600 V pk-pk
Compensation as shipped		15 pF
Compensation range		10 to 35 pF
Total length	1.2 m nominal
Weight	About 55 g

* equal to input resistance of oscilloscope
** scope capacitance

Test Equipment General Attributes
Shipping Weight	0.18 LBS
HTS/Schedule B Number	90309000
ECCN Number	3A992
Country of Origin	China

4

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

Pico TA375

3.0

Good probes. Delayed shipment

on Nov 06, 2020

Recommend to a Friend

Pico TA375 oscilloscope probes

5.0

Nice small product with two ranges of attenuation selection.

Serfoji on Oct 15, 2020
