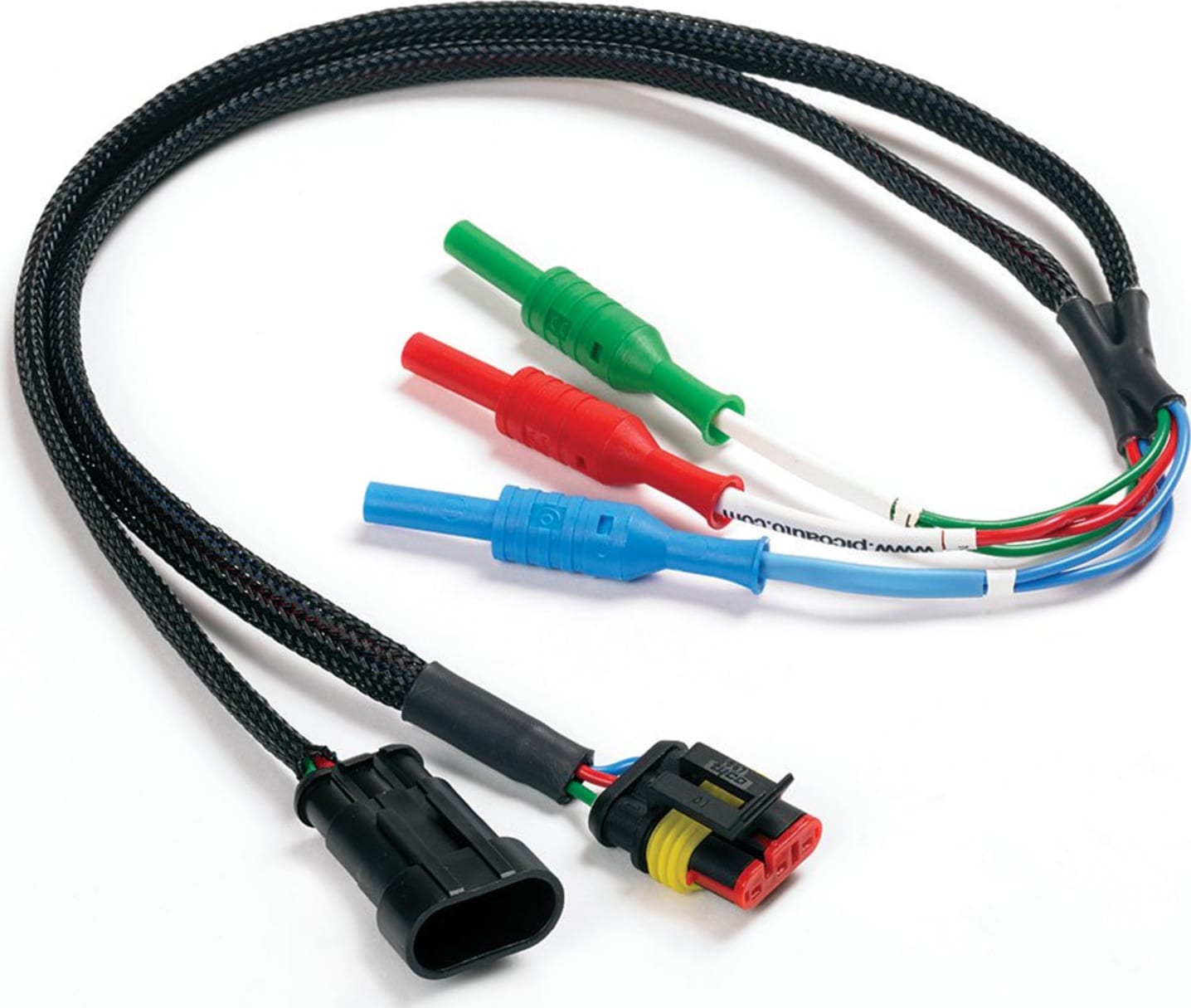

Pico connector breakout lead enables you to take voltage readings from the numerous sensors and actuators in the engine compartment. Simply connect the breakout lead into the existing cable loom, and then take the output signal from the 4 mm banana plugs into the automotive oscilloscope using one of the TA125 to TA128 premium test leads. The breakout cable gives access to the individual wires to allow probing with current clamps. For example, this allows both injector current and injector voltage to be captured.

Note: the test lead is required to convert the 4 mm banana plug connection on the connector breakout leads to a BNC connector suitable for plugging into the PicoScope.


Connecting the connector breakout leads

Please read these instructions before using the connector breakout leads.

The signal pins must be identified by wiring diagrams or other means.

Regardless of the number of pins, Pico connector breakout lead colors are manufactured as follows:

• Pin 1 - Green
• Pin 2 - Red
• Pin 3 - Blue
• Pin 4 - Yellow
• Pin 5 - White
• Pin 6 - Black

It may be possible to cause a short circuit to the oscilloscope unit if incorrect connections are made! A short circuit could seriously damage the unit and will require it to be repaired at your own cost.
