Pico TA044 70 MHz, 700 V Differential Oscilloscope Probe

Name: Pico TA044 70 MHz, 700 V Differential Oscilloscope Probe
Brand: Pico
SKU: PicoTA044
Price: 1075.00 USD
Availability: InStock
Rating: 4.00 (1 reviews)

4 (1 Review) | Catalog: TA044 | Model: Pico TA044

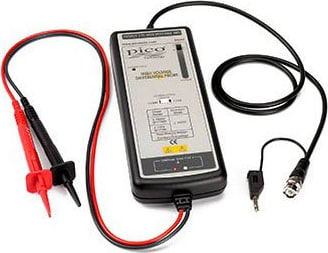

Pico TA044 70 MHz 7000 V differential oscilloscope probe

Compare

Active differential probe 7000V, 70MHz x 100/1000, CAT I

70 MHz Bandwidth
7000 V Differential Oscilloscope Probe 100:1/1000:1
Is an Active Differential Probe suitable for high common-mode voltage
Measurement Applications up to ±7000 V (DC + peak AC)
It can be used with signal speeds of up to 70 MHz
For Use With all Makes & Models of Oscilloscopes

View Product Details

Your Price: $1,075.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Pico TA044 Active differential probe 7000V, 70MHz x 100/1000, CAT I	Pico TA041 Active differential probe 700V, 25MHz, x10/100, CAT III	Pico TA262 SMA (F-M) 10dB attenuator 10 GHz
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Pico TA044 70 MHz 7000 V differential oscilloscope probe 100:1/1000:1

The TA044 is an active differential probe suitable for high common-mode voltage measurement applications up to ±7000 V (DC + peak AC).

This differential probe extends the functionality of standard single-ended input oscilloscopes to allow a safe and accurate method of making high-voltage differential measurements. Applications include making safe measurements in power circuit applications and acquisition of low-speed balanced differential signals found in serial communications buses.

Specifications
Model	TA044 Differential Oscilloscope Probe
Bandwidth	DC to 70 MHz (–3 dB)
Attenuation ratio	100:1/1000:1
Accuracy	±2%
Input impedance	10 M Ω // 10 pF each side to ground
Input voltage
Differential range* (100:1) max. differential* (1000:1)	±700 V (DC + peak AC) or 700 V RMS ±7000 V (DC + peak AC) or 5000 V RMS
Common mode range	±7000V (DC + peak AC) or 2500 V RMS (100:1 & 1000:1)
Absolute max. voltage (common mode)	±7000 V (DC + peak AC) or 2500 V RMS (100:1 & 1000:1)
Absolute max. voltage (differential mode)	±7000 V (DC + peak AC) or 5000 V RMS (100:1 & 1000:1)
Output voltage
Swing	±7V into 50 kΩ load
Offset (typical)	<±5 mV
Noise (typical)	0.9 mV RMS
Source impedance (typical)	50 Ω
CMRR (typical)	80 dB @ 60 Hz; 50 dB @ 1 MHz
Ambient operating temperature	–10 to 40°C
Ambient storage temperature	–30 to 70°C
Power requirements
Standard	4xAA cells or 6 V DC / 200 mA mains adaptor or regulated 9 V DC / 120 mA mains adaptor
Length of input leads	60 cm
Length of BNC lead	90 cm
Weight	500 g
Dimension (LxWxH)	202 mm x 83 mm x 38 mm

Accessories/Probes/Oscilloscope Probes/Active Differential Oscilloscope Probes Template
Bandwidth	70 MHz
Maximum Differential Input Voltage	7000 V
Current Type (Scope probes)	AC / DC, DC
Test Equipment General Attributes
Product Weight	500 GRAMS (1.10 LBS)
Product Height	1.50 IN
Product Length	7.95 IN
Product Width	3.27 IN
HTS/Schedule B Number	90309000
ECCN Number	3A992.a
Battery Type	9v, AA
Country of Origin	Taiwan
Shipping Height	2.00 IN
Shipping Length	12.50 IN
Shipping Width	8.95 IN
