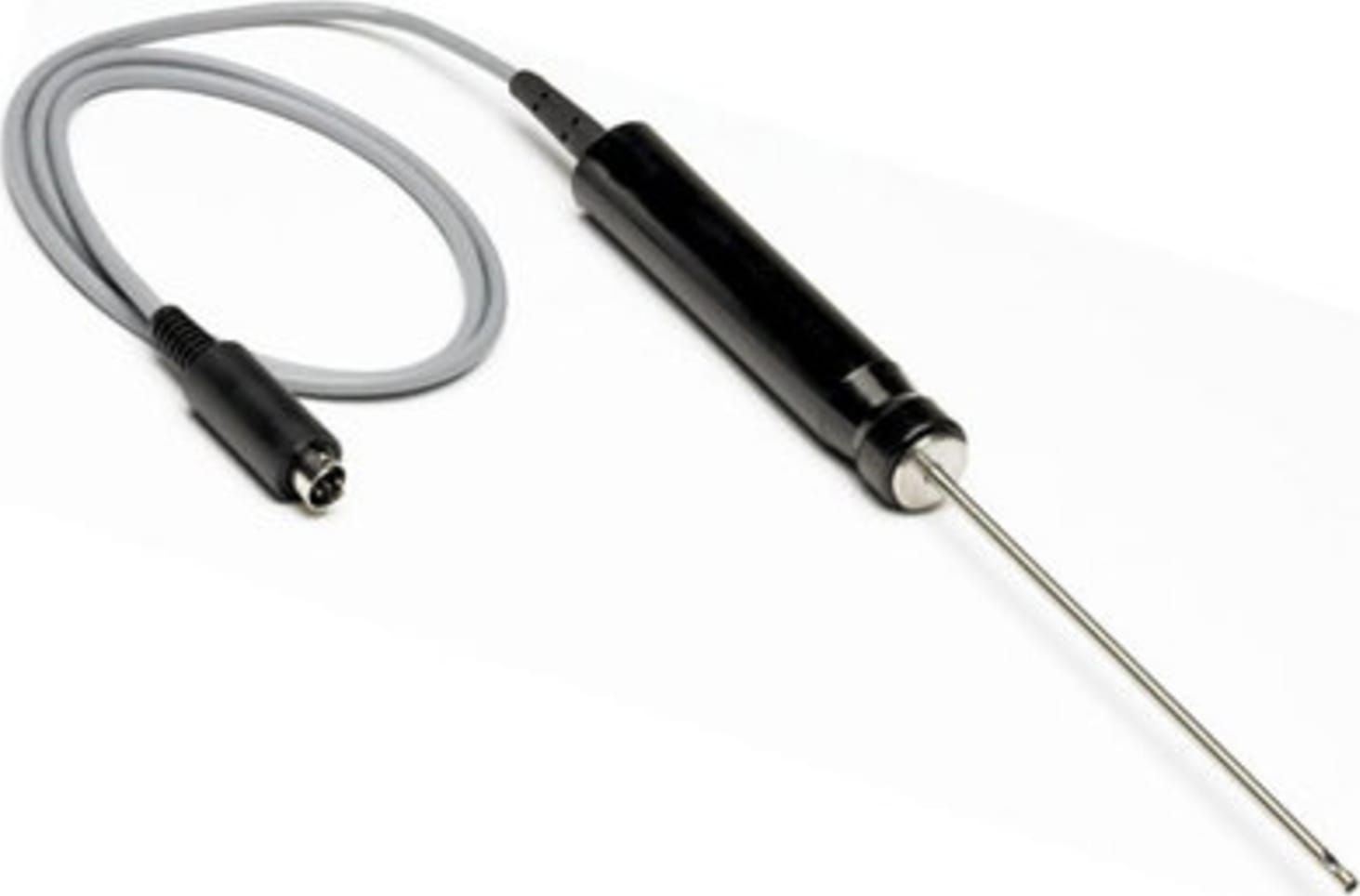

Pico SE019 PT100 Low Cost Probe, 1m

Name: Pico SE019 PT100 Low Cost Probe, 1m
Brand: Pico
SKU: PicoSE019
Price: 57.00 USD
Availability: InStock

0 reviews | Catalog: SE019 | Model: Pico SE019

Compare

PT100 probe, low cost, 1 m

PT100 Low Cost Probe, 1m
A low-cost platinum resistance thermometer probe
For use in general applications

View Product Details

Your Price: $57.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Pico SE019 PT100 probe, low cost, 1 m	Pico SE011 PT100 probe, general purpose, 2 m	Pico SE012 PT100 probe, 1/10 DIN accuracy, 2 m	Pico SE014 PT100 probe, immersion, 1 m	Pico SE015 PT100 Insertion Probe, 1 m	Pico SE016 PT100 Insertion Probe Heavy Duty, 1 m	Pico SE017 PT100 Air Probe Fast Response, 1 m	Pico SE018 PT100 Air Probe High Temperature, 1 m	Pico SE041 PT100 probe, high-temperature stainless steel braided cable, 2 m
Price
In Stock
Probe Length	4.72 IN	5.9 IN	5.9 IN	4.7 IN	4.7 IN	5.9 IN	4.72 IN	5.9 IN	5.9 IN
Lead Length	39.37 IN (25.40 MM)	78.7 IN (25.40 MM)	78.7 IN (25.40 MM)	39 IN (25.40 MM)	39 IN (25.40 MM)	39 IN (25.40 MM)	78.74 IN (25.40 MM)	78.74 IN (25.40 MM)	78.74 IN (25.40 MM)
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

PT100 Probe, Low Cost, 1m

The SE019 is a low-cost platinum resistance thermometer probe for use in general applications.

PT100 Sensors

These PT100 sensors are supplied with connectors ready for use with the Pico PT-104. For use with other PT100 measuring devices the connector may have to be removed.

PT100 sensors to interface direct to the Pico PT-104 4-channel Pt100 temperature data acquisition unit. Stainless steel probe. 4 pin miniDIN connector (fitted).

Specifications
Model	SE019 PT100 Probe
Temperature range	–75 to +260 °C
Accuracy	±0.15 °C @ 0 °C Class A
Dimensions Length Diameter Cable	120 mm 3 mm 1 m
Material	Stainless steel probe, PVC cable
Handle	Yes
Connector	4-pin mini-DIN
