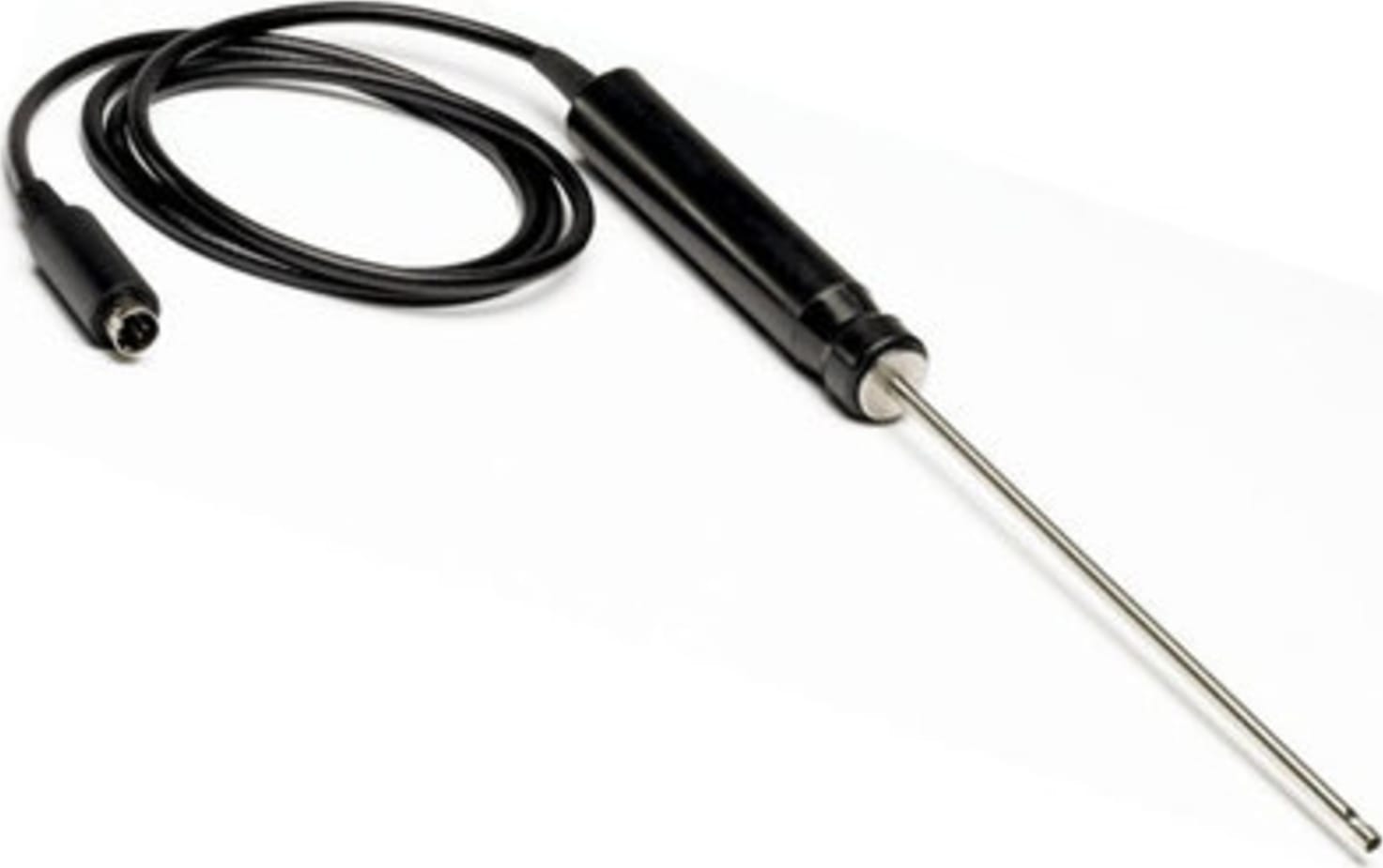

Pico SE018 PT100 Air Probe High Temperature, 1m

Name: Pico SE018 PT100 Air Probe High Temperature, 1m
Brand: Pico
SKU: PicoSE018
Price: 95.00 USD
Availability: InStock

0 reviews | Catalog: SE018 | Model: Pico SE018

Compare

PT100 Air Probe High Temperature, 1 m

PT100 Air Probe High Temperature, 1m
Is a wide temperature range platinum resistance thermometer probe
For measuring air temperature

View Product Details

Your Price: $95.00

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Pico SE018 PT100 Air Probe High Temperature, 1 m	Pico SE011 PT100 probe, general purpose, 2 m	Pico SE012 PT100 probe, 1/10 DIN accuracy, 2 m	Pico SE014 PT100 probe, immersion, 1 m	Pico SE015 PT100 Insertion Probe, 1 m	Pico SE016 PT100 Insertion Probe Heavy Duty, 1 m	Pico SE017 PT100 Air Probe Fast Response, 1 m	Pico SE019 PT100 probe, low cost, 1 m	Pico SE041 PT100 probe, high-temperature stainless steel braided cable, 2 m
Price
In Stock
Max Temperature	500 C	350 C	250 C	250 C	250 C	500 C	250 C		500 C
Min Temperature	-60 C (-76 F)	-30 C (-22 F)	-50 C (-58 F)	-75 C (-103 F)	-75 C (-103 F)	-60 F	-75 C (-103 F)		-60 C (-76 F)
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Pico SE018 PT100 Air Probe High Temperature, 1m

The SE018 is a wide temperature range platinum resistance thermometer probe for measuring air temperature.

These PT100 sensors are supplied with connectors ready for use with the Pico PT-104. For use with other PT100 measuring devices the connector may have to be removed. PT100 sensors to interface direct to the Pico PT-104 4-channel Pt100 temperature data acquisition unit. Stainless steel probe. 4 pin miniDIN connector (fitted).

Specifications
Model	SE018 PT100 Probe
Temperature range	–60 to +500 °C
Accuracy	±0.3 °C @ 0 °C Class B
Dimensions Length Diameter Cable	150 mm 4 mm 1 m coiled
Material	Stainless steel probe, PVC cable
Handle	Yes
Connector	4-pin mini-DIN

Tech Specs

Accessories/Probes/Temperature Probes Template
Application/Properties	Gas/Air
Max Temperature	500 C
Min Temperature	-60 C (-76 F)
Temperature Probe Types	PT100 RTD
Wire Termination	Other Wire Termination 4-pin mini-DIN
Insulation Material	PVC, Stainless Steel
Probe Length	5.9 IN
Lead Length	78.74 IN (25.40 MM)
Test Equipment General Attributes
Product Length	5.91 IN
HTS/Schedule B Number	90279000
Country of Origin	United Kingdom
