Pico SE012 PT100 Probe, 1/10 DIN Accuracy, 2m

Name: Pico SE012 PT100 Probe, 1/10 DIN Accuracy, 2m
Brand: Pico
SKU: PicoSE012
Price: 95.00 USD
Availability: InStock

0 reviews | Catalog: SE012 | Model: Pico SE012

Compare

PT100 probe, 1/10 DIN accuracy, 2 m

Tenth-DIN High-Precision Platinum Resistance Thermometer Probe
For use when accuracy down to ±0.03 °C is required

View Product Details

Your Price: $95.00

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Pico SE012 PT100 probe, 1/10 DIN accuracy, 2 m	Pico SE011 PT100 probe, general purpose, 2 m	Pico SE014 PT100 probe, immersion, 1 m	Pico SE015 PT100 Insertion Probe, 1 m	Pico SE016 PT100 Insertion Probe Heavy Duty, 1 m	Pico SE017 PT100 Air Probe Fast Response, 1 m	Pico SE019 PT100 probe, low cost, 1 m	Pico SE018 PT100 Air Probe High Temperature, 1 m	Pico SE041 PT100 probe, high-temperature stainless steel braided cable, 2 m
Price
In Stock
Max Temperature	250 C	350 C	250 C	250 C	500 C	250 C		500 C	500 C
Min Temperature	-50 C (-58 F)	-30 C (-22 F)	-75 C (-103 F)	-75 C (-103 F)	-60 F	-75 C (-103 F)		-60 C (-76 F)	-60 C (-76 F)
Temperature Probe Types	PT100 RTD	PT100 RTD	PT100 RTD	PT100 RTD	PT100 RTD	PT100 RTD		PT100 RTD	PT100 RTD
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Pico SE012 PT100 Probe, 1/10 DIN Accuracy, 2m

PT100 Sensors

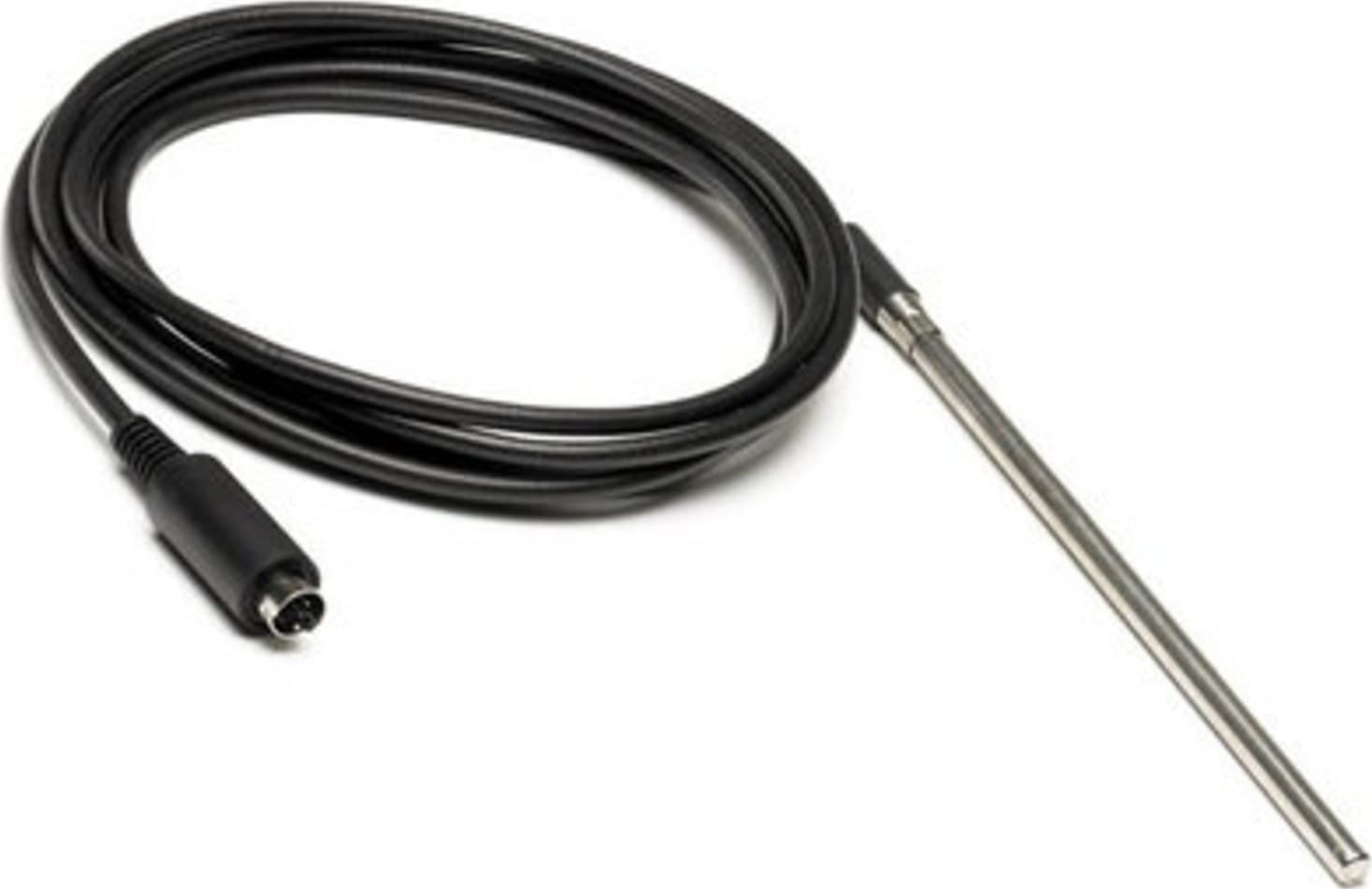

The SE012 is a tenth-DIN high-precision platinum resistance thermometer probe for use when accuracy down to ±0.03 °C is required.

These PT100 sensors are supplied with connectors ready for use with the Pico PT-104. For use with other PT100 measuring devices the connector may have to be removed. PT100 sensors to interface direct to the Pico PT-104 4-channel Pt100 temperature data acquisition unit. Stainless steel probe. 4 pin miniDIN connector (fitted).

Specifications
Model	SE012 PT100 Probe
Temperature range	–50 to +250 °C
Accuracy	±0.03 °C @ 0 °C Tenth-DIN
Dimensions Length Diameter Cable	150 mm 4 mm 2 m
Material	Stainless steel probe, PTFE cable
Handle	No
Connector	4-pin mini-DIN

Tech Specs

Accessories/Probes/Temperature Probes Template
Max Temperature	250 C
Min Temperature	-50 C (-58 F)
Temperature Probe Types	PT100 RTD
Wire Termination	Other Wire Termination 4-pin mini-DIN
Insulation Material	Stainless Steel
Probe Length	5.9 IN
Lead Length	78.7 IN (25.40 MM)
Test Equipment General Attributes
Product Length	5.91 IN
HTS/Schedule B Number	90279000
Country of Origin	United Kingdom
