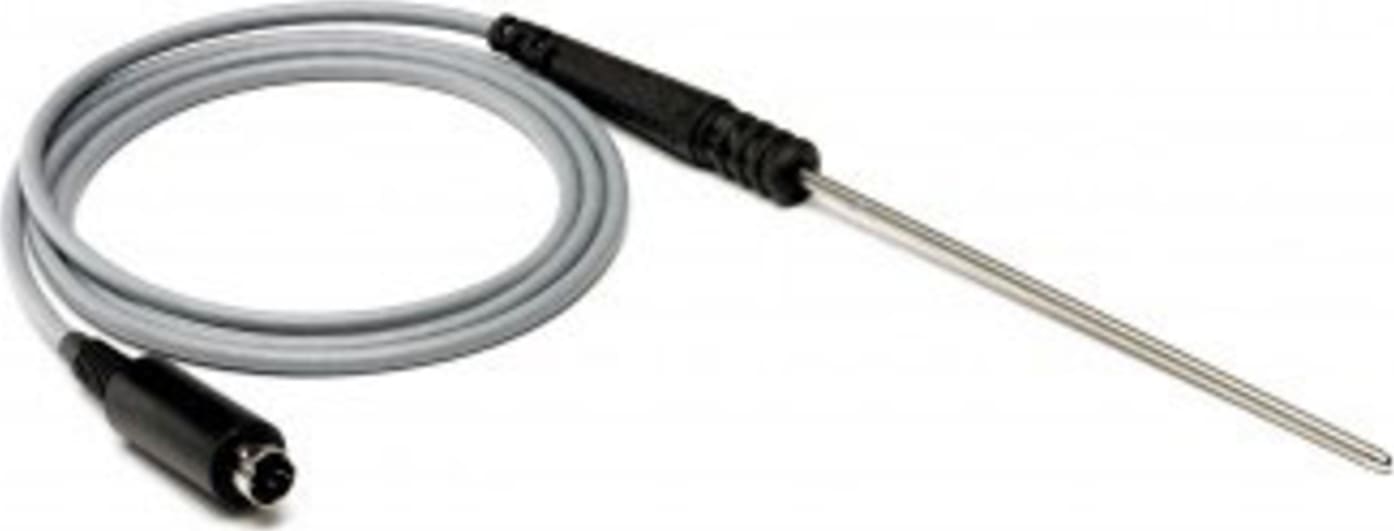

Pico SE011 PT100 Probe, General Purpose, 2 m

Name: Pico SE011 PT100 Probe, General Purpose, 2 m
Brand: Pico
SKU: PicoSE011
Price: 47.00 USD
Availability: InStock

0 reviews | Catalog: SE011 | Model: Pico SE011

Compare

PT100 probe, general purpose, 2 m

A low-cost platinum resistance thermometer probe
Can be used in non-specialized temperature
Measurements in immersion, air and insertion applications

View Product Details

Your Price: $47.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Pico SE011 PT100 probe, general purpose, 2 m	Pico SE012 PT100 probe, 1/10 DIN accuracy, 2 m	Pico SE014 PT100 probe, immersion, 1 m	Pico SE015 PT100 Insertion Probe, 1 m	Pico SE016 PT100 Insertion Probe Heavy Duty, 1 m	Pico SE017 PT100 Air Probe Fast Response, 1 m	Pico SE019 PT100 probe, low cost, 1 m	Pico SE018 PT100 Air Probe High Temperature, 1 m	Pico SE041 PT100 probe, high-temperature stainless steel braided cable, 2 m
Price
In Stock
Max Temperature	350 C	250 C	250 C	250 C	500 C	250 C		500 C	500 C
Min Temperature	-30 C (-22 F)	-50 C (-58 F)	-75 C (-103 F)	-75 C (-103 F)	-60 F	-75 C (-103 F)		-60 C (-76 F)	-60 C (-76 F)
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Pico SE011 PT100 Probe, General Purpose, 2 m

The SE011 is a low-cost platinum resistance thermometer probe that can be used in non-specialized temperature measurements in immersion, air and insertion applications.

PT100 Sensors

These PT100 sensors are supplied with connectors ready for use with the Pico PT-104. For use with other PT100 measuring devices the connector may have to be removed.

PT100 sensors to interface direct to the Pico PT-104 4-channel Pt100 temperature data acquisition unit. Stainless steel probe. 4 pin miniDIN connector (fitted).

Specifications
Model	SE011 PT100 Probe
Temperature range	–30 to +350 °C
Accuracy	±0.15 °C @ 0 °C Class A
Dimensions Length Diameter Cable	150 mm 6 mm 2 m
Material	Stainless steel probe, PVC cable
Handle	No
Connector	4-pin mini-DIN

Accessories/Probes/Temperature Probes Template
Application/Properties	General
Max Temperature	350 C
Min Temperature	-30 C (-22 F)
Temperature Probe Types	PT100 RTD
Insulation Material	PVC, Stainless Steel
Probe Length	5.9 IN
Lead Length	78.7 IN (25.40 MM)
Test Equipment General Attributes
Product Length	5.91 IN
HTS/Schedule B Number	90279000
Country of Origin	United Kingdom
