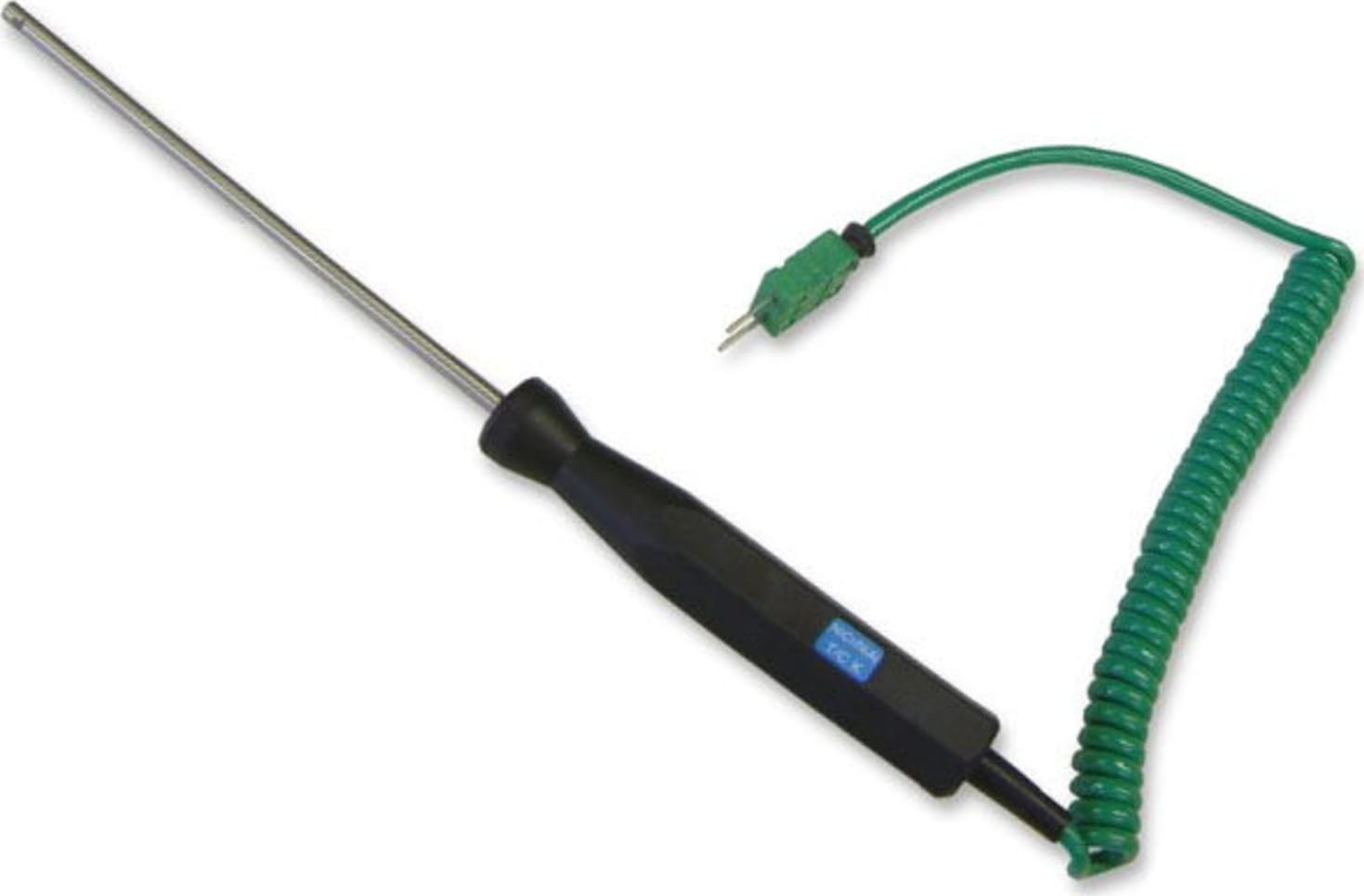

Pico SE002 Type K Thermocouple (Air Probe)

Name: Pico SE002 Type K Thermocouple (Air Probe)
Brand: Pico
SKU: PicoSE002
Price: 57.00 USD
Availability: InStock

0 reviews | Catalog: SE002 | Model: Pico SE002

Compare

Thermocouple type K, air probe, 4.5 mm tip

K-type Air Probe Thermocouple (Steel)
Designed for measuring ambient air temperature

View Product Details

Your Price: $57.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Pico SE002 Thermocouple type K, air probe, 4.5 mm tip	Pico SE000 Thermocouple type K, exposed tip, PTFE insulated, 1 m	Pico SE001 Thermocouple type K, exposed tip, fiberglass insulated, 1 m	Pico SE027 Thermocouple type K, exposed tip, PTFE insulated, 2 m	Pico SE028 Thermocouple type K, exposed tip, PTFE insulated, 3 m	Pico SE030 Thermocouple type K, exposed tip, fiberglass insulated, 2 m	Pico SE031 Thermocouple type K, exposed tip, glass fiber insulated, 5 m	Pico SE029 Thermocouple type K, exposed tip, PTFE insulated, 10 m	Pico SE003 Thermocouple type K, insertion probe, 3.3 mm tip	Pico SE004 Thermocouple type K, ribbon surface probe, 8 mm tip
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Thermocouple type K, air, 4.5 mm tip

This Thermocouple Probe is designed for measuring ambient air temperature.

Pico Technology offers a range of popular type K thermocouples for use with the TC-08 thermocouple data logger and other suitable temperature measuring devices.

Upon request Pico can also supply type J, K and T thermocouples up to 10m in length. These are exposed wire thermocouples, with a choice of a PTFE or fibreglass cable.

Specifications
Model	SE002 Sensor Characteristics
Tip Diameter	4.5 mm
Tip Temperature	–50 to +250 °C
Probe Length	120 mm
Configuration	Exposed Thermocouple
Base, Noble and Refractory Metal Type	K
Element Configuration Single	Element
Sensed Temperature	-58 to 482 F (-50 to 250 C)
Probe Specifications
Probe Configuration	Straight Probe
Diameter or Width Range	0.1772 inch (4.5 mm)
Sensitive Length	4.72 inch (120 mm)
Sensor Termination Type	Plug or Quick Connect
