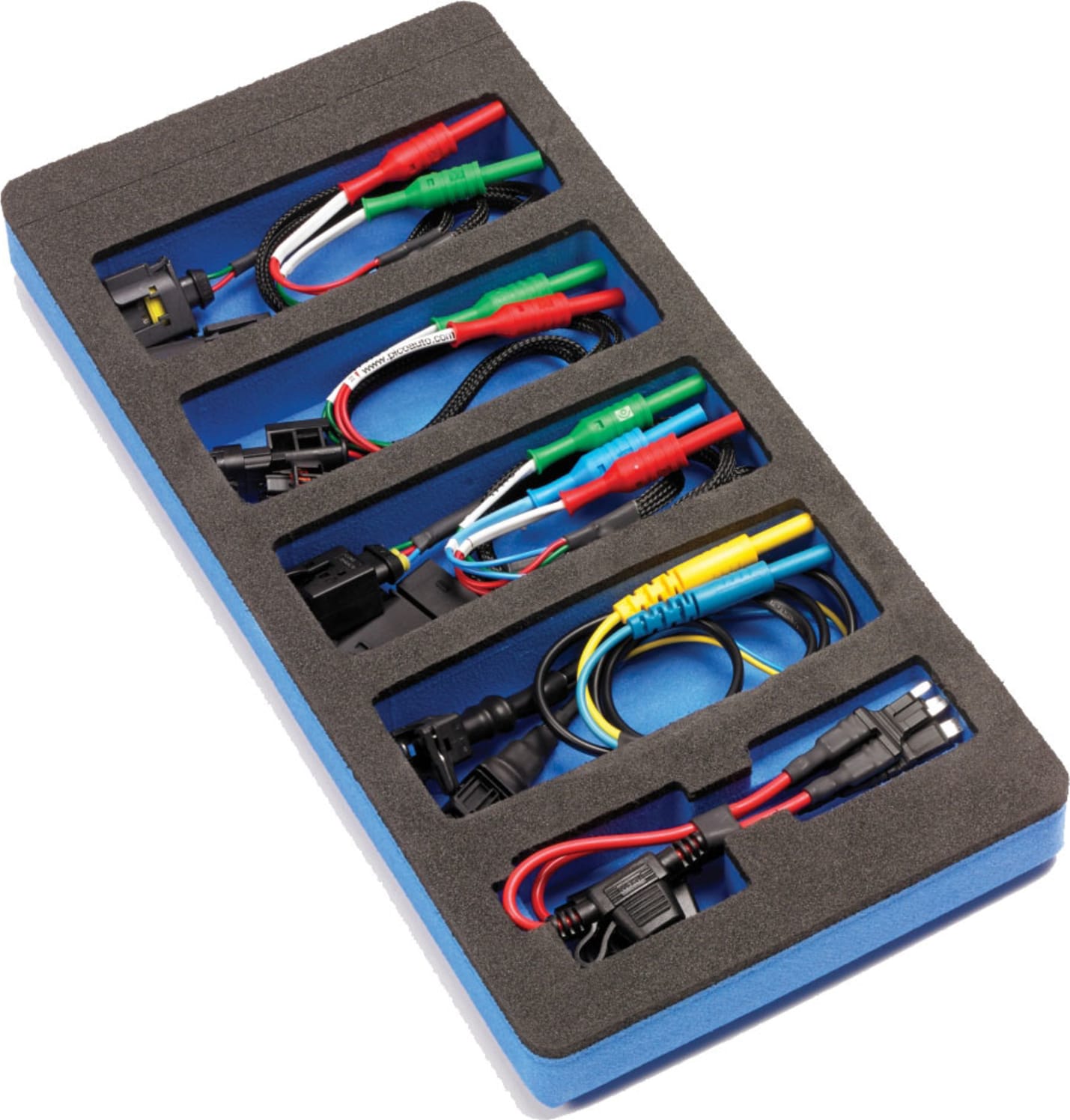

Pico PQ022 Connector Breakout Lead Kit B in Foam

This kit includes Pico connector breakout leads for four of the more common connectors used on Volkswagen, AUDI and other manufacturers' engines.

• TA190 2-pin ACS breakout lead
• TA191 3-pin Kostal breakout lead
• TA194 2-pin Kostal breakout lead
• TA267 3-pin AMP superseal breakout lead

This connector breakout lead enables you to take voltage readings from the numerous sensors and actuators in the engine compartment. Simply connect the breakout lead into the existing cable loom, and then take the output signal from the 4 mm banana plugs into the automotive oscilloscope using one of the TA125 to TA128 premium test leads. The breakout cable gives access to the individual wires to allow probing with current clamps. For example, this allows both injector current and injector voltage to be captured.

Note: The test lead is required to convert the 4 mm banana plug connection on the connector breakout leads to a BNC connector suitable for plugging into the PicoScope.
