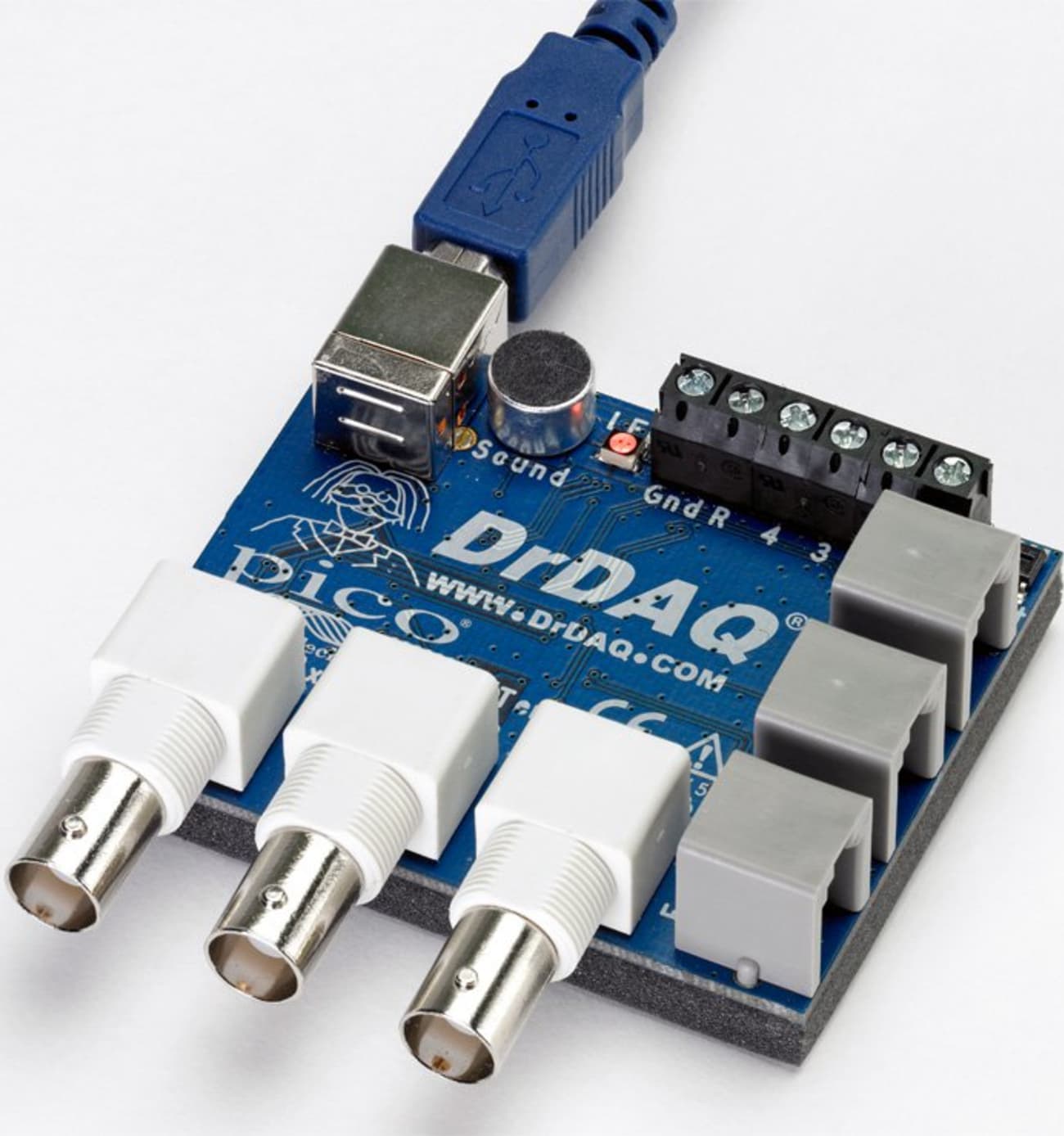

| Bandwidth |
100 kHz |
| Resolution |
8 bits |
| Input characteristics |
1 MΩ |
| Input type |
Single-ended, BNC connector |
| Input coupling |
DC |
| Input ranges (full scale) |
±1.25 V, ±2.5 V, ±5 V, ±10 V |
| DC accuracy |
±3% |
| Timebases |
10 µs/div to 5000 s/div |
| Function generator/arbitrary waveform generator (AWG) |
| Channels |
1 |
| Connector |
BNC |
| Standard waveforms |
Sine, square, triangle, ramp (up/down), DC level |
| Function generator frequency range |
DC to 20 kHz |
| Signal amplitude |
±1.5 V |
| Signal offset |
±1.5 V |
| AWG buffer size |
4096 samples |
| AWG update rate |
2 MS/s (maximum) |
| AWG resolution |
10 bits |
| Channel |
Range |
Resolution |
Accuracy |
| Sound waveform |
±100 |
±0.2 |
not calibrated |
| Sound level |
55 to 100 dBA |
1 dBA |
5 dBA |
| Temperature |
-10 to +70 °C |
0.1 °C @ 25 °C |
2 °C @ 25 °C |
| Light |
0 to 100 |
0.1 |
not calibrated |
| RGB LED |
16.7 million colours |
8 bit x 3 |
not applicable |
| Type |
Connector |
Range |
Resolution |
Accuracy |
| pH |
BNC |
0 to 14 pH |
0.02 pH |
Sensor calibration dependent |
| Redox/ORP |
BNC (shared with pH) |
±2000 mV @ 1012 Ω |
1.2 mV |
Sensor calibration dependent |
| Resistance |
Screw terminal |
0 to 1 MΩ |
250 Ω @ 10 k |
5% |
| External sensors |
3 x FCC68 4/4 |
Measure 0 to 2.5 V
(Also supply power to external sensors and identify sensor type via ID resistor.) |
1 mV |
1% |
| Configurable digital IO |
| Channels |
4 |
| Connector type |
Screw terminals |
| Input characteristics |
0 to 5 V (Low:0- 0.8 V, High: 2 -5.5 V)
TTL compatible |
| Output characteristics |
3.3 V, 2.2 kΩ output impedance |
PWM output
Period
Pulse
Resolution |
<65535 µs
<65535 µs
1 µs
Available on 2 Digital IO channels |
| Pulse counting |
Up to 65535 counts @ 500 kHz
Available on 2 Digital IO channels |
| Dimensions |
77 x 70 x 23 mm (approx 3 x 2.7 x 0.9 in)
(includes BNC connectors) |
| Weight |
60 g (approx 2.1 oz) |
| Software |
| PicoLog for Windows |
PicoLog data acquisition software can collect up to 1 million samples. Features include:
Multiple views — view data as a graph, spreadsheet or text
Parameter scaling — convert raw data into standard engineering units
Math functions — use mathematical equations to calculate additional parameters
Alarm limits — program an alert if a parameter goes out of a specified range
IP networking — transfer measurements via a LAN or over the Internet
Operating systems supported: Microsoft Windows XP (SP3) to Windows 8.1 (stable software). |
| PicoScope 6 for Windows |
PicoScope 6 is your complete test and measurement lab in one application. Features include:
Capture modes: oscilloscope, spectrum and persistence.
Channel maths: calculate the sum, difference, product, inverse or create your own custom function using standard arithmetic, exponential and trigonometric functions.
Mask limiting testing: pass/fail, failure count, total count.
Serial Decoding: decode data from a serial bus such as I²C.
Automated measurements
Scope mode: AC RMS, true RMS, cycle time, DC average, duty cycle, falling rate, fall time, frequency, high pulse width, low pulse width, maximum, minimum, peak–to–peak, rise time and rising rate.
Spectrum mode: frequency at peak, amplitude at peak, average amplitude at peak, total power, total harmonic distortion (THD % and THD dB), total harmonic distortion plus noise (THD+N), spurious-free dynamic range (SFDR), signal+noise+distortion to signal+noise ratio (SINAD), signal to noise ratio (SNR) and intermodulation distortion (IMD).
Export data formats: comma separated values (CSV), tab delimited (TXT), Windows bitmap (BMP), graphics interchange format (GIF), portable network graphics (PNG), MATLAB 4 format (MAT).
Operating systems supported: Microsoft Windows XP (SP3) to Windows 8.1 (stable software), Linux and OS X for Mac (beta software). |
| Software development kit |
Includes drivers and example code for various programming languages including C, C++, Excel and LabVIEW. Download SDK |
| Language support |
Software
PicoLog
PicoScope 6 |
Full support for: English, Français, Deutsch
Menus and dialogs only for: Italiano, Español, Svenska
Full support for: English, Deutsch, Español, Français, Italiano
Menus and dialogs only for: 中文 (简体), 中文 (繁體), Čeština, Dansk, suomi, Ελληνικά, Magyar, 한국어, 日本語, Norsk, Polski, Português, română, Русский, Svenska, Türkçe |
Documentation
User’s guide
Programmer’s guide |
English
English |
| General |
| Additional hardware (supplied) |
USB 2.0 cable, user manuals, software CD-ROM |
| PC interface |
USB 2.0 (USB 1.1 and USB 3.0 compatible; USB 1.1 will result in reduced performance) |
| Power requirements |
Powered from USB port |
| Compliance |
European EMC and LVD standards
FCC Rules Part 15 Class A
RoHS compliant |
| Total satisfaction guarantee |
In the event that this product does not fully meet your requirements you can return it for an exchange or refund. To claim, the product must be returned in good condition within 14 days. |
| Warranty |
5 years |
