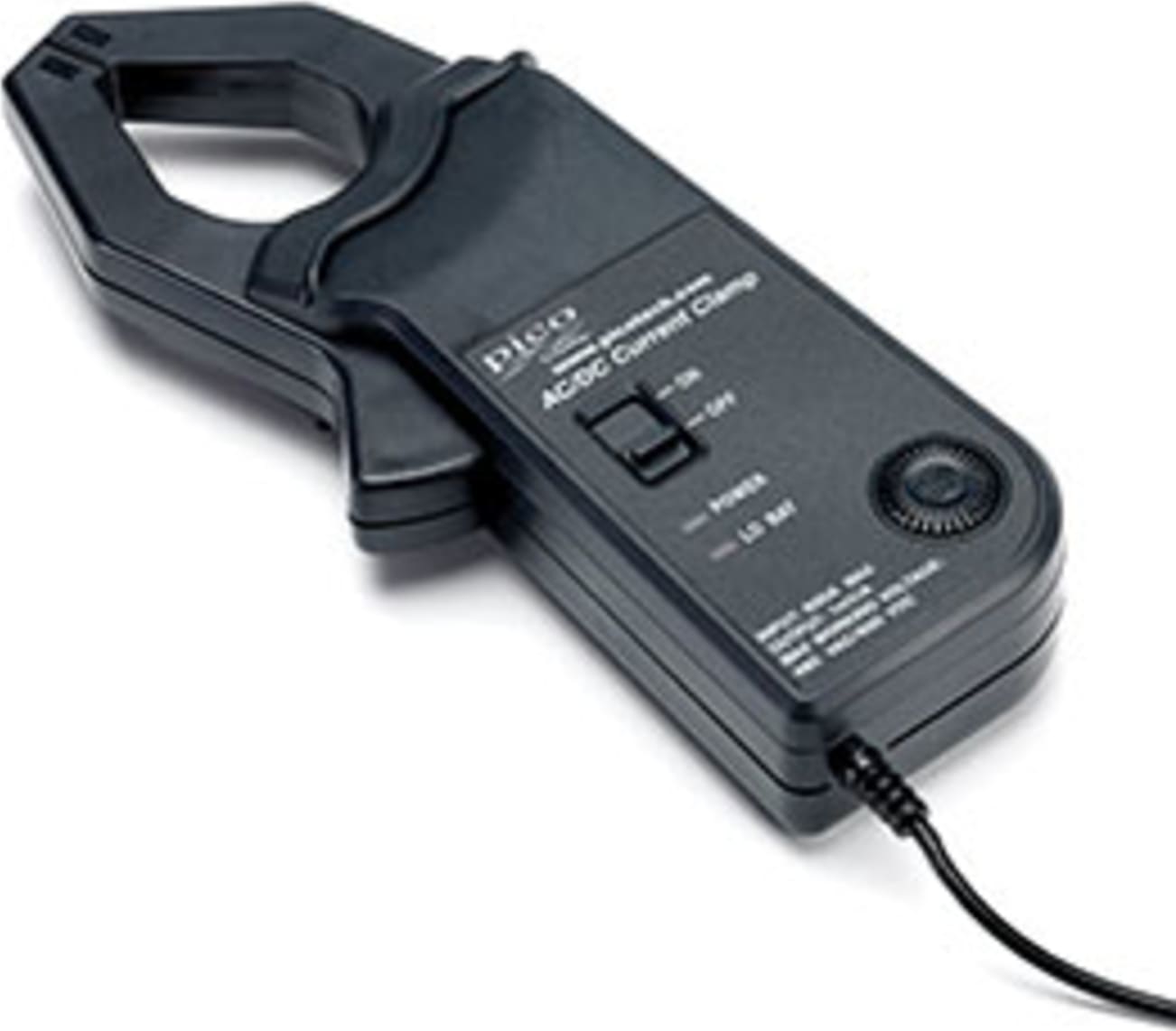

Pico MI077 600A AC/DC Current Probe, 4mm (banana) Plug Type Connector

Name: Pico MI077 600A AC/DC Current Probe, 4mm (banana) Plug Type Connector
Brand: Pico
SKU: PicoMI077
Price: 139.00 USD
Availability: InStock

0 reviews | Catalog: MI077 | Model: Pico MI077

Compare

600A AC/DC current probe with 4 mm connector

Two current ranges controlled by selector switch
Low–battery indicator
Zero offset button
4 mm (banana) plug type connectors

View Product Details

List Price: $139.00

In Stock:

View Payment Options

Recommended for you

Pico MI077 600A AC/DC Current Probe

Low–battery indicator
Zero offset button
4 mm (banana) plug type connectors
Two current ranges controlled by selector switch

This current probe is for use with instruments that have 4 mm (banana) plug type input connectors, however with the addition of an MI078 BNC to 4 mm adapter it is possible to plug directly into a BNC input.

MI077 Current Probe Characteristics
Accuracy	DC	0 to 600 A ± (2% reading +2 A)
	AC	0 to 300 A ± (2% reading +2 A)
	AC/DC	300 A to 500 A ± (3% reading +2 A)
	AC/DC	500 A to 600 A ± (6% reading +2 A)
AC frequency range		50 Hz to 400 Hz
Voltage output		1 mV per 1 A (0 to 600 mV AC & DC)
Max conductor size		30 mm
Output connectors		4 mm banana plugs
Operating environment		0 °C to 50 °C, 70% RH
Battery life		100 hours with carbon zinc
Battery type		9 V DC NEDA 1604, 6F22, 006P
Dimensions		178 mm x 70 mm x 33 mm
