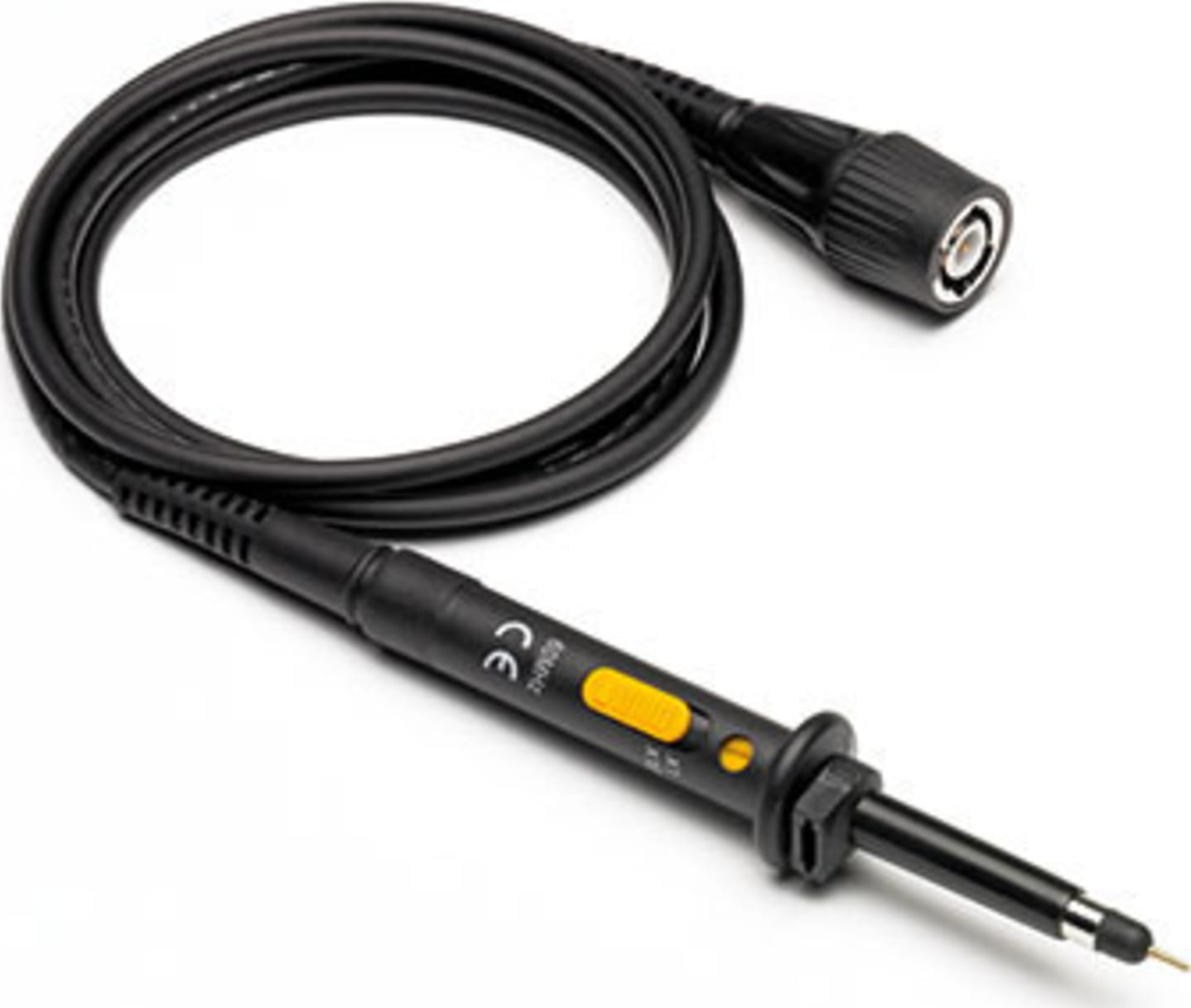

Pico MI007 Oscilloscope Probe 60 MHz x1/x10

The MI007 is a 60 MHz low-cost, general-purpose passive high-impedance oscilloscope probe designed for use with oscilloscopes. It is calibrated to work effectively with instruments that have an input impedance of 1 MΩ. A two-position slide switch on the probe handle allows the attenuation ratio to be switched between 10:1 and 1:1.

The probe is equipped with a basic accessory pack including a retractable hook tip, compensation adjustment tool, 2 locating sleeves, 6 marker rings and a ground lead.

Frequency Compensation

Before taking any measurements using a probe, first check the compensation of the probe and adjust it to match the channel inputs. Most oscilloscopes have a square wave reference signal available at a terminal on the front panel used to compensate the probe. Connect the probe to this terminal or another 2 V pk-pk, 1 kHz square wave source.. Set the probe to 10X position. Adjust trimmer until seeing flat-top square wave on the display.

Incorrect	Incorrect	Correct
Voltage vs Frequency Rating Curve

Accessories and Features

MI007 is provided with several accessories designed to make probing and measurement simpler. Please take a moment to familiarize yourself with these accessories and their uses.
