| TRIGGERING |
| Text |
text |
| Source |
Any channel |
| Trigger modes |
None, auto, repeat, single, rapid |
| Trigger types |
Edge, window, pulse width, window pulse width, dropout, window dropout, interval, runt pulse, logic |
| Trigger sensitivity |
Digital triggering provides up to 1 LSB accuracy up to full bandwidth |
| Maximum pre-trigger capture |
100% capture length |
| Maximum trigger time-delay |
4 billion samples |
| Trigger rearm time |
< 2 µs on fastest timebase |
| Maximum trigger rate |
10000 waveforms in a 12 ms burst |
| PROBE COMPENSATION PINS |
| Output level |
4 V peak |
| Output impedance |
610 Ω |
| Output waveforms |
Square wave |
| Output frequency |
1 kHz |
| Overvoltage protection |
±10 V |
| MATH CHANNELS |
| Functions |
−x, x+y, x−y, x*y, x/y, x^y, sqrt, exp, ln, log, abs, norm, sign, sin, cos, tan, arcsin, arccos, arctan, sinh, cosh, tanh, freq, derivative, integral, min, max, average, peak, delay, duty, highpass, lowpass, bandpass, bandstop |
| Operands |
A, B, C, D, T (time), reference waveforms, constants, pi |
| AUTOMATIC MEASUREMENTS |
| Scope mode |
AC RMS, true RMS, frequency, cycle time, duty cycle, DC average, edge count, falling edge count, rising edge count, falling rate, rising rate, low pulse width, high pulse width, fall time, rise time, minimum, maximum, peak to peak |
| Spectrum mode |
Frequency at peak, amplitude at peak, average amplitude at peak, total power, THD %, THD dB, THD+N, SFDR, SINAD, SNR, IMD |
| Statistics |
Minimum, maximum, average and standard deviation |
| SERIAL DECODING |
| Protocols |
1-Wire, ARINC 429, CAN, CAN FD, DCC, DMX512, Ethernet 10Base-T, FlexRay, I²C, I²S, LIN, PS/2, SENT, SPI, UART (RS-232 / RS-422 / RS-485), USB 1.0/1.1 |
| MASK LIMIT TESTING |
| Statistics |
Pass/fail, failure count, total count |
| SDK/API DETAILS AND SPECIFICATIONS FOR USERS WRITING THEIR OWN SOFTWARE (see “HORIZONTAL” above for details when using PicoScope 6 software) |
| Supplied drivers |
32- and 64-bit drivers for Windows 7, 8 and 10
Linux drivers
Mac OS X drivers |
| Example code |
C, C#, Excel VBA, VB.NET, LabVIEW, MATLAB |
| Maximum sampling rate (USB streaming) |
50 MS/s |
| Capture memory (USB streaming) |
Up to available PC memory |
| Segmented memory buffers |
> 1 million |

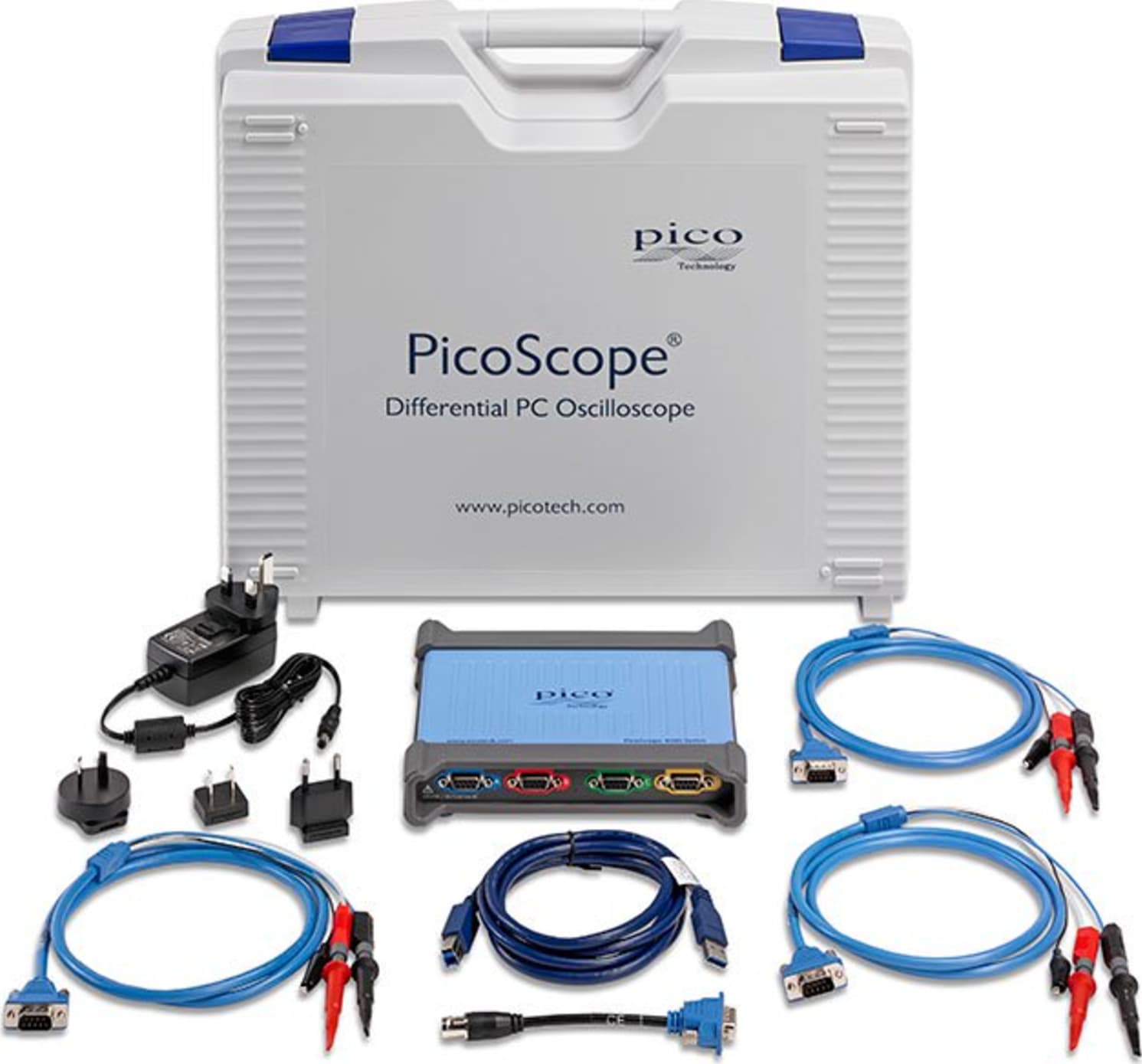

| General Specifications |
| Connectivity |
USB 3.0, USB 2.0 |
| Device connector type |
USB 3.0, Type B |
| Power requirements |
USB port or external DC PSU, depending on connected accessories |
| Dimensions |
190 x 170 x 40 mm including connectors |
| Weight |
< 0.5 kg |
| Temperature range, operating |
0 °C to 45 °C |
| Temperature range, operating, for quoted accuracy |
15 °C to 30 °C |
| Temperature range, storage |
–20 °C to 60 °C |
| Humidity range, operating |
5% to 80% RH non-condensing |
| Humidity range, storage |
5% to 95% RH non-condensing |
| Altitude |
Up to 2000 m |
| Pollution degree |
Pollution degree 2 |
| Safety approvals |
Designed to EN 61010-1:2010 |
| EMC approvals |
Tested to EN 61326-1:2013 and FCC Part 15 Subpart B |
| Environmental approvals |
RoHS and WEEE compliant |
| Software |
PicoScope 6, Linux drivers, Windows SDK and example programs |
| PC requirements |
Windows 7, 8 or 10, 32-bit or 64-bit.
Hardware requirements as operating system. |
